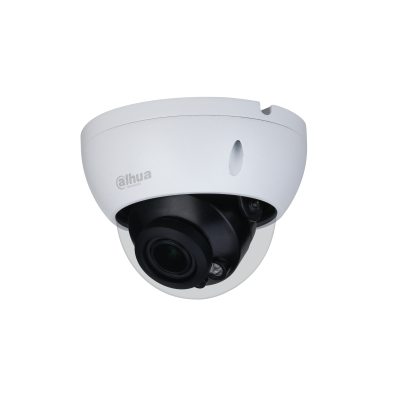

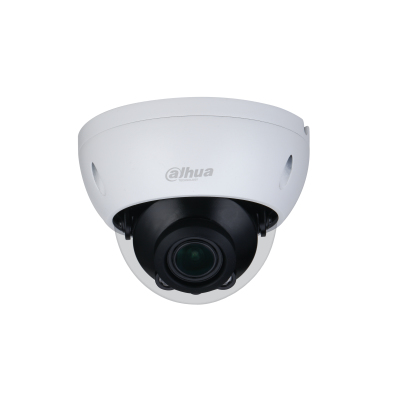

Dahua Technology Pro DH-HAC-HDBW2501RN-Z security camera Dome CCTV security camera Indoor & outdoor
Dahua Technology

Pro DH-HAC-HDBW2501RN-Z security camera Dome CCTV security camera Indoor & outdoor

2592 x 1944 pixels Ceiling/wall

Model DH-HAC-HDBW2501RN-Z

54 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight460 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
460 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDBW2501RN-Z
Part number
DH-HAC-HDBW2501RN-Z
Also known as
Dahua Technology Pro DH-HAC-HDBW2501RN-Z security camera Dome CCTV security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall

Specifications

54 specifications in 13 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation355°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/4s - 1/100000

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Detect distance222 m
Observe distance89 m
Recognize distance44 m
Focal length range2.7 - 13.5 mm
FocusMotorized/Manual
Identify distance22 m
Maximum aperture number1.3

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Frame rate30 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Power

Power source typeDC
Power consumption (typical)8.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight460 g

Packaging data

Package weight630 g

Packaging content

Number of cameras1
