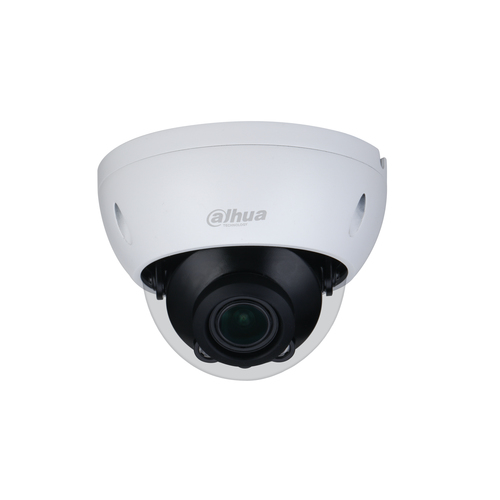

Pro DH-HAC-HDBW2501R-Z security camera Dome IP security camera Indoor & outdoor
2880 x 1620 pixels Ceiling/wall
Model DH-HAC-HDBW2501R-Z
45 specifications
- ConnectivityWired
- TypeIP security camera
- Weight470 g
- ColourBlack, White
- Form factorDome
- Angle of rotation355°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 470 g
- Colour
- Black, White
- Form factor
- Dome
- Angle of rotation
- 355°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDBW2501R-Z
- Part number
- DH-HAC-HDBW2501R-Z
- Also known as
- Dahua Technology Pro DH-HAC-HDBW2501R-Z security camera Dome IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall
Specifications
45 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 355° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 4x |
| Focal length range | 2.7 - 13.5 mm |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.8 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Frame rate | 30 fps |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 6.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 88.9 mm |
| Diameter | 12.2 cm |
| Weight | 470 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 640 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
