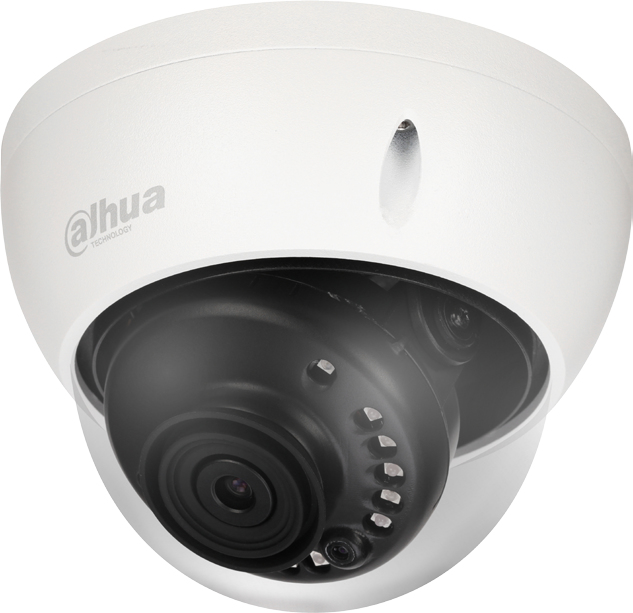

Dahua Technology Pro DH-HAC-HDBW2501E Dome CCTV security camera Outdoor
Dahua Technology

Pro DH-HAC-HDBW2501E Dome CCTV security camera Outdoor

2592 x 1944 pixels Ceiling/wall

Model DH-HAC-HDBW2501EPart no. HAC-HDBW2501E

55 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight330 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
330 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDBW2501E
Part number
HAC-HDBW2501E
Also known as
Dahua Technology Pro DH-HAC-HDBW2501E Dome CCTV security camera Outdoor 2592 x 1944 pixels Ceiling/wall

Specifications

55 specifications in 15 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation355°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Number of lenses1
Maximum aperture number1.6

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs12

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)5.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height81 mm
Diameter11 cm
Weight330 g

Packaging data

Package weight450 g

Packaging content

Number of cameras1
