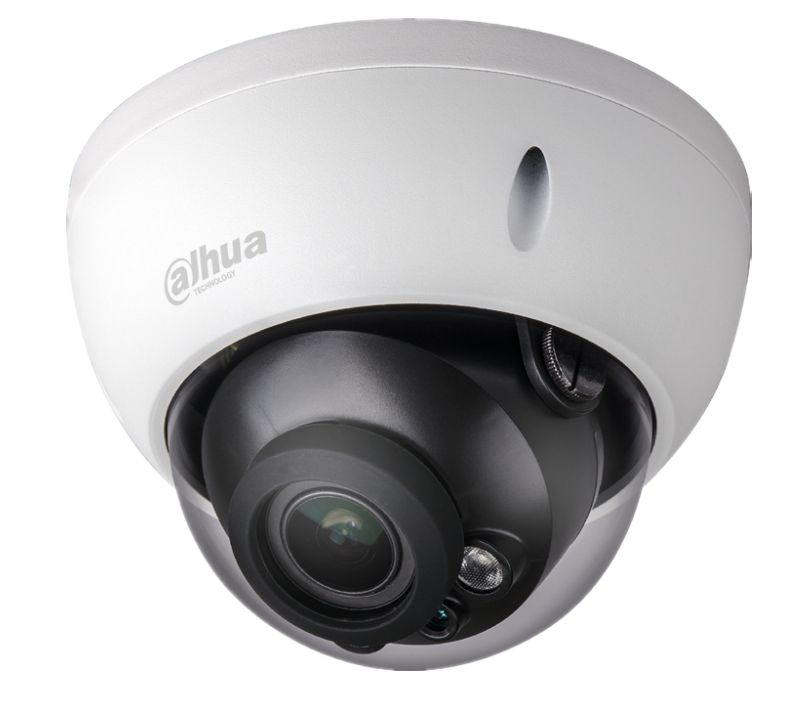

Dahua Technology Pro DH-HAC-HDBW2401R-Z-DP security camera Dome CCTV security camera Indoor & outdoor
Dahua Technology

Pro DH-HAC-HDBW2401R-Z-DP security camera Dome CCTV security camera Indoor & outdoor

2560 x 1440 pixels Ceiling

Model DH-HAC-HDBW2401R-Z-DP

65 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight480 g
  • ColourBlack, White
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
480 g
Colour
Black, White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDBW2401R-Z-DP
Part number
DH-HAC-HDBW2401R-Z-DP
Also known as
Dahua Technology Pro DH-HAC-HDBW2401R-Z-DP security camera Dome CCTV security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Specifications

65 specifications in 14 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Languages supportMulti
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.01 lx
Angle of rotation355°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Detect distance64 m
Observe distance26 m
Recognize distance13 m
Focal length range2.7 - 13.5 mm
Identify distance6 m
Minimum aperture number1.3

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Supported graphics resolutions1920 x 1080 (HD 1080), 2560 x 1440
Supported video modes1080p, 1440p
Frame rate25 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Network

Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1
DC-in jackYes

Power

Power source typeAC, DC
AC input voltage24 V
Power consumption (max)10.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight480 g

Packaging data

Package weight630 g
Package typeBox

Packaging content

Number of cameras1
