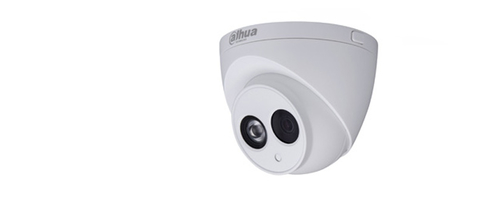

Dahua Technology DH-HAC-HDBW22A1EN Dome CCTV security camera Outdoor

Dahua Technology DH-HAC-HDBW22A1EN Dome CCTV security camera Outdoor

1920 x 1080 pixels Ceiling

Model DH-HAC-HDBW22A1ENPart no. DH-HAC-HDBW22A1EN-2.8MM

53 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight300 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.03 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
300 g
Colour
White
Form factor
Dome
Minimum illumination
0.03 lx
Brand
Dahua Technology
Model
DH-HAC-HDBW22A1EN
Part numbers
DH-HAC-HDBW22A1EN-2.8MM, DH-HAC-HDBW22A1EN-3.6MM, DH-HAC-HDBW22A1EN-6MM
Also known as
Dahua Technology DH-HAC-HDBW22A1EN Dome CCTV security camera Outdoor 1920 x 1080 pixels Ceiling

Specifications

53 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationFCC, UL

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67

Camera

Minimum illumination0.03 lx
Angle of rotation355°
Lens viewing angle, horizontal115.6°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto
Camera shutter speed1/3 - 1/300000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Maximum aperture number2
Fixed focal length2.8 mm
Normal focusing range0.06 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs30

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Supported video modes720p, 1080p
Frame rate30 fps
Noise reductionYes
Automatic gain controlYes
Full HDYes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Network

Ethernet LANNo
Wi-FiNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports2
InterfaceBNC

Power

Power consumption (max)4.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height81 mm
Diameter11 cm
Weight300 g

Packaging data

Package weight430 g

Packaging content

Number of cameras1
