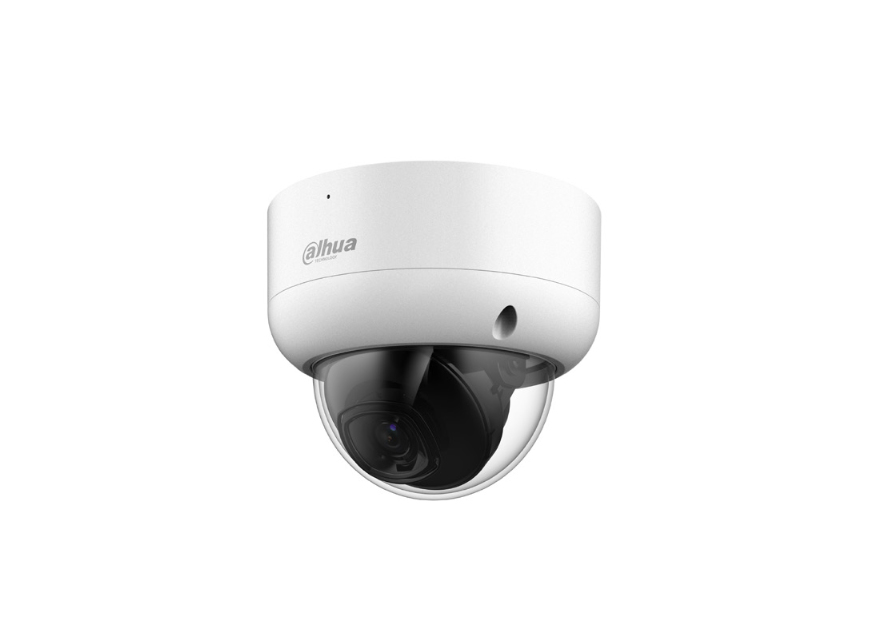

DH-HAC -HDBW2241EAN-A security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model DH-HAC-HDBW2241EAN-A
48 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight330 g
- ColourBlack, White
- Form factorDome
- Angle of rotation355°
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 330 g
- Colour
- Black, White
- Form factor
- Dome
- Angle of rotation
- 355°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDBW2241EAN-A
- Part number
- DH-HAC-HDBW2241EAN-A
- Also known as
- Dahua Technology DH-HAC -HDBW2241EAN-A security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
48 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 130 dB |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 355° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Number of illumination LEDs | 3 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3.1 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 89.1 mm |
| Diameter | 11.2 cm |
| Weight | 330 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 470 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
