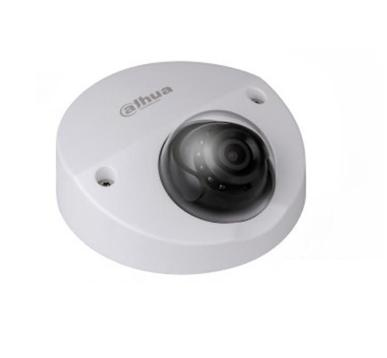

Lite DH-HAC-HDBW2221F Cube CCTV security camera Indoor & outdoor Ceiling/wall
Model DH-HAC-HDBW2221FPart no. HAC-HDBW2221FP-0280BEAN 6939554905742
50 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight3 kg
- ColourWhite
- Form factorCube
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 3 kg
- Colour
- White
- Form factor
- Cube
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDBW2221F
- Part numbers
- HAC-HDBW2221FP-0280B, HAC-HDBW2221FP-0360B, DH-HAC-HDBW2221F
- EAN / UPC
- 6939554905742, 6939554908972
- Also known as
- Dahua Technology Lite DH-HAC-HDBW2221F Cube CCTV security camera Indoor & outdoor Ceiling/wall
Specifications
50 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 500 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Dust resistant, Vandal proof, Water resistant |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 90° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/300000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of effective pixels (H x V) | 1928 x 1088 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Total megapixels | 2.1 MP |
| Supported video modes | 720p, 1080p |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106.3 mm |
| Depth | 106.3 mm |
| Height | 50.3 mm |
| Weight | 3 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
