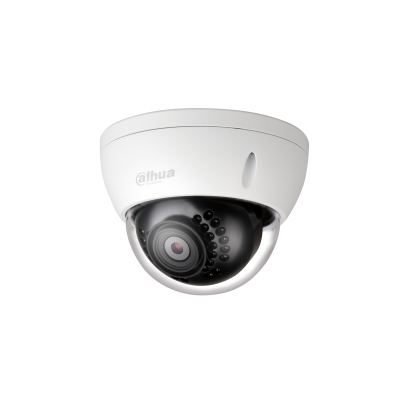

Dahua Technology Lite DH-HAC-HDBW1200E Dome CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HDBW1200E Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-HAC-HDBW1200EPart no. DHECAMAC004

64 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight310 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
310 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDBW1200E
Part number
DHECAMAC004
Also known as
Dahua Technology Lite DH-HAC-HDBW1200E Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

64 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.02 lx
Field of view (FOV) angle87.5°
Angle of rotation355°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Fixed focusYes
Maximum aperture number1.85
Closest focusing distance0.5 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs12

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Frame rate30 fps
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)3.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height81 mm
Diameter11 cm
Weight310 g

Packaging data

Package weight450 g

Packaging content

Number of cameras1
