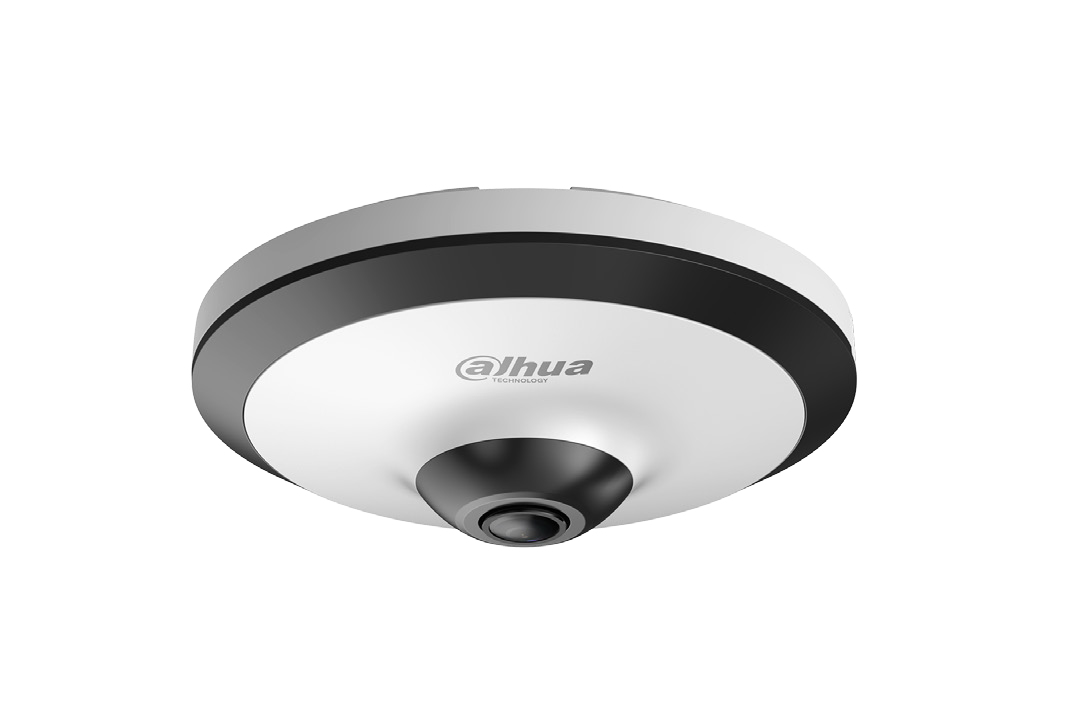

Pro DH-HAC-EW2501 Dome CCTV security camera Outdoor
2592 x 1944 pixels Ceiling/wall
Model DH-HAC-EW2501Part no. HAC-EW2501
59 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight240 g
- ColourBlack, White
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 240 g
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-EW2501
- Part number
- HAC-EW2501
- Also known as
- Dahua Technology Pro DH-HAC-EW2501 Dome CCTV security camera Outdoor 2592 x 1944 pixels Ceiling/wall
Specifications
59 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Aluminium, Plastic |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 180° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/4 - 1/100000, 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2592 x 1944 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 28 m |
| Recognize distance | 6 m |
| Identify distance | 3 m |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.2 m |
| Fixed focal length | 1.4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 3 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 7.3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 40.6 mm |
| Diameter | 12.6 cm |
| Weight | 240 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
