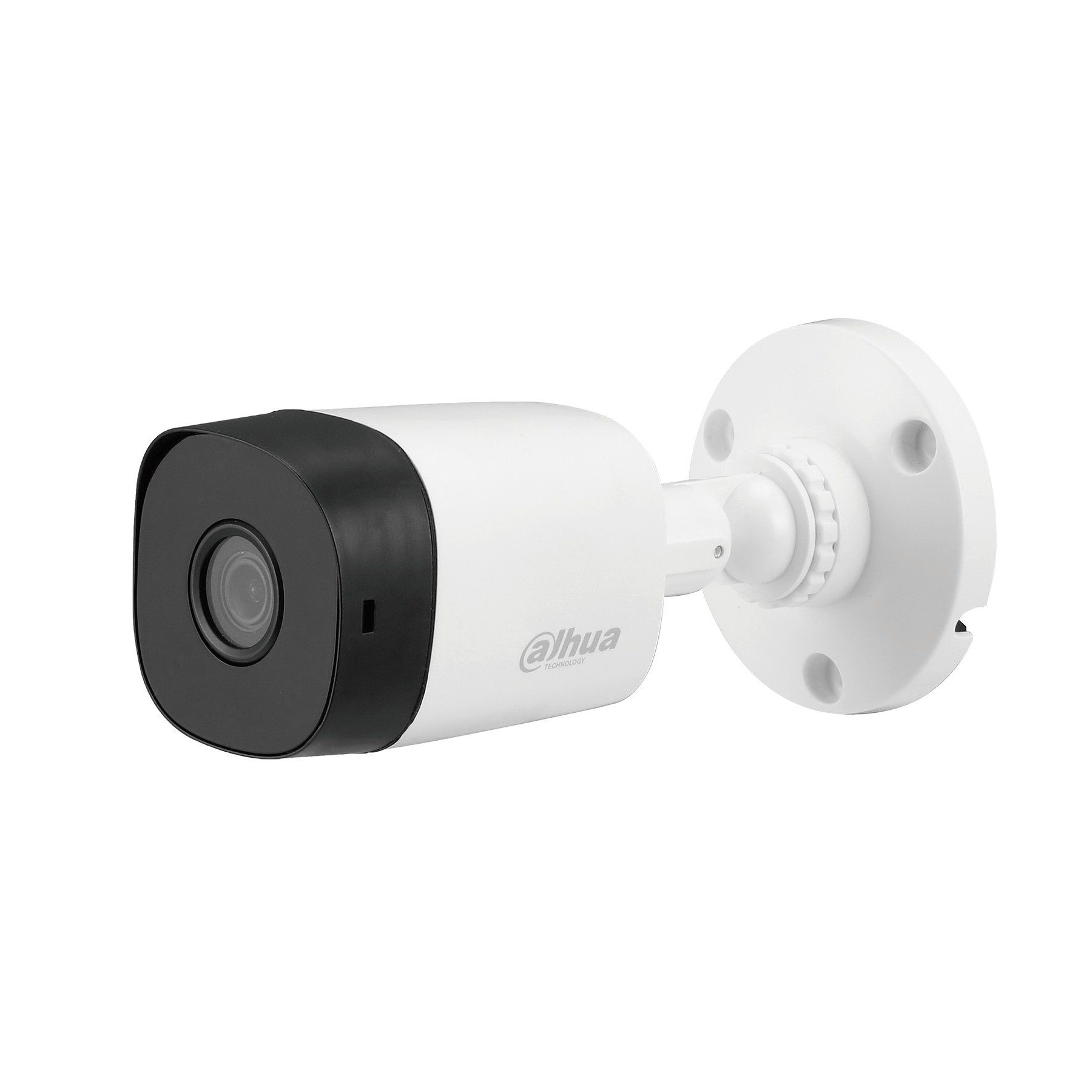

Cooper DH-HAC-B1A51 Bullet IP security camera Indoor & outdoor
2592 x 1944 pixels Wall/Pole
Model DH-HAC-B1A51Part no. DH-HAC-B1A51-0280
68 specifications
- ConnectivityWired
- TypeIP security camera
- Weight150 g
- ColourBlack, White
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 150 g
- Colour
- Black, White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-B1A51
- Part number
- DH-HAC-B1A51-0280
- Also known as
- Dahua Technology Cooper DH-HAC-B1A51 Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Wall/Pole
Specifications
68 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 700 m |
| Day/night mode | Yes |
| Languages support | Multi |
| Number of languages | 11 |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall/Pole |
| Product colour | Black, White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.04 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 93° |
| Lens viewing angle, vertical | 31.5° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 0.00001 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2592 x 1944 pixels |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 63 m |
| Observe distance | 25 m |
| Recognize distance | 13 m |
| Identify distance | 6 m |
| Maximum aperture number | 1.85 |
| Closest focusing distance | 11.4 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 149 mm |
| Height | 70 mm |
| Weight | 150 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 190 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
