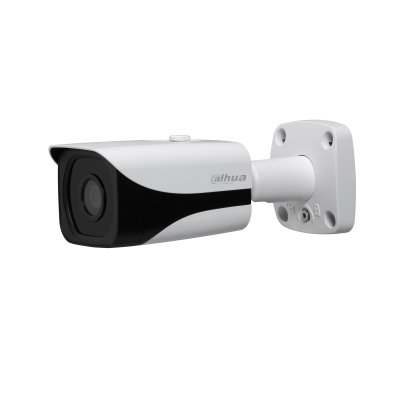

Dahua Technology 8MP WDR IR Mini Bullet Network Camera
Dahua Technology

8MP WDR IR Mini Bullet Network Camera

Model 8MP WDR IR Mini Bullet Network CameraPart no. IPC-HFW4831E-SE

82 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight410 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.06 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
410 g
Colour
White
Form factor
Bullet
Minimum illumination
0.06 lx
Brand
Dahua Technology
Model
8MP WDR IR Mini Bullet Network Camera
Part number
IPC-HFW4831E-SE
Also known as
Dahua Technology 8MP WDR IR Mini Bullet Network Camera IP security camera Outdoor 3840 x 2160 pixels Wall

Specifications

82 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorBullet
Mounting typeWall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.06 lx
Angle of rotation360°
Lens viewing angle, horizontal112°
Lens viewing angle, vertical69°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3(4)~1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.5 mm (1 / 2.5")
Progressive scanYes
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Number of lenses1
Digital zoom16x
Fixed focusYes
Maximum aperture number1.6
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3840 x 2160 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1920, 3072 x 2048, 3840 x 2160
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 24K ~ 10240Kbps, H.265: 14K ~ 9984Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, Easy4ip

Power

Power source typeDC, PoE
Power consumption (typical)6.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width70 mm
Height70 mm
Length180 mm
Weight410 g

Packaging data

Package weight530 g

Packaging content

Number of cameras1
