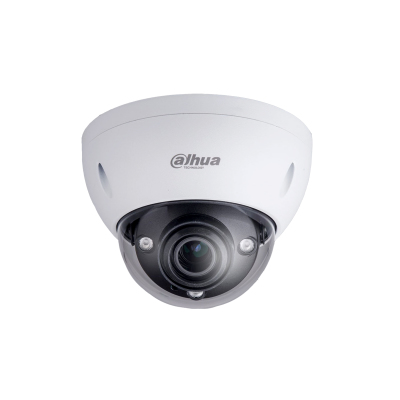

8MP HDCVI WDR IR-Dome Camera
Model 8MP HDCVI WDR IR-Dome CameraPart no. HAC-HDBW3802E-Z
60 specifications
- ConnectivityWired
- TypeIP security camera
- Weight900 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 900 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- 8MP HDCVI WDR IR-Dome Camera
- Part number
- HAC-HDBW3802E-Z
- Also known as
- Dahua Technology 8MP HDCVI WDR IR-Dome Camera IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Specifications
60 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Alarm input/output | Yes |
| Certification | CE FCC UL |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 112° |
| Tilt angle range | 0 - 85° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/1 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 3.7 - 11 mm |
| Auto focus | Yes |
| Focus | Motorized |
| Maximum aperture number | 1.5 |
| Closest focusing distance | 0.2 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 3 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction, Ultra 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 12.4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 117.9 mm |
| Diameter | 15.9 cm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
