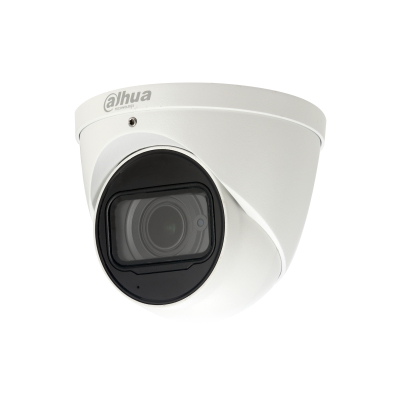

Dahua Technology 6MP WDR IR Eyeball Network Camera
Dahua Technology

6MP WDR IR Eyeball Network Camera

Model 6MP WDR IR Eyeball Network CameraPart no. IPC-HDW5631R-ZE

88 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight600 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
600 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
6MP WDR IR Eyeball Network Camera
Part number
IPC-HDW5631R-ZE
Also known as
Dahua Technology 6MP WDR IR Eyeball Network Camera Dome IP security camera Outdoor 3072 x 2048 pixels Ceiling

Specifications

88 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE UL FCC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.03 lx
Angle of rotation360°
Lens viewing angle, horizontal91°
Lens viewing angle, vertical58°
Tilt angle range0 - 78°
Pan range0 - 360°
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes
Number of effective pixels (H x V)3072 x 2048 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom5x
Digital zoom16x
Focal length range2.7 - 13.5 mm
Auto focusYes
FocusMotorized
Minimum aperture number1.6
Closest focusing distance0.3 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3072 x 2048 pixels
Total megapixels6 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions2592 x 1944, 3072 x 1728, 3072 x 2048
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.726
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Number of users10 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)8.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height104 mm
Diameter12.2 cm
Weight600 g

Packaging content

Number of cameras1
