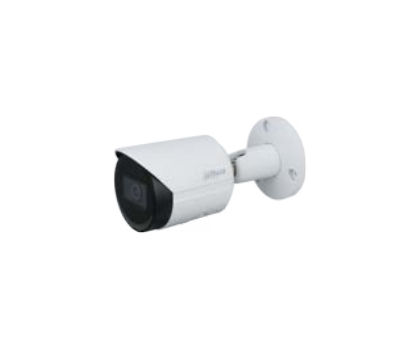

Lite 6939554979163 IP security camera Indoor & outdoor
1920 x 1080 pixels Wall
Model 6939554979163Part no. IPC-HFW2231S-S-0280B-S2EAN 6923172520166
64 specifications
- ConnectivityWired
- TypeIP security camera
- Weight480 g
- ColourWhite
- Mounting typeWall
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 480 g
- Colour
- White
- Mounting type
- Wall
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- 6939554979163
- Part number
- IPC-HFW2231S-S-0280B-S2
- EAN / UPC
- 6923172520166, 6939554979163
- Also known as
- Dahua Technology Lite 6939554979163 IP security camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
64 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.002 lx |
| Field of view (FOV) angle | 270° |
| Angle of rotation | 270° |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 126° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Daylight, Natural |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 38.6 m |
| Observe distance | 15.4 m |
| Recognize distance | 7.7 m |
| Lens diameter | 2.8 mm |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Detection distance | 30 m |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 4.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.7 mm |
| Depth | 166.2 mm |
| Height | 68.7 mm |
| Diameter | 7 cm |
| Weight | 480 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 570 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
