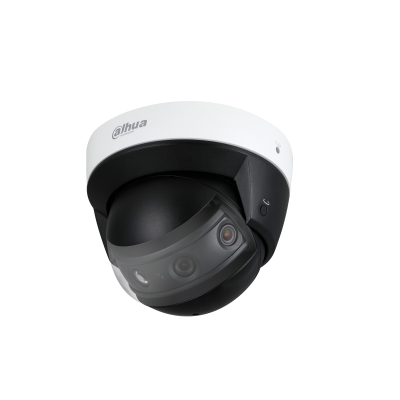

Dahua Technology 4x2MP Multi-Sensor Panoramic IR Dome Network Camera
Dahua Technology

4x2MP Multi-Sensor Panoramic IR Dome Network Camera

Model 4x2MP Multi-Sensor Panoramic IR Dome Network CameraPart no. IPC-PDBW8802-A180

81 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight3.6 kg
  • ColourBlack, White
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
3.6 kg
Colour
Black, White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
4x2MP Multi-Sensor Panoramic IR Dome Network Camera
Part number
IPC-PDBW8802-A180
Also known as
Dahua Technology 4x2MP Multi-Sensor Panoramic IR Dome Network Camera IP security camera Outdoor 4096 x 1800 pixels Ceiling

Specifications

81 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE UL FCC

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation40°
Lens viewing angle, horizontal180°
Lens viewing angle, vertical80°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors4
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)4096 x 1800 pixels

Lens system

Number of lenses4
Zoom capabilityYes
Digital zoom16x
Fixed focusYes
Maximum aperture number2.2
Fixed focal length5 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution4096 x 1800 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, MPEG
Frame rate25 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265: 9Kbps~ 9472KbpsH.264: 24Kbps~ 15616Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.726
Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeAC, PoE
AC input voltage24 V
Power consumption (typical)25.5 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height169.5 mm
Diameter21.2 cm
Weight3.6 kg

Packaging content

Number of cameras1
