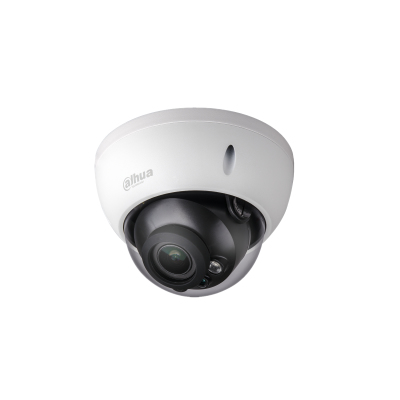

4MP HDCVI IR Dome Camera
Model 4MP HDCVI IR Dome CameraPart no. HAC-HDBW1400R-VF
60 specifications
- ConnectivityWired
- TypeIP security camera
- Weight390 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 390 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- 4MP HDCVI IR Dome Camera
- Part number
- HAC-HDBW1400R-VF
- Also known as
- Dahua Technology Lite 4MP HDCVI IR Dome Camera IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling
Specifications
60 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE FCC UL |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 98° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 - 13.5 mm |
| Focus | Manual |
| Maximum aperture number | 1.3 |
| Closest focusing distance | 0.2 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4.1 MP |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.1 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 88.9 mm |
| Diameter | 12.2 cm |
| Weight | 390 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
