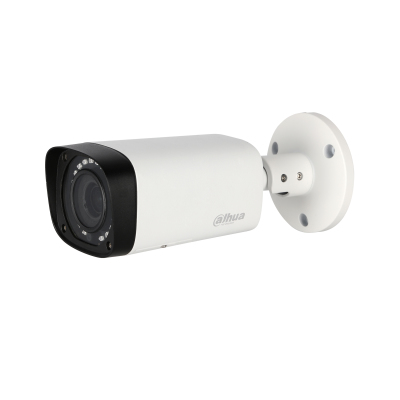

2MP HDCVI IR Bullet Camera
Model 2MP HDCVI IR Bullet CameraPart no. HAC-HFW1200R-VF
58 specifications
- ConnectivityWired
- TypeBullet
- Weight550 g
- ColourWhite
- Placement supportedIndoor & outdoor
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- Bullet
- Weight
- 550 g
- Colour
- White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0.02 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- 2MP HDCVI IR Bullet Camera
- Part numbers
- HAC-HFW1200R-VF, HAC-HFW1200R-VF-IRE6, HAC-HFW1200R
- Also known as
- Dahua Technology Lite 2MP HDCVI IR Bullet Camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
58 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 106° |
| Tilt angle range | 0 - 87° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25~1/100000, 1/30~1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 - 13.5 mm |
| Focus | Manual |
| Maximum aperture number | 1.3 |
| Closest focusing distance | 0.2 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 24 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.4 mm |
| Height | 90.4 mm |
| Length | 213 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 680 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
