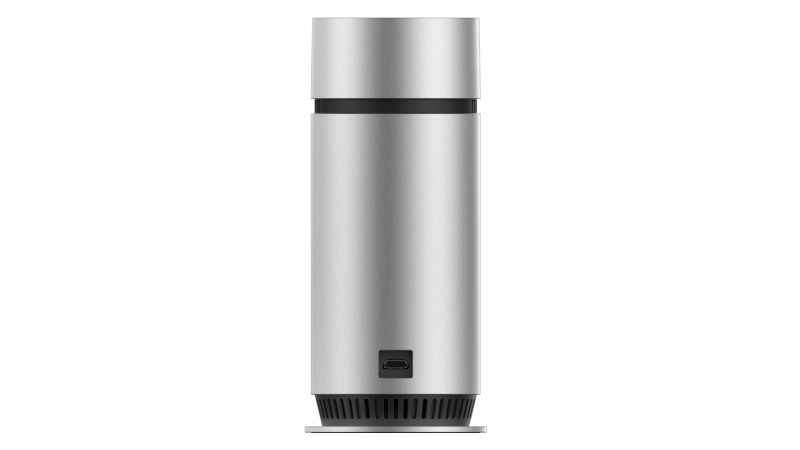

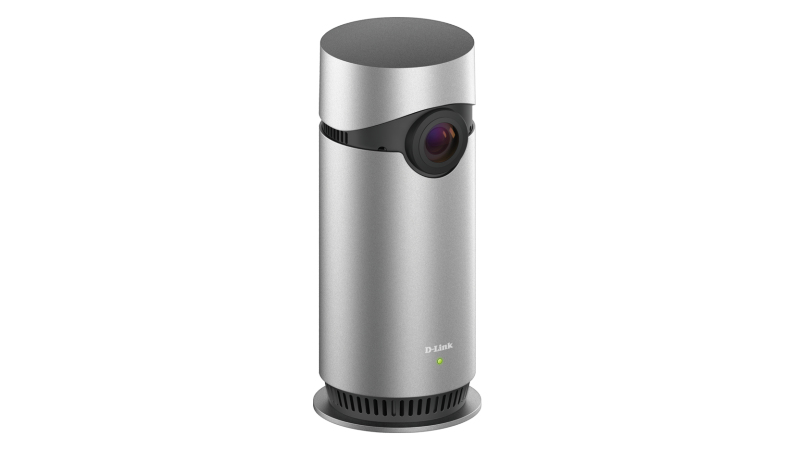

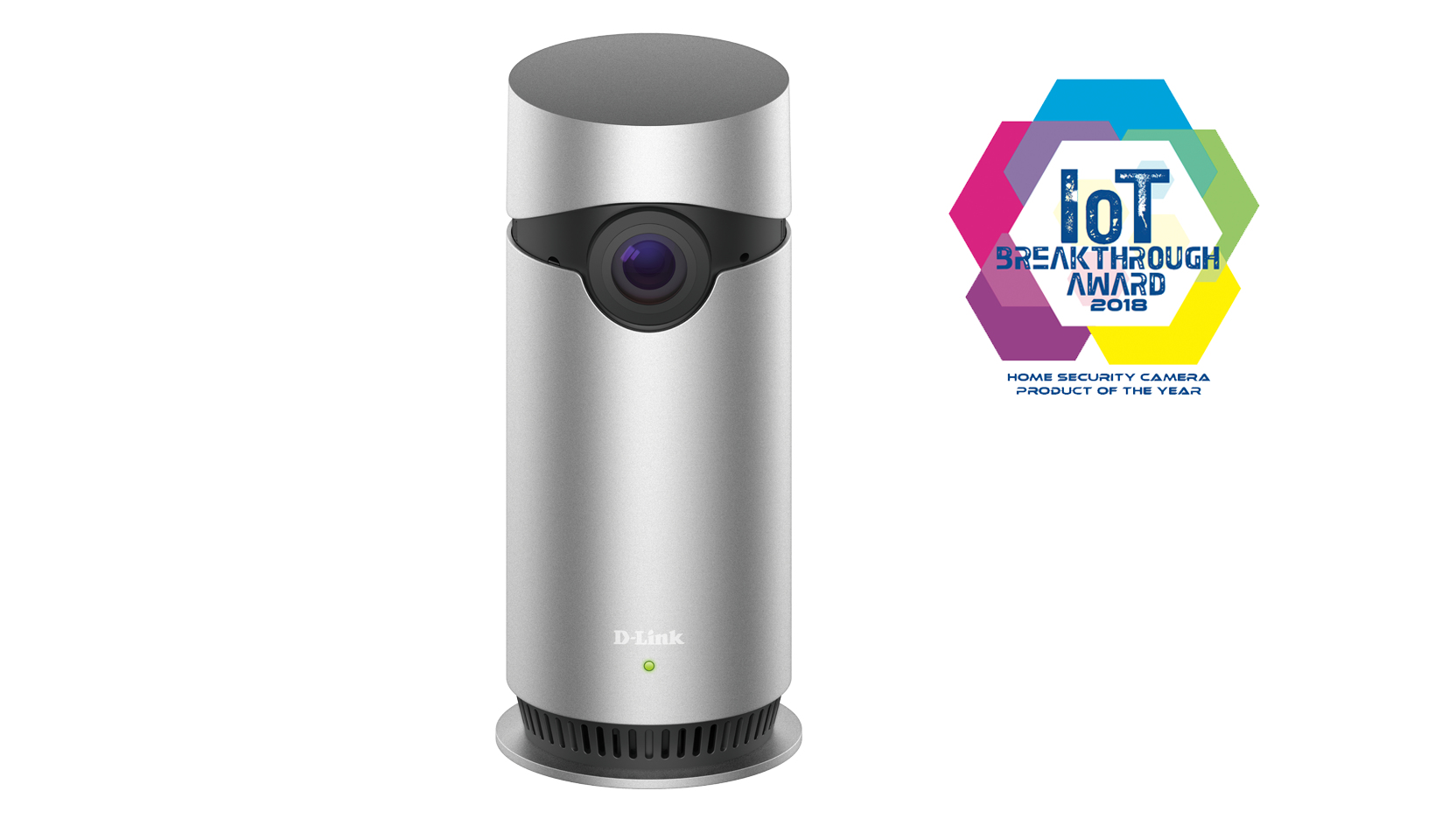

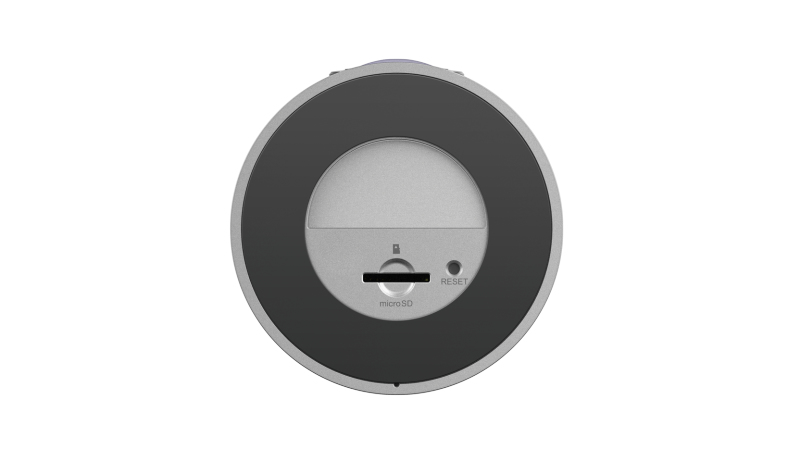

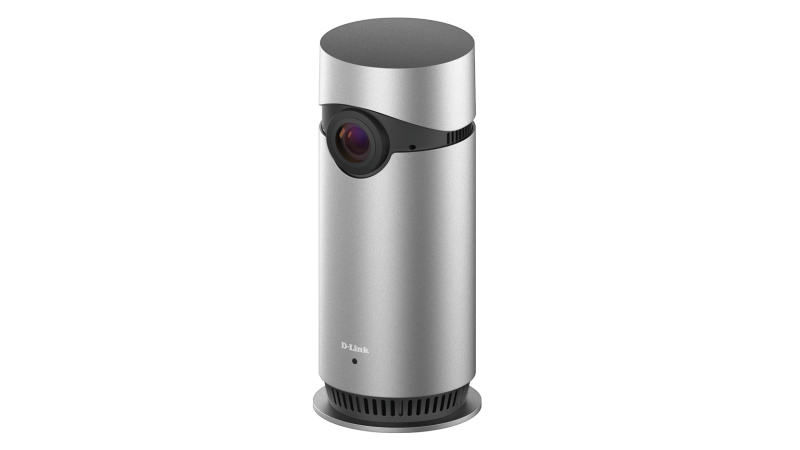

D-Link Omna 180 Cam HD

D-Link Omna 180 Cam HD

Model Omna 180 Cam HDPart no. DSH-C310EAN 790069430534

82 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight230 g
  • ColourBlack, Silver
  • Minimum illumination0.3 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
230 g
Colour
Black, Silver
Minimum illumination
0.3 lx
Sensor type
CMOS
Brand
D-Link
Model
Omna 180 Cam HD
Part number
DSH-C310
EAN / UPC
790069430534, 790069431111
Also known as
D-Link Omna 180 Cam HD IP security camera Indoor 1920 x 1080 pixels

Specifications

82 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired & Wireless
Infrared (IR) cut-off filterYes
CertificationCE CE LVD FCC ICES

Design

Product colourBlack, Silver
LED indicatorsPower, Status
Housing materialAluminium

Camera

Minimum illumination0.3 lx
Lens viewing angle, horizontal180°
Lens viewing angle, vertical66°
Lens viewing angle, diagonal180°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Maximum aperture number2
Minimum aperture number2
Fixed focal length1.72 mm

Night vision

Night visionYes
Night vision distance5 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Video compression formatsH.264, MPEG
Supported graphics resolutions640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Full HDYes

Audio

Built-in speaker(s)Yes
Audio formats supportedAAC
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiYes
BluetoothNo
Supported network protocolsIPv6, IPv4, ARP, TCP/IP, UDP, ICMP
Wi-Fi standards802.11b, Wi-Fi 4 (802.11n)
Frequency band2.4/5 GHz

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB

Ports & interfaces

USB portYes

Security

Motion sensorYes
Security algorithmsWPA, WPA2-PSK

Management features

Reset buttonYes

Power

Power source typeAC, USB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
DC output voltage5
DC output current2 A
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width53 mm
Depth58 mm
Height13.2 mm
Weight230 g

Packaging data

Package width135 mm
Package depth200 mm
Package height115 mm
Package weight550 g

Packaging content

Number of cameras1
Cables includedMicro-USB
Quick start guideYes

Other features

USB connectivityYes

Logistics data

Master (outer) cases per pallet (air)84 pc(s)
Master (outer) cases per pallet (sea)84 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)425.9 kg
Pallet gross weight (sea)425.9 kg
Pallet gross width120 cm
Pallet height (air)191.1 cm
Pallet height (sea)191.1 cm
Products per pallet (air)420 pc(s)
Products per pallet (sea)420 pc(s)
Shipping (inner) case gross weight4.85 kg
Shipping (inner) case height29.6 cm
Shipping (inner) case length36.8 cm
Shipping (inner) case net weight2.1 kg
Shipping (inner) case width22 cm
Products per shipping (inner) case5 pc(s)
