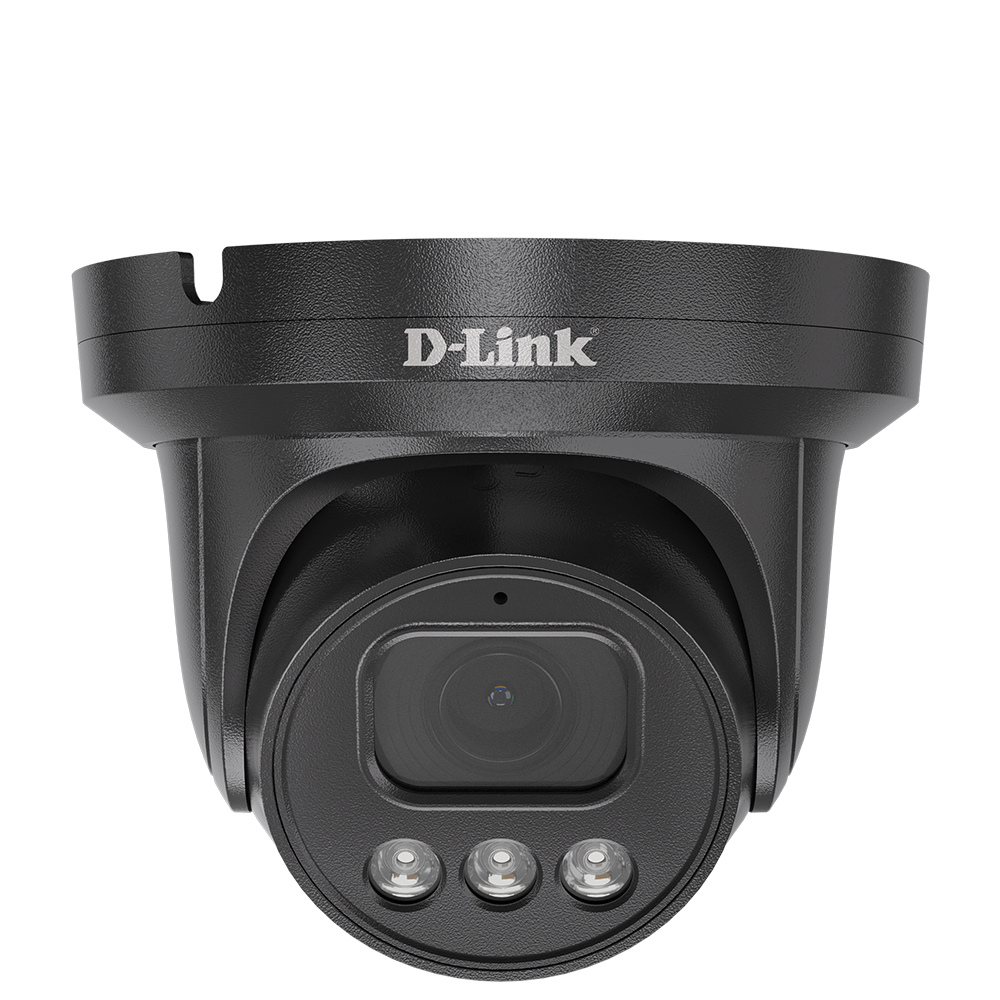

D-Link DCS-F4805E-BLK security camera Turret IP security camera Outdoor
D-Link

DCS-F4805E-BLK security camera Turret IP security camera Outdoor

2880 x 1620 pixels Ceiling/Wall/Pole

Model DCS-F4805E-BLKEAN 790069202223

81 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight550 g
  • ColourBlack
  • Form factorTurret
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
550 g
Colour
Black
Form factor
Turret
Minimum illumination
0 lx
Brand
D-Link
Model
DCS-F4805E-BLK
Part number
DCS-F4805E-BLK
EAN / UPC
790069202223
Also known as
D-Link DCS-F4805E-BLK security camera Turret IP security camera Outdoor 2880 x 1620 pixels Ceiling/Wall/Pole

Specifications

81 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
CertificationCE, FCC, RCM

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourBlack
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP66
WeatherproofYes

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal105°
Lens viewing angle, vertical56°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/5 - 1/20000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)2880 x 1620 pixels

Lens system

Focal length range2.8 mm
Maximum aperture number2

Night vision

Night visionYes
Night vision distance20 m
LED typeIR/White

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Video compression formatsH.264, H.265, HEVC
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)55 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsIPv4/IPv6 802.1x HTTP HTTPS TCP/IP UDP/IP RTSP DHCP NTP RTCP/RTP PPPoE SMTP DNS UPnP FTP ARP SNMP TLS/SSL
Client interoperabilityONVIF, SDK, CGI

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresHuman detection, Intrusion, Tripwire, Vehicle detection
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web browserYes
Remotely operatedYes
Reset buttonYes
Smartphone/tablet remote supportYes

Power

Power source typeDC, PoE
Power consumption (max)4.4 W
DC output voltage12
DC output current1.5 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedWindows 10 x64, Windows 11
Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height94 mm
Diameter11.8 cm
Weight550 g

Sustainability

Compliance certificatesNational Defense Authorization Act (NDAA)

Packaging content

Number of cameras1
AC adapter includedNo

Other features

Browser supportedChrome, Firefox, Edge, Safari (MJPEG only)
