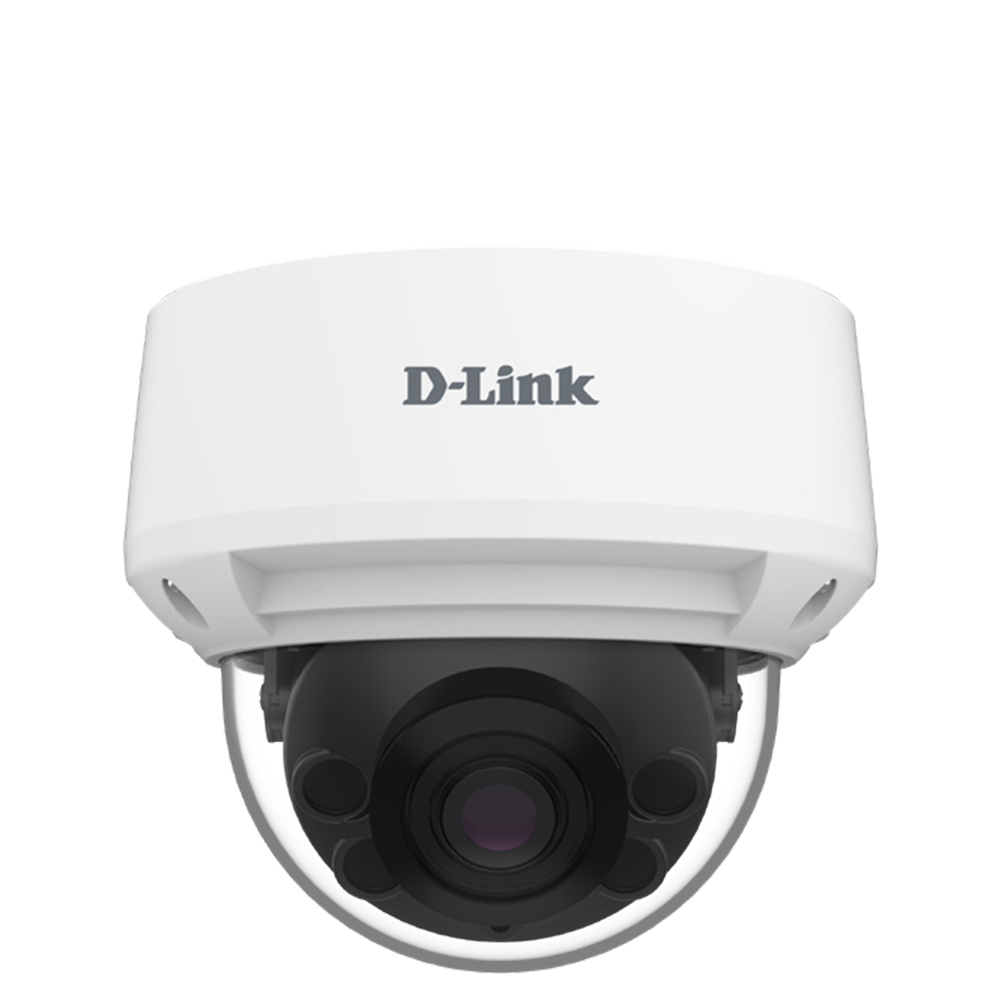

DCS-F4618EK security camera Dome IP security camera Indoor & outdoor
3840 x 2160 pixels Ceiling/Wall/Pole
Model DCS-F4618EKEAN 790069202414
90 specifications
- ConnectivityWired
- TypeIP security camera
- Weight800 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 800 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-F4618EK
- Part number
- DCS-F4618EK
- EAN / UPC
- 790069202414
- Also known as
- D-Link DCS-F4618EK security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole
Specifications
90 specifications in 20 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| People counting function | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE, FCC, RCM |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Protection features | Vandal proof, Water resistant |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 30.9 - 98.1° |
| Lens viewing angle, vertical | 17.3 - 52.6° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/20000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 2.7 - 13.5 mm |
| Auto focus | Yes |
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video compression formats | H.264, H.265, HEVC |
| Video recording | Yes |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Smart IR | Yes |
| Text caption overlay | Yes |
| Time stamp overlay | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4/IPv6 802.1x HTTP HTTPS TCP/IP UDP/IP RTSP DHCP NTP RTCP/RTP PPPoE SMTP DNS UPnP FTP ARP SNMP TLS/SSL |
| Client interoperability | ONVIF, SDK, CGI |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Intrusion, Tripwire, Vehicle detection |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Remotely operated | Yes |
| Reset button | Yes |
| Smartphone/tablet remote support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 8.5 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 112 mm |
| Diameter | 13 cm |
| Weight | 800 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | National Defense Authorization Act (NDAA) |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Other features
| Specification | Value |
|---|---|
| Browser supported | Chrome, Firefox, Edge, Safari (MJPEG only) |
