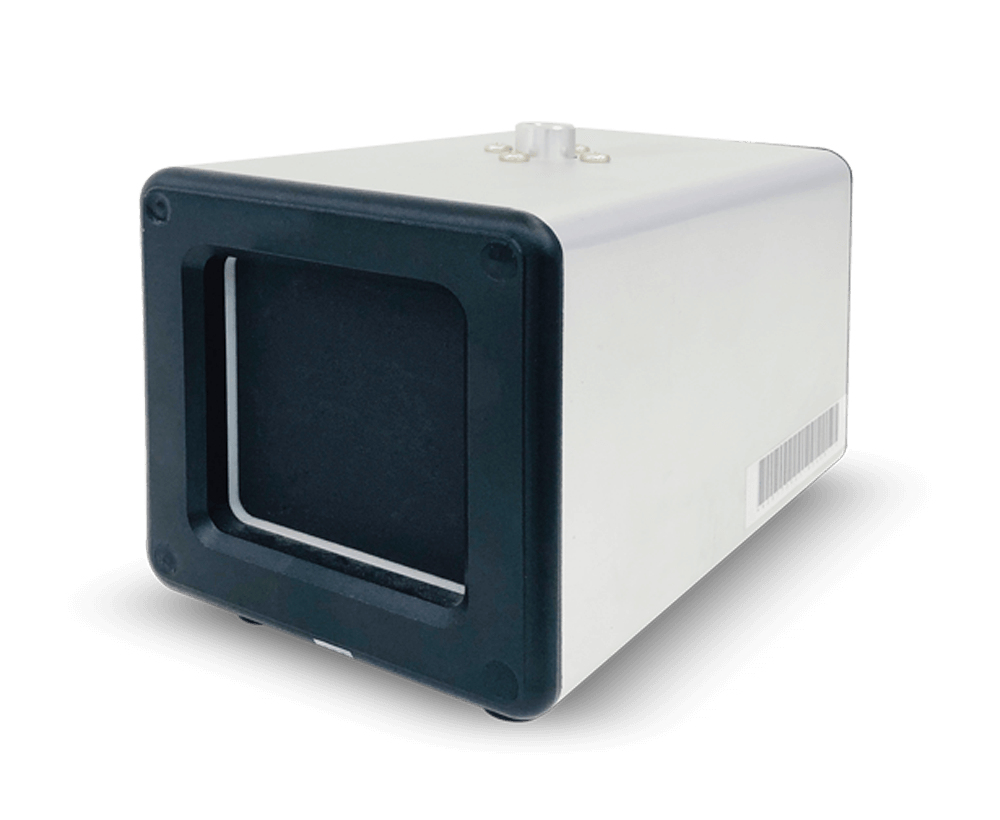

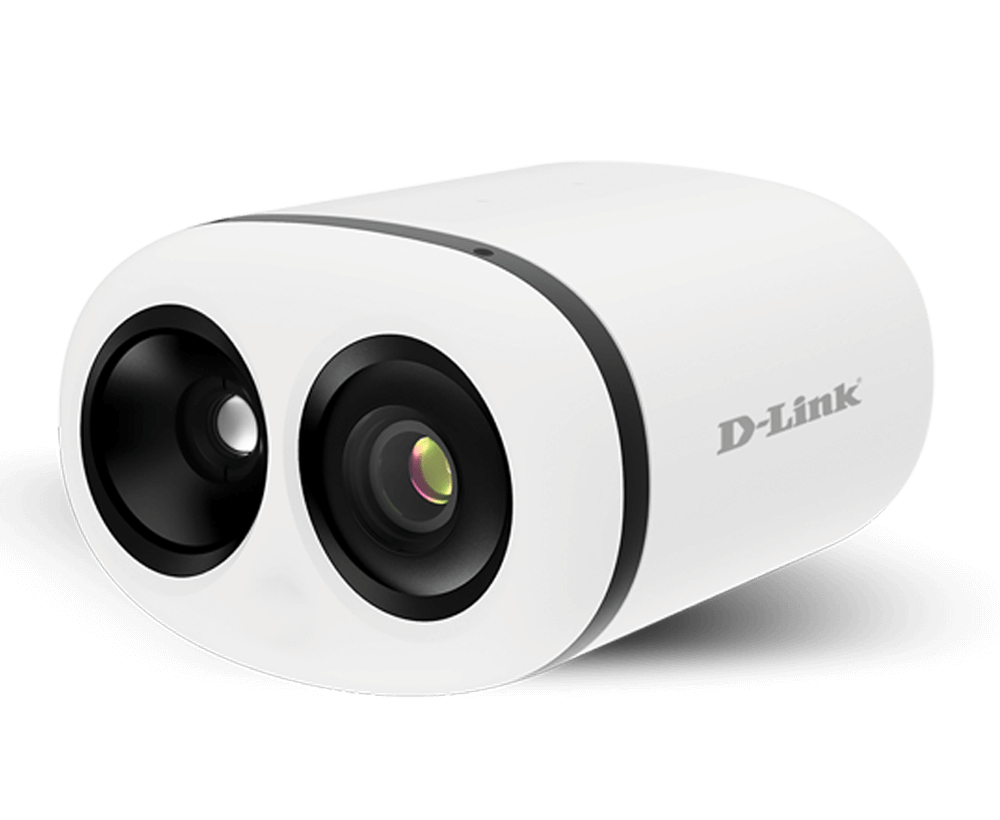

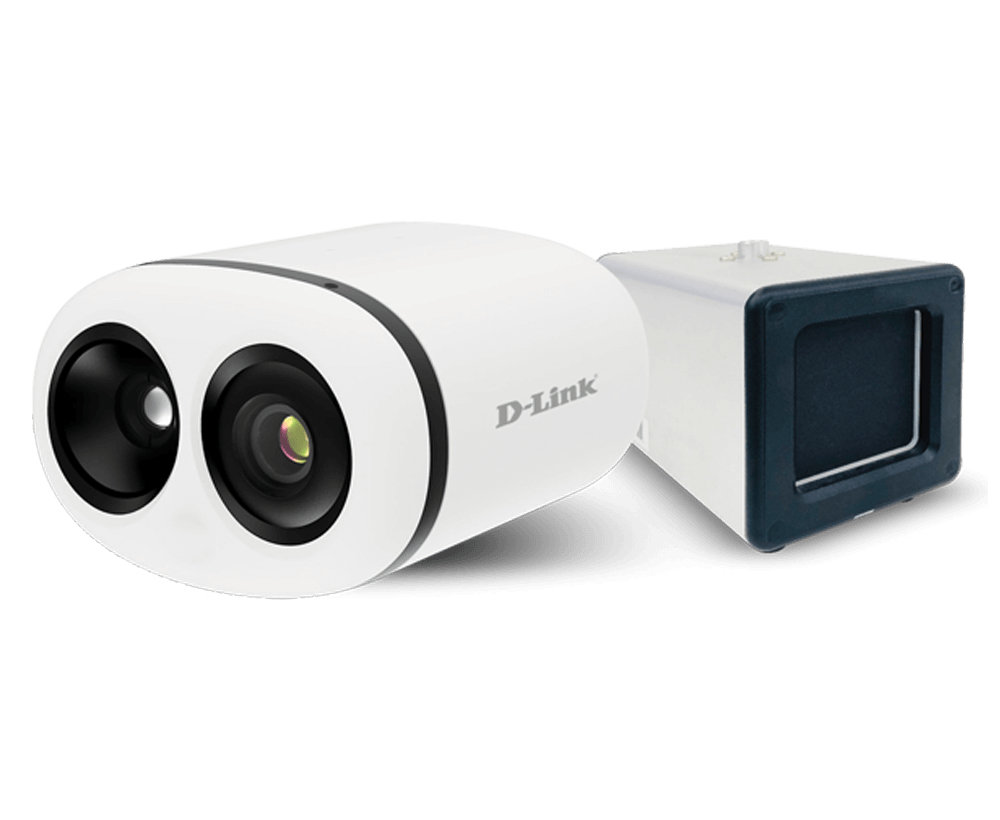

D-Link DCS-9500T security camera IP security camera Indoor
D-Link

DCS-9500T security camera IP security camera Indoor

1920 x 1080 pixels Wall

Model DCS-9500TEAN 790069455827

66 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight9.5 kg
  • ColourWhite
  • Mounting typeWall
  • Minimum illumination0.15 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
9.5 kg
Colour
White
Mounting type
Wall
Minimum illumination
0.15 lx
Brand
D-Link
Model
DCS-9500T
Part number
DCS-9500T
EAN / UPC
790069455827
Also known as
D-Link DCS-9500T security camera IP security camera Indoor 1920 x 1080 pixels Wall

Specifications

66 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Thermal moduleYes
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
Thermal sensitivity (NETD)40 mK
CertificationCE, CE LVD, FCC

Design

Mounting typeWall
Product colourWhite
International Protection (IP) codeIP66
WeatherproofYes

Camera

Minimum illumination0.15 lx
Field of view (FOV) angle (thermal module)46 x 35°
Lens viewing angle, horizontal105°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Effective sensor resolution (thermal module)400 x 300 pixels
Progressive scanYes

Lens system

Focal length range2.7 - 12 mm
Maximum aperture number2.9
Minimum aperture number1.6
Aperture number (thermal module)1
Closest focusing distance0.5 m
Fixed focal length (thermal module)8 mm

Video

Maximum resolution1920 x 1080 pixels
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Text caption overlayYes
Time stamp overlayYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv6, IPv4, TCP/IP, UDP, HTTP/HTTPS, RTP / RTSP/ RTCP, ONVIF

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Temperature sensorYes
Intelligent Video Surveillance (IVS) system featuresFace detection
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typePoE
Power consumption (max)10 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedWindows 10, Windows 7, Windows 8

Weight & dimensions

Width182 mm
Depth220 mm
Height136 mm
Weight9.5 kg

Packaging content

Number of cameras1
Mounting kitYes
