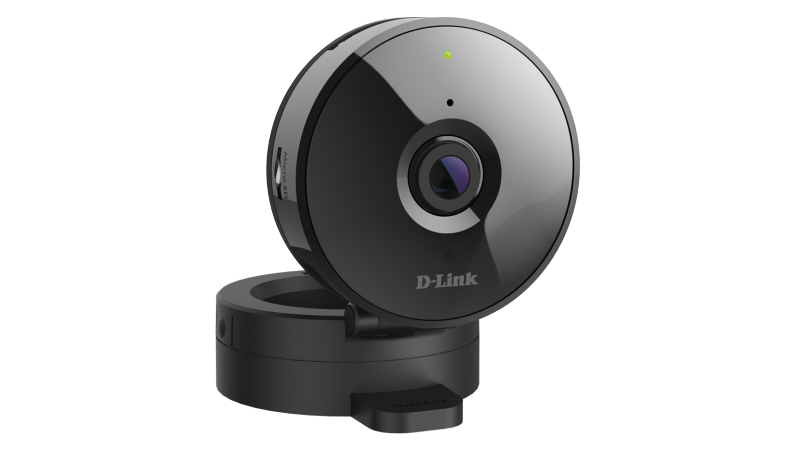

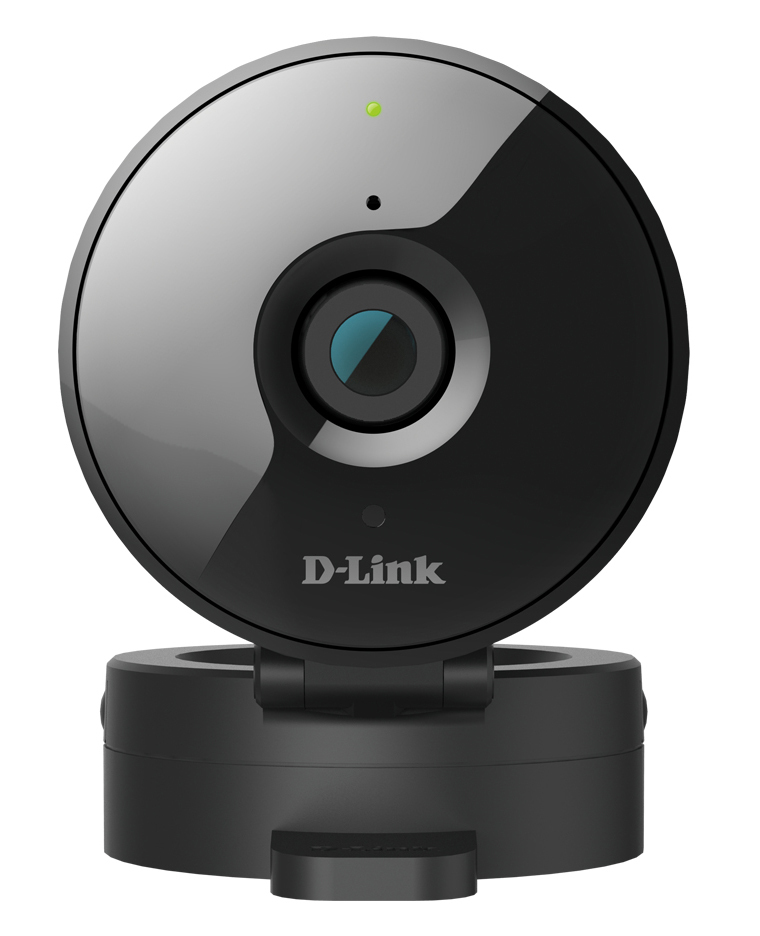

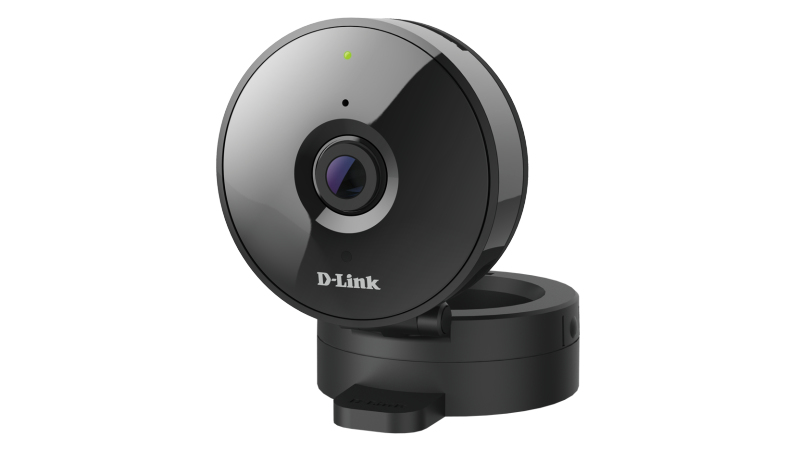

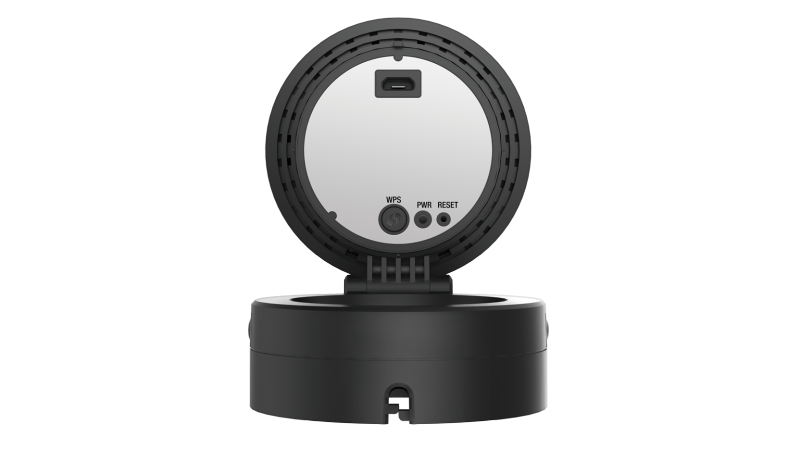

D-Link DCS-936L security camera Cube IP security camera Indoor

1280 x 720 pixels Ceiling/wall

Model DCS-936LPart no. DCS 936LEAN 790069429873

92 specifications

ConnectivityWired
TypeIP security camera
Weight140 g
ColourBlack
Form factorCube
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 140 g
Colour: Black
Form factor: Cube
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-936L
Part numbers: DCS 936L, DCS-936L
EAN / UPC: 790069429873, 790069428364, 790069429835, 790069425417
Also known as: D-Link DCS-936L security camera Cube IP security camera Indoor 1280 x 720 pixels Ceiling/wall

Specifications

92 specifications in 21 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Certification	CE, CE LVD, FCC B, ICES, C-Tick

Design

Specification	Value
Form factor	Cube
Mounting type	Ceiling/wall
Product colour	Black
LED indicators	Power, WLAN

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	100°
Lens viewing angle, vertical	54°
Lens viewing angle, diagonal	120°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	4x
Maximum aperture number	2.4
Fixed focal length	2.45 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	4.8 m
LED type	IR

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 176, 640 x 352, 1280 x 720 (HD 720)
Supported video modes	720p
Frame rate	30 fps
Video streaming	Yes
Image quality adjustment	Brightness, Colour depth, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio formats supported	ADPCM, PCM
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	No
Wi-Fi	Yes
Supported network protocols	IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, UPnP, RTP, RTSP, RTCP, HTTP, Bonjour
Streaming method	Multicast

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Ports & interfaces

Specification	Value
USB port	Yes
DC-in jack	Yes
Interface	Wi-Fi

Security

Specification	Value
Password protection	Yes
Password protection type	User
HTTPS encryption	Yes
Video motion detection	Yes

Management features

Specification	Value
Reset button	Yes
WPS push button	Yes

Power

Specification	Value
Power source type	DC
AC input frequency	50 - 60 Hz
DC output voltage	5
DC output current	1.2 A
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	20 - 85%

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Width	92.1 mm
Depth	65.9 mm
Height	90.7 mm
Weight	140 g

Packaging data

Specification	Value
Package width	63 mm
Package depth	135 mm
Package height	200 mm
Package weight	392.6 g

Packaging content

Specification	Value
Number of cameras	1
Screws included	Yes
Quick installation guide	Yes
USB charger included	Yes

Other features

Specification	Value
Noise detection	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	85258900
Master (outer) cases per pallet (air)	165 pc(s)
Master (outer) cases per pallet (sea)	165 pc(s)
Pallet gross length	120 cm
Pallet gross weight (air)	369.9 kg
Pallet gross weight (sea)	369.9 kg
Pallet gross width	110 cm
Pallet height (air)	199.4 cm
Pallet height (sea)	199.4 cm
Products per pallet (air)	825 pc(s)
Products per pallet (sea)	825 pc(s)
Shipping (inner) case gross weight	2.13 kg
Shipping (inner) case height	16.9 cm
Shipping (inner) case length	33.8 cm
Shipping (inner) case net weight	1.07 kg
Shipping (inner) case width	21.8 cm
Products per shipping (inner) case	5 pc(s)
