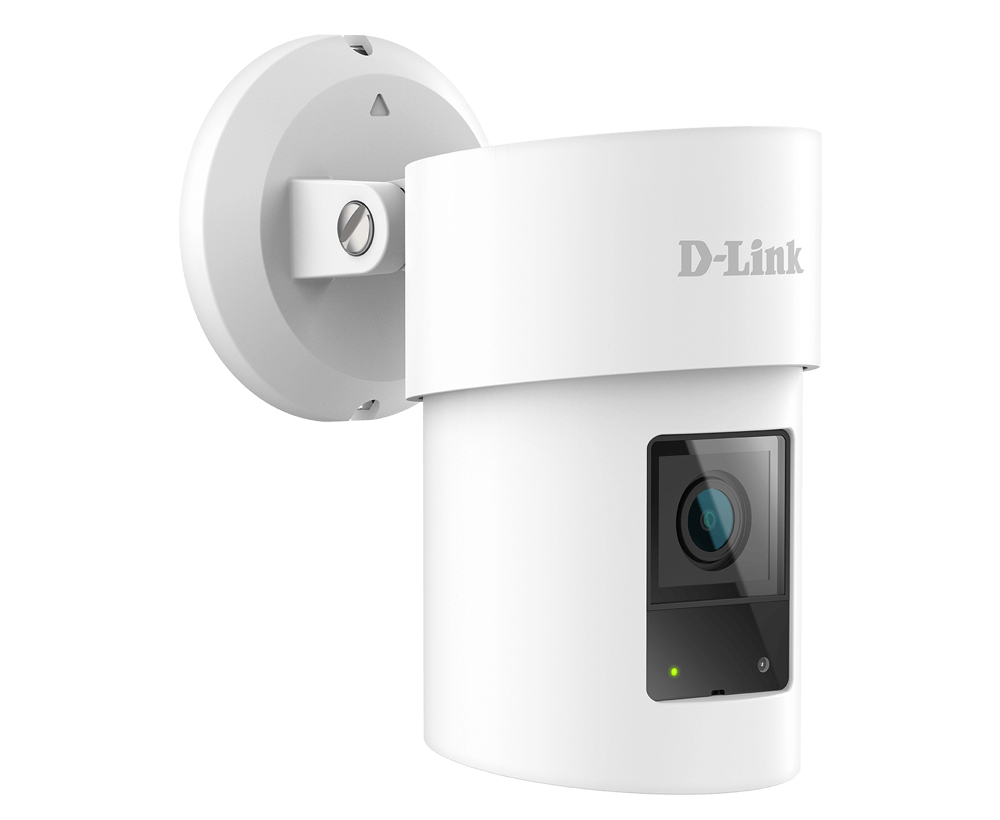

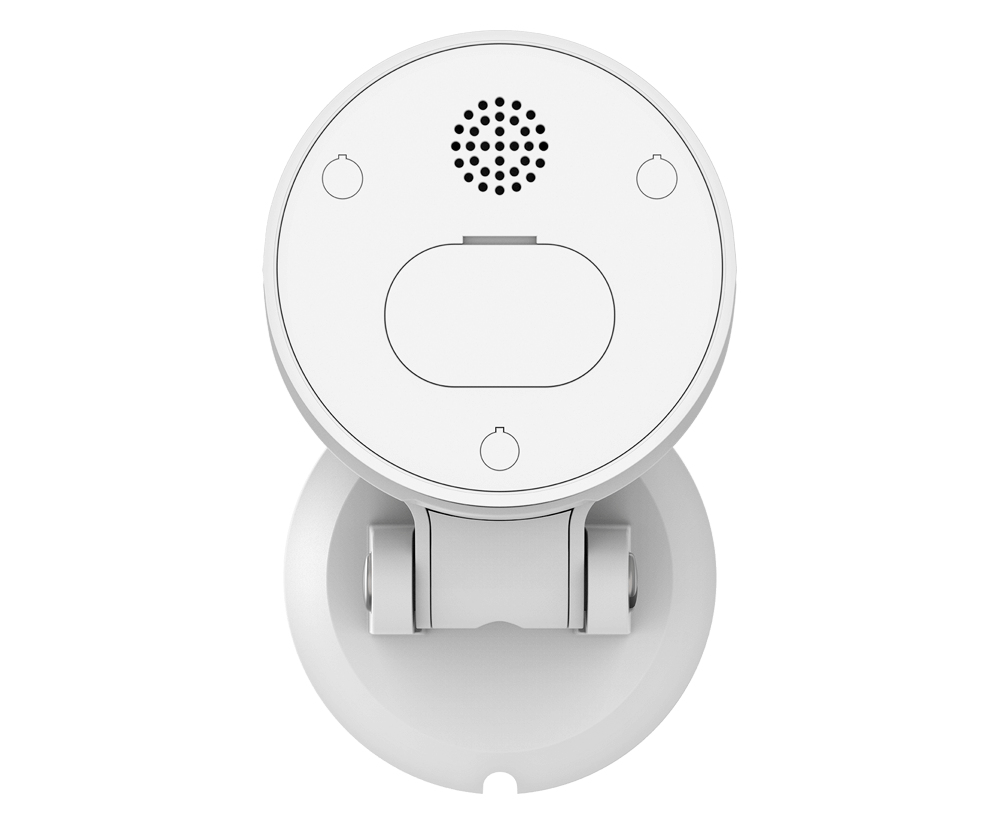

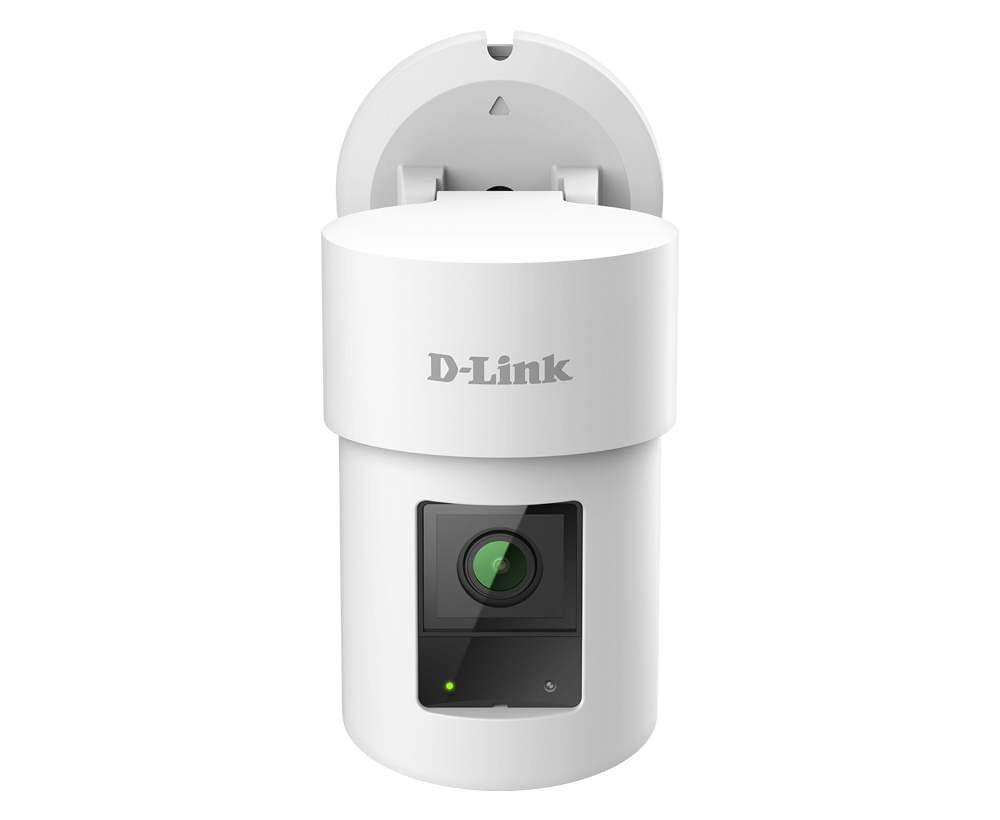

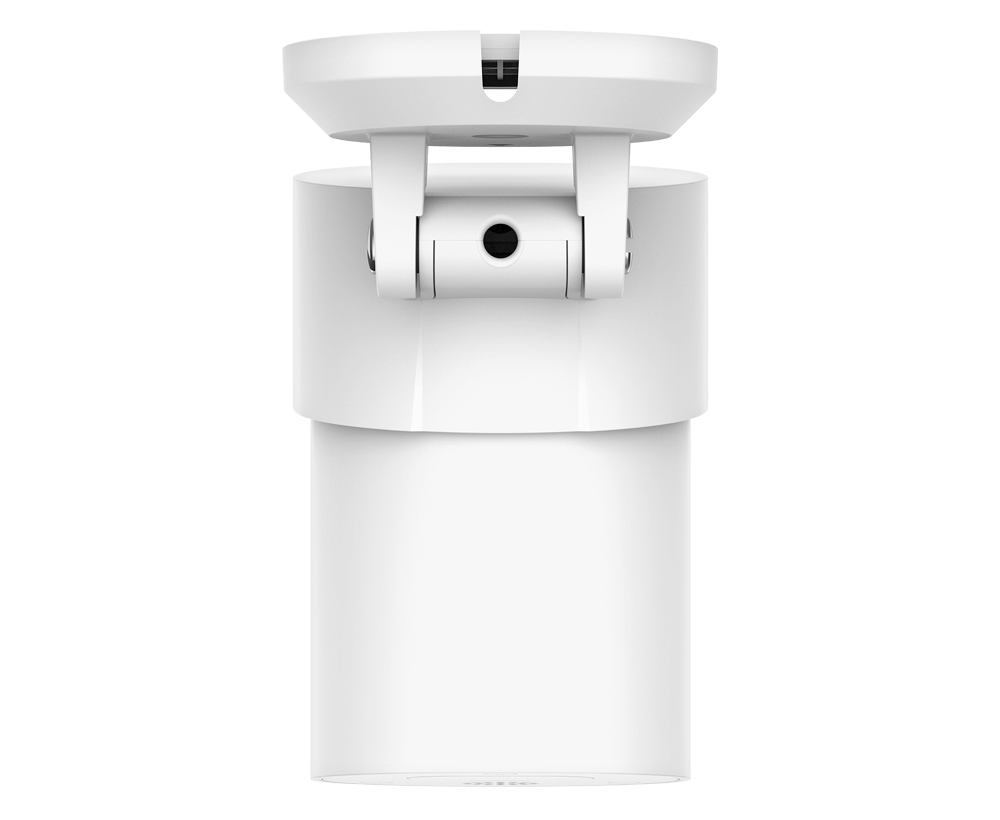

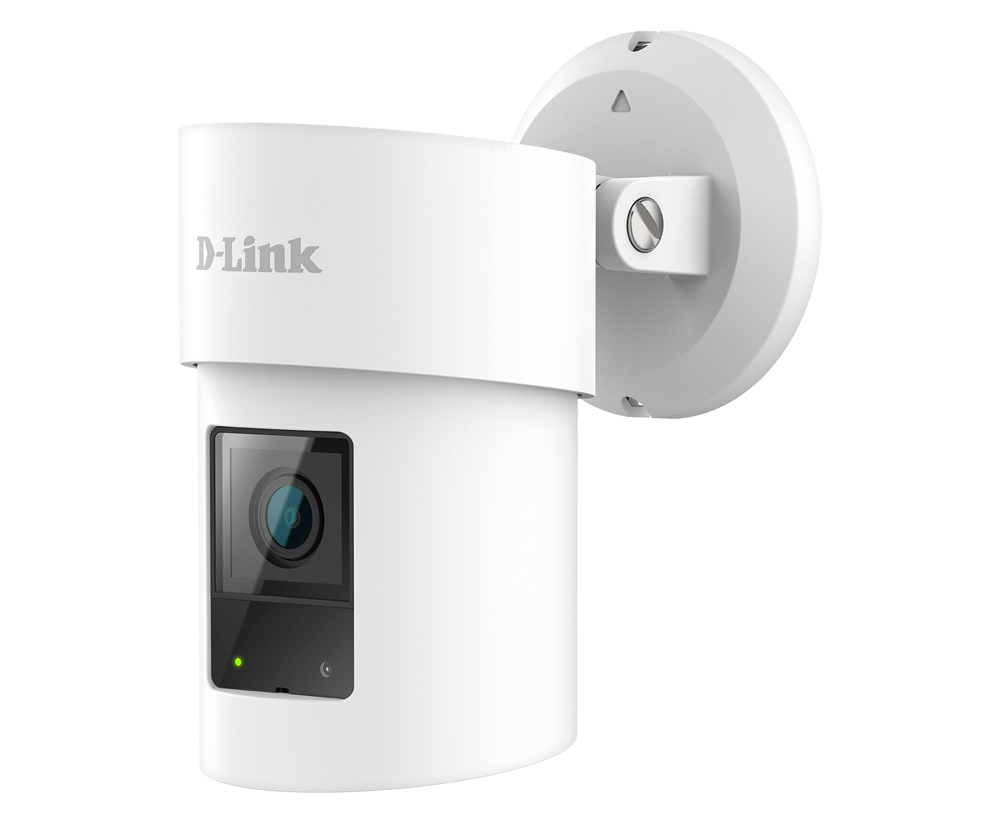

DCS-8635LH security camera IP security camera Outdoor
2560 x 1440 pixels Wall/Pole
Model DCS-8635LHEAN 790069461675
55 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight342 g
- ColourWhite
- Mounting typeWall/Pole
- Lens viewing angle, horizontal105.4°
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 342 g
- Colour
- White
- Mounting type
- Wall/Pole
- Lens viewing angle, horizontal
- 105.4°
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-8635LH
- Part number
- DCS-8635LH
- EAN / UPC
- 790069461675
- Also known as
- D-Link DCS-8635LH security camera IP security camera Outdoor 2560 x 1440 pixels Wall/Pole
Specifications
55 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wireless |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Wall/Pole |
| Product colour | White |
| International Protection (IP) code | IP65 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 105.4° |
| Lens viewing angle, vertical | 56.4° |
| Lens viewing angle, diagonal | 125° |
| Pan range | -135 - 135° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focal length | 3.3 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 7 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265 |
| Supported video modes | 1440p |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11n |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSL/TLS, WPA3 |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 7 W |
| DC output voltage | 12 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71 mm |
| Depth | 111.8 mm |
| Height | 70 mm |
| Weight | 342 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
