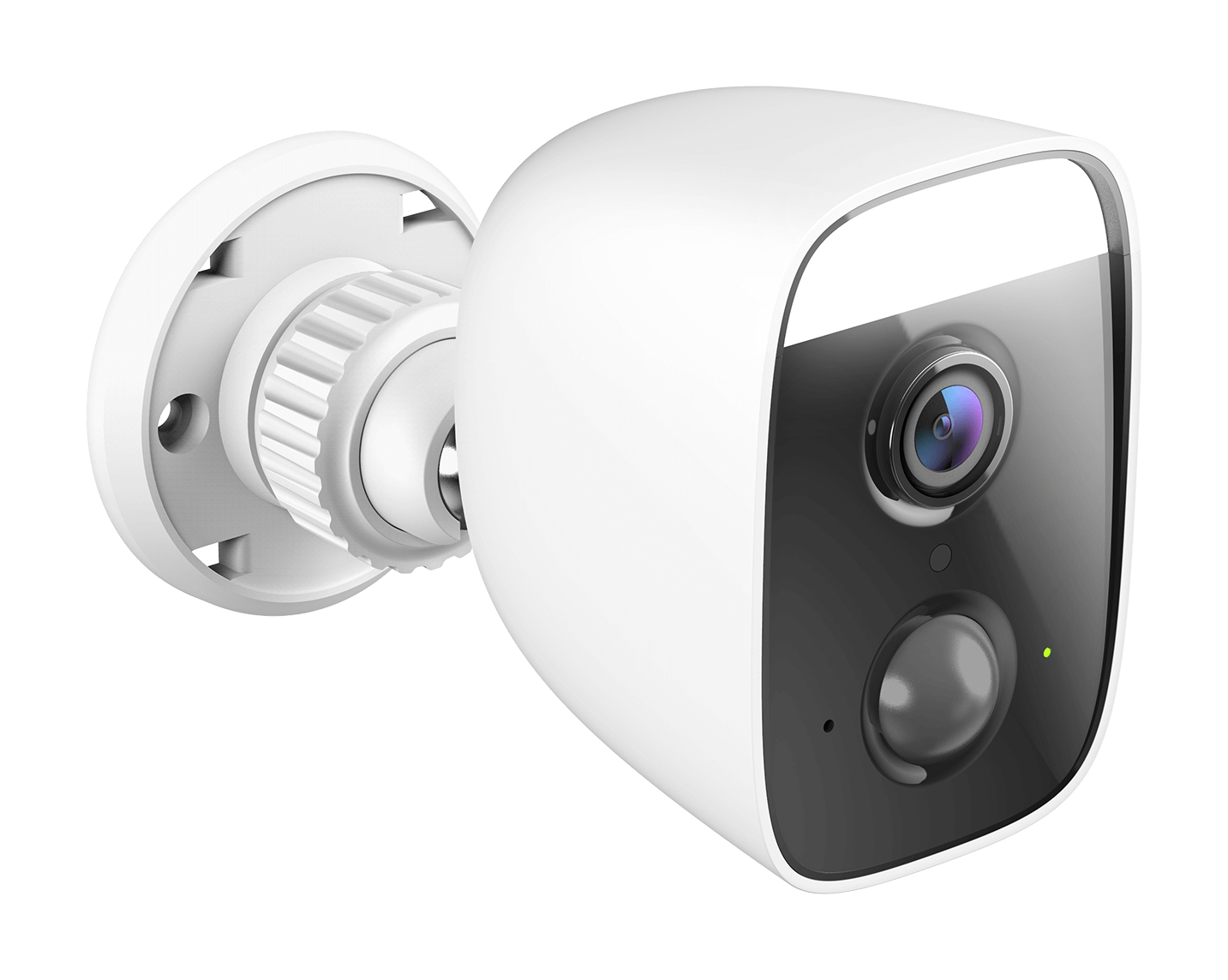

DCS-8627LH security camera Cube IP security camera Indoor & outdoor
1920 x 1080 pixels Wall/Pole
Model DCS-8627LHEAN 790069453250
55 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight237 g
- ColourWhite
- Form factorCube
- Camera tilt controlNo
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 237 g
- Colour
- White
- Form factor
- Cube
- Camera tilt control
- No
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-8627LH
- Part number
- DCS-8627LH
- EAN / UPC
- 790069453250
- Also known as
- D-Link DCS-8627LH security camera Cube IP security camera Indoor & outdoor 1920 x 1080 pixels Wall/Pole
Specifications
55 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wireless |
| Certification | CE LVD RCM FCC Class B IC NCC/BSMI |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Mounting type | Wall/Pole |
| Product colour | White |
| LED indicators | Status |
| International Protection (IP) code | IP65 |
Camera
| Specification | Value |
|---|---|
| Camera tilt control | No |
| Field of view (FOV) angle | 150° |
| Lens viewing angle, horizontal | 123.8° |
| Lens viewing angle, vertical | 65.4° |
| Lens viewing angle, diagonal | 150° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 2.7 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 7 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264 |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio formats supported | AAC-LC |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Supported network protocols | IPv4, IPv6, DHCP/DHCPv6 Client, Bonjour (mDNS and DNS-SD), ONVIF Profile S, RTSP, SRTP, RTP/SRTP, HTTPS |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
| Motion sensor technology | Passive infrared (PIR) sensor |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 8 W |
| DC output voltage | 12 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 126 mm |
| Height | 84 mm |
| Weight | 237 g |
| Cable length | 3 m |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
