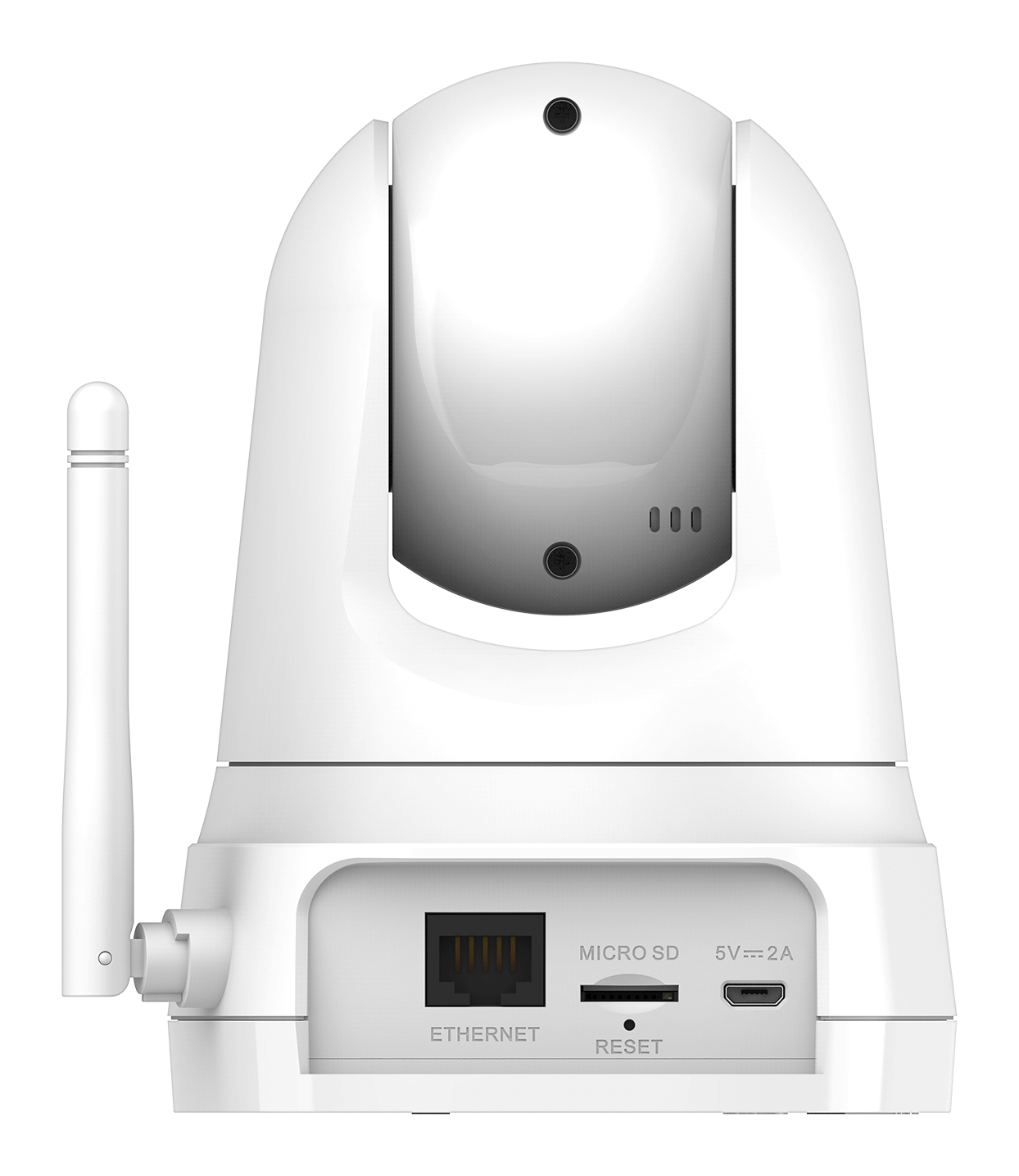

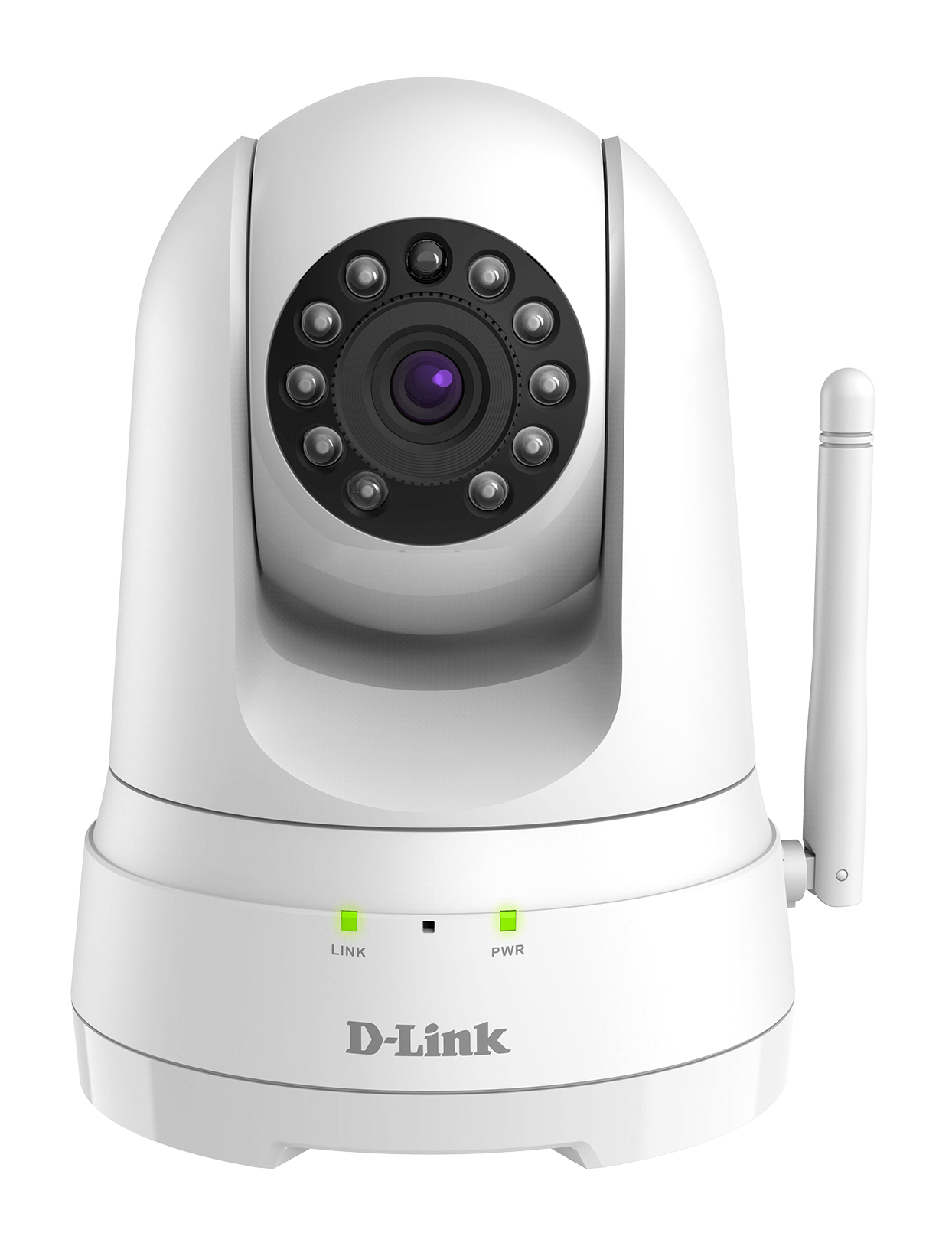

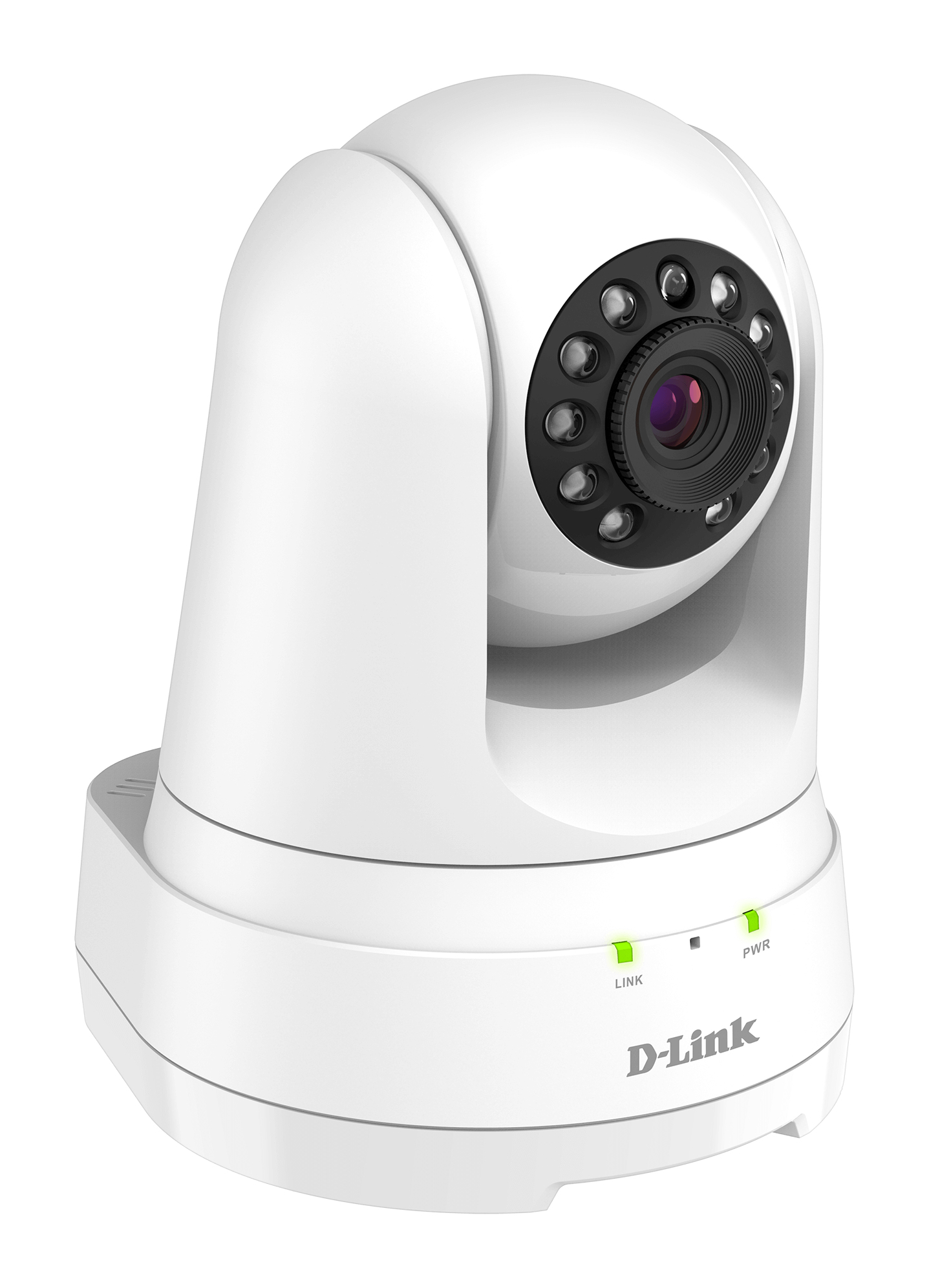

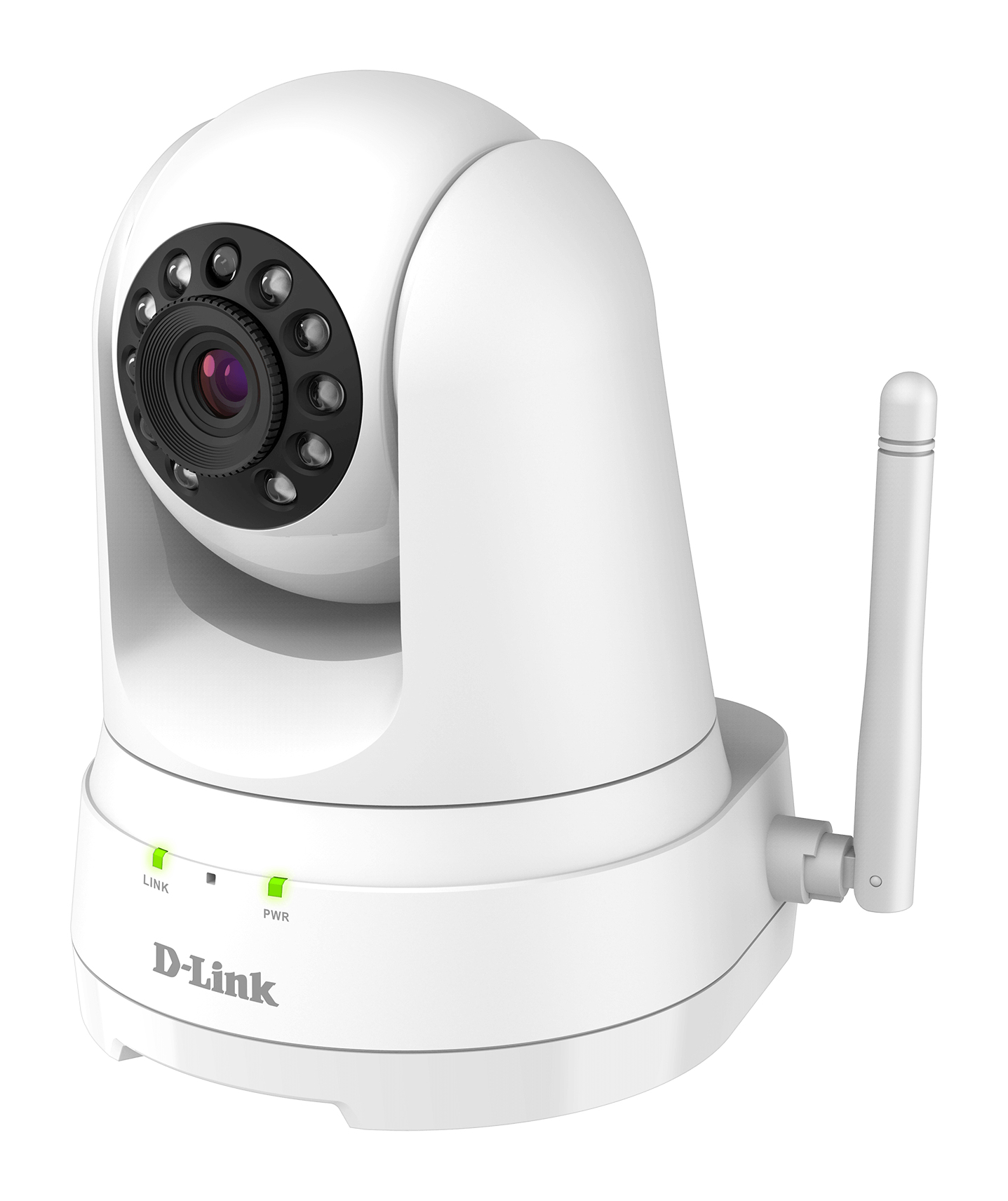

D-Link mydlink Full HD PT Indoor Camera - DCS‑8525LH

Model DCS-8525LHEAN 790069439117

83 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight330 g
ColourWhite
Form factorSpherical
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 330 g
Colour: White
Form factor: Spherical
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-8525LH
Part number: DCS-8525LH
EAN / UPC: 790069439117, 790069440106
Also known as: D-Link mydlink Full HD PT Indoor Camera - DCS‑8525LH

Specifications

83 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Remote viewing	Yes
Certification	CE, CE LVD, ICES, FCC Class B, RCM

Design

Specification	Value
Form factor	Spherical
Mounting type	Desk
Product colour	White

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	98°
Lens viewing angle, vertical	52°
Lens viewing angle, diagonal	114°

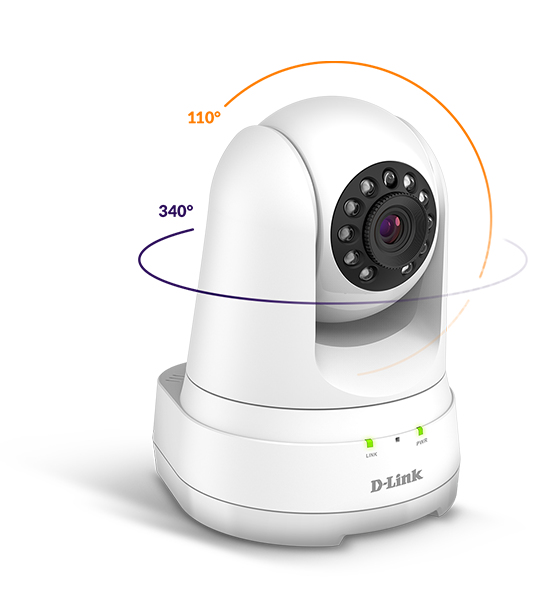

Tilt angle range	-20 - 90°
Pan range	-170 - 170°

Image sensor

Specification	Value
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")

Lens system

Specification	Value
Number of lenses	1
Maximum aperture number	2
Fixed focal length	2.39 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	5 m
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate	30 fps
Full HD	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio formats supported	AAC
Built-in microphone	Yes
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Ethernet interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Security

Specification	Value
Security algorithms	WPA, WPA2
Video motion detection	Yes

Power

Specification	Value
Power source type	AC, DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	8.43 W
DC output voltage	5
DC output current	2 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Width	111.3 mm
Depth	116.4 mm
Height	138.1 mm
Weight	330 g

Packaging data

Specification	Value
Package width	200 mm
Package depth	225 mm
Package height	135 mm
Package weight	913.2 g

Packaging content

Specification	Value
Number of cameras	1
Cables included	LAN (RJ-45)
AC adapter included	Yes

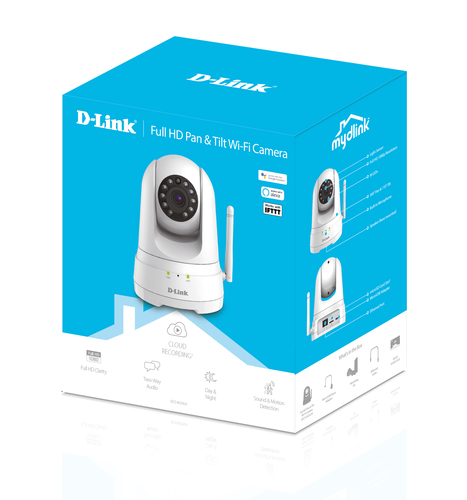

Quick installation guide	Yes
Wall mounting kit	Yes

Logistics data

Specification	Value
Master (outer) cases per pallet (air)	50 pc(s)
Master (outer) cases per pallet (sea)	50 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	285.5 kg
Pallet gross weight (sea)	285.5 kg
Pallet gross width	120 cm
Pallet height (air)	2 m
Pallet height (sea)	2 m
Products per pallet (air)	250 pc(s)
Products per pallet (sea)	250 pc(s)
Shipping (inner) case gross weight	5.25 kg
Shipping (inner) case height	37.3 cm
Shipping (inner) case length	43.1 cm
Shipping (inner) case net weight	3.05 kg
Shipping (inner) case width	24.5 cm
Products per shipping (inner) case	5 pc(s)
