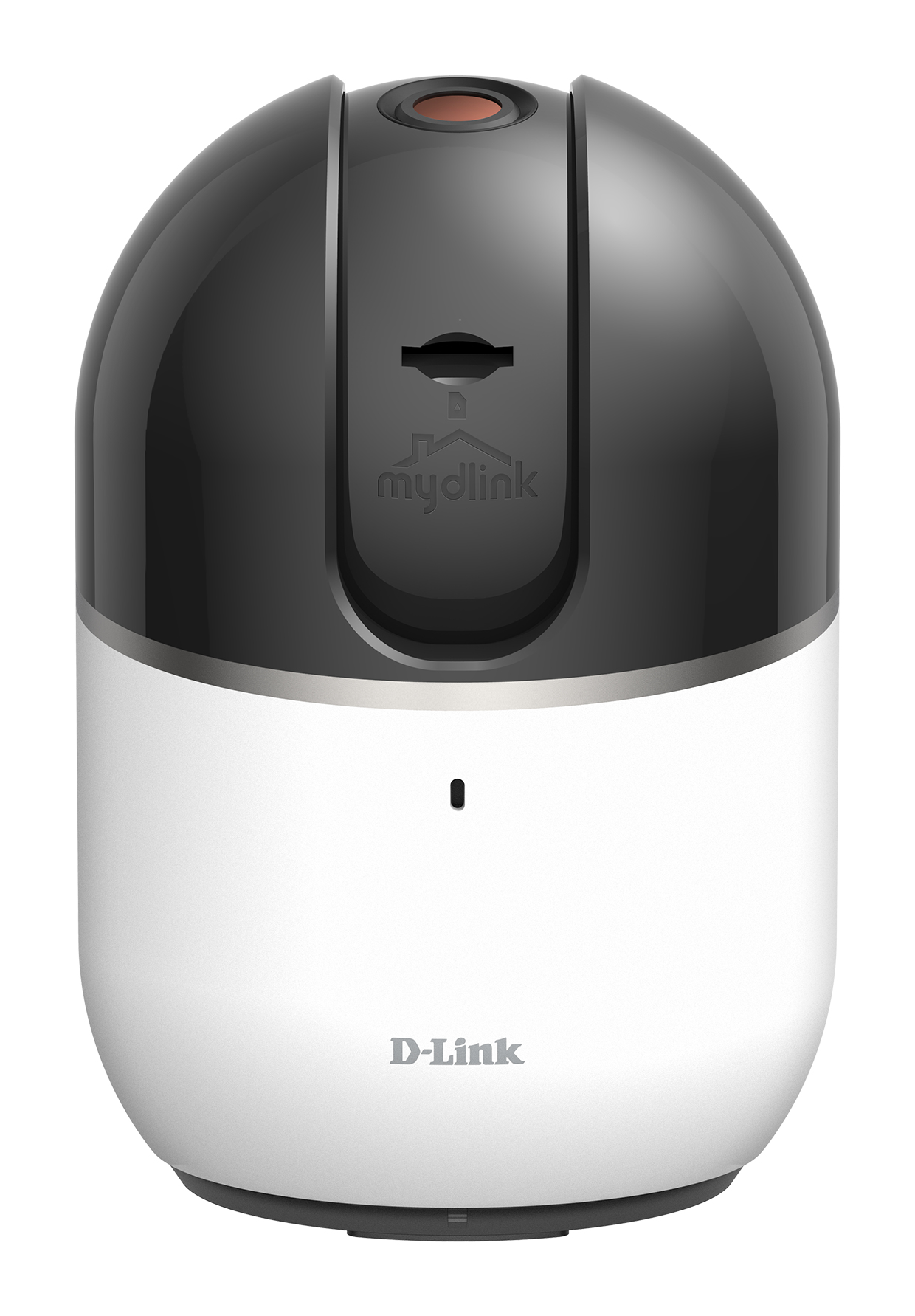

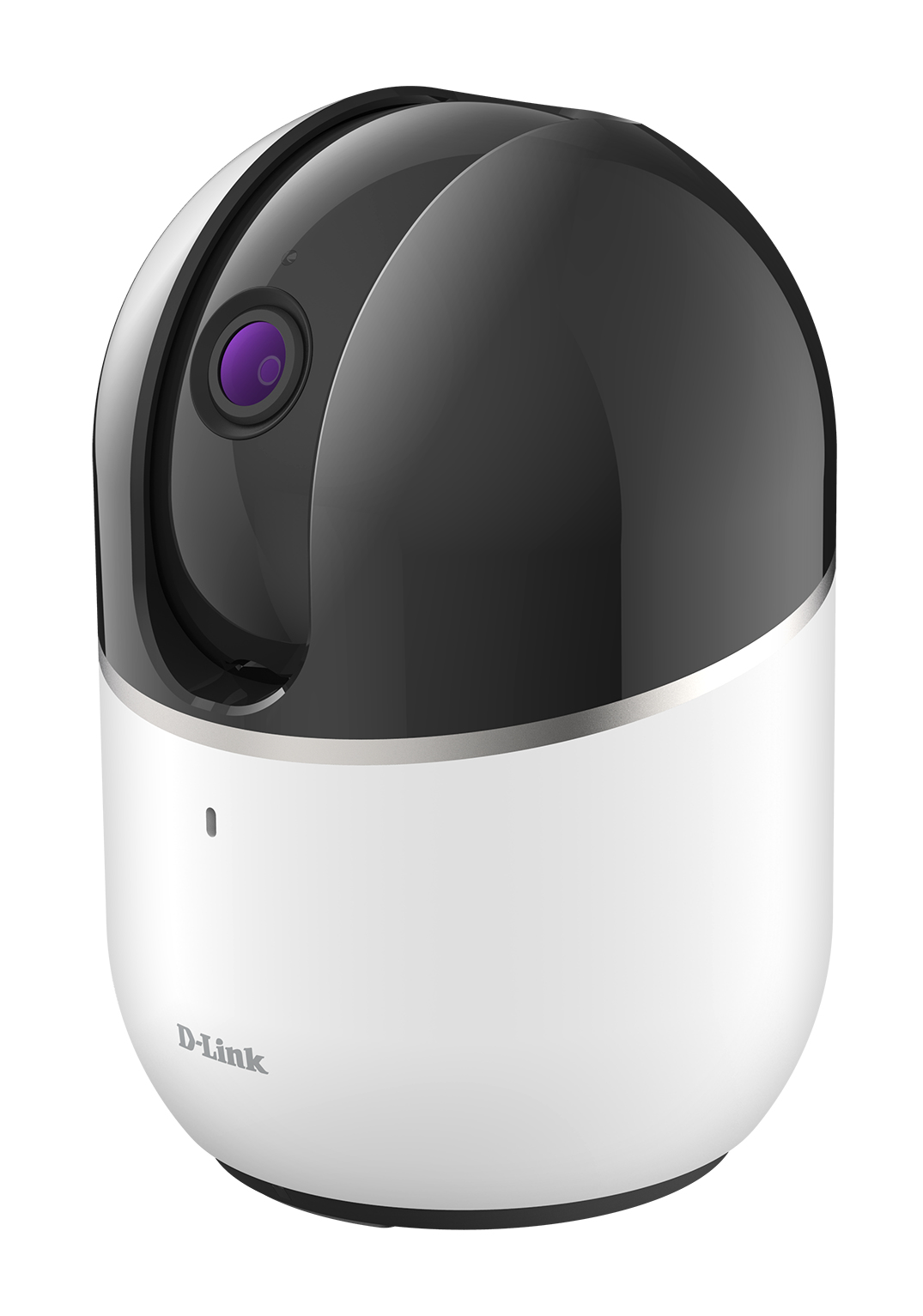

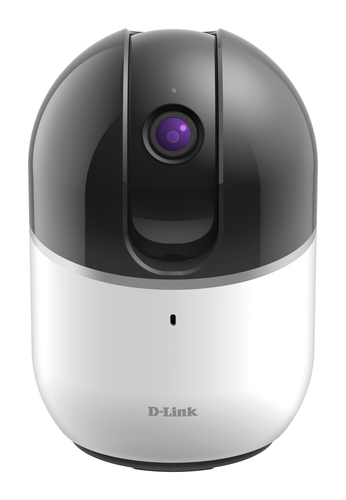

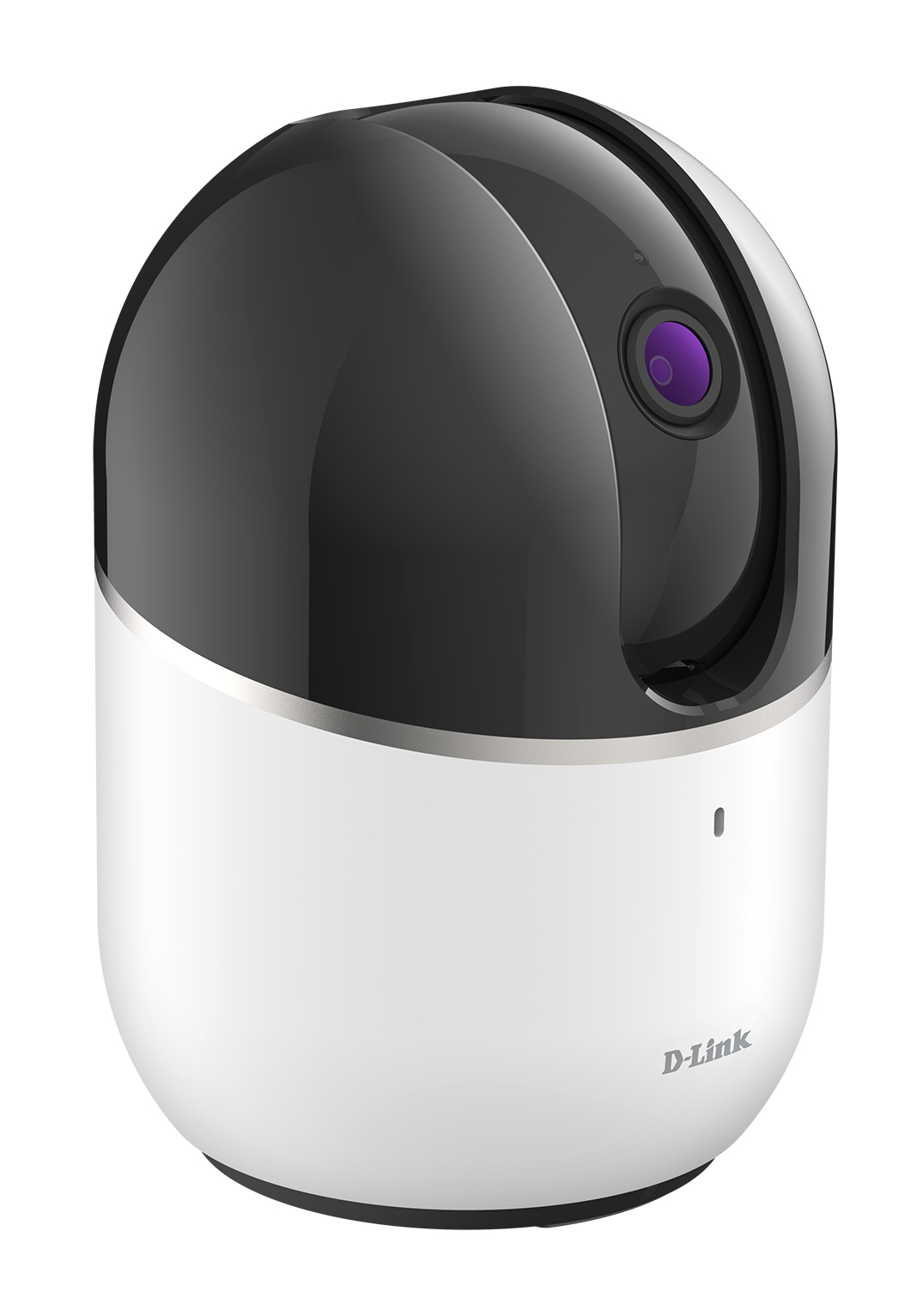

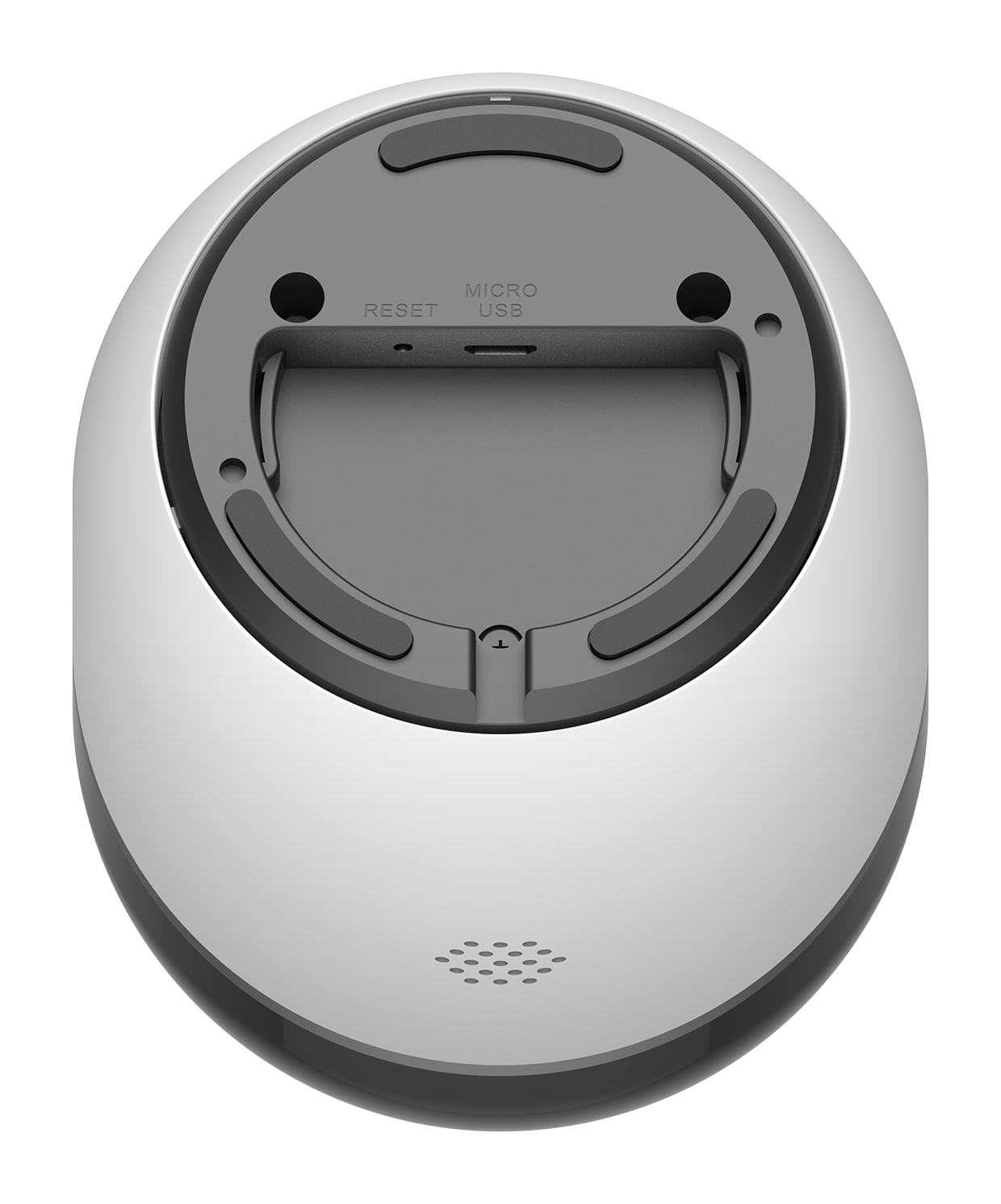

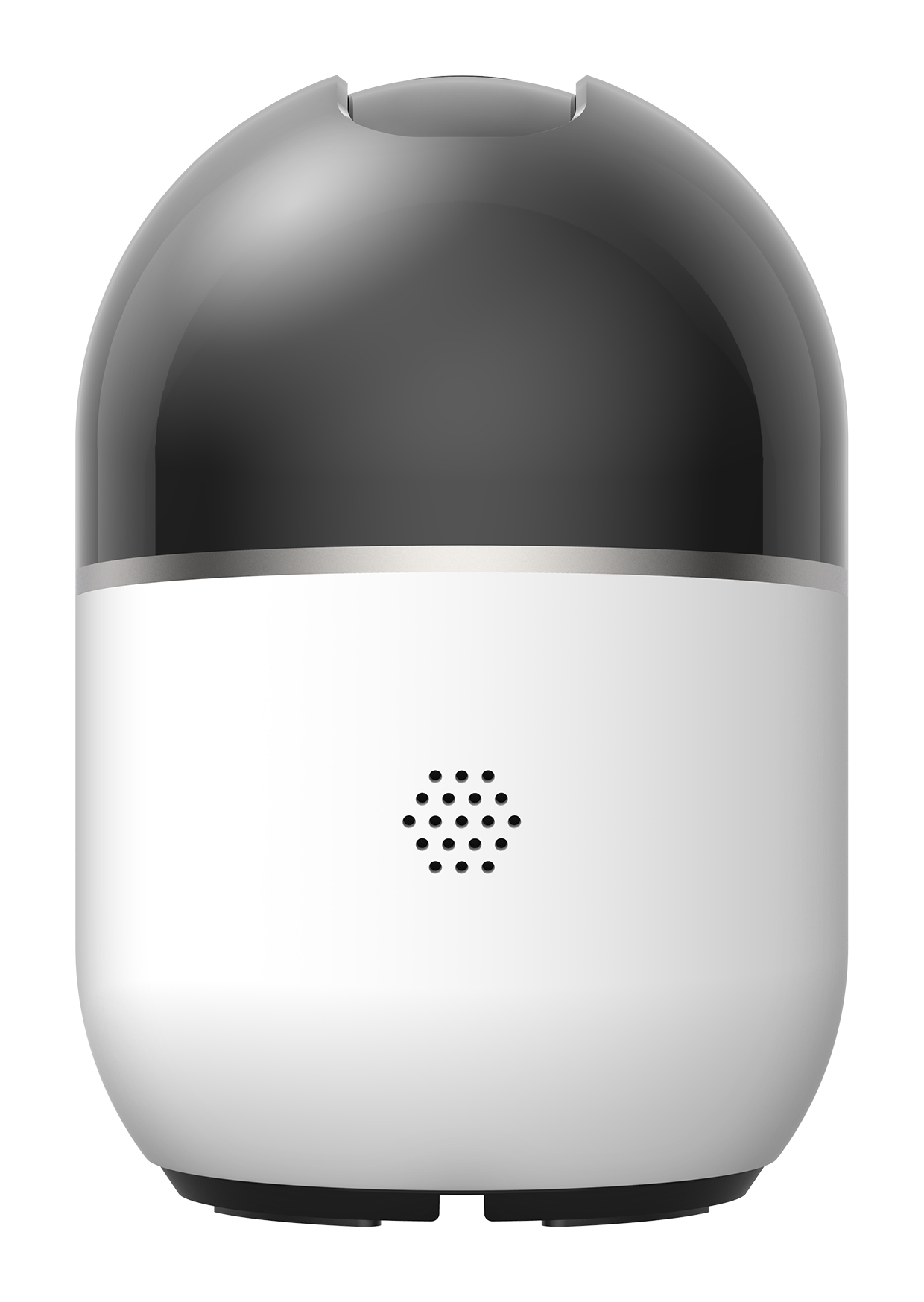

D-Link mydlink HD Pan & Tilt Wi-Fi Camera – DCS-8515LH
D-Link

mydlink HD Pan & Tilt Wi-Fi Camera – DCS-8515LH

Model DCS-8515LHEAN 790069441707

81 specifications
  • ConnectivityWireless
  • TypeIP security camera
  • Weight340 g
  • ColourBlack, White
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wireless
Type
IP security camera
Weight
340 g
Colour
Black, White
Form factor
Dome
Minimum illumination
0 lx
Brand
D-Link
Model
DCS-8515LH
Part number
DCS-8515LH
EAN / UPC
790069441707, 790069441714, 790069441738
Also known as
D-Link mydlink HD Pan & Tilt Wi-Fi Camera – DCS-8515LH

Specifications

81 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWireless
Infrared (IR) cut-off filterYes
CertificationCE, CE LVD, FCC, ICES

Design

Form factorDome
Mounting typeDesk/Wall
Product colourBlack, White

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal96°
Lens viewing angle, vertical53°
Lens viewing angle, diagonal120°
Tilt angle range-10 - 95°
Tilt speed25 °/sec
Pan range-170 - 170°
Pan speed30 °/sec

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Number of lenses1
Maximum aperture number2.2
Fixed focal length2.55 mm

Night vision

Night visionYes
Night vision distance5 m
LED typeIR

Video

Maximum resolution1280 x 720 pixels
Video compression formatsH.264
Supported video modes360p, 720p
Frame rate30 fps

Audio

Built-in speaker(s)Yes
Built-in microphoneYes
Audio detectionYes

Network

Ethernet LANNo
Wi-FiYes
BluetoothYes
Supported network protocolsIPv6 ARP/ ICMP, IPv4 ARP/ ICMP, TCP/IP, UDP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)

Security

Light sensorYes
Motion sensorYes
Security algorithmsWPA, WPA2

Power

Power source typeAC, DC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)6 W
DC output voltage5
DC output current1.2 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width88 mm
Depth88 mm
Height128.5 mm
Weight340 g

Packaging data

Package width172 mm
Package depth274 mm
Package height118 mm
Package weight842 g

Packaging content

Number of cameras1
Wall mounting kitYes

Logistics data

Harmonized System (HS) code85258900
Master (outer) cases per pallet (air)40 pc(s)
Master (outer) cases per pallet (sea)60 pc(s)
Pallet gross length120 cm
Pallet gross weight (air)210.4 kg
Pallet gross weight (sea)306.6 kg
Pallet gross width110 cm
Pallet height (air)135.5 cm
Pallet height (sea)196.5 cm
Products per pallet (air)200 pc(s)
Products per pallet (sea)300 pc(s)
Shipping (inner) case gross weight4.81 kg
Shipping (inner) case height30.5 cm
Shipping (inner) case length61.6 cm
Shipping (inner) case net weight4.21 kg
Shipping (inner) case width18.8 cm
Products per shipping (inner) case5 pc(s)
