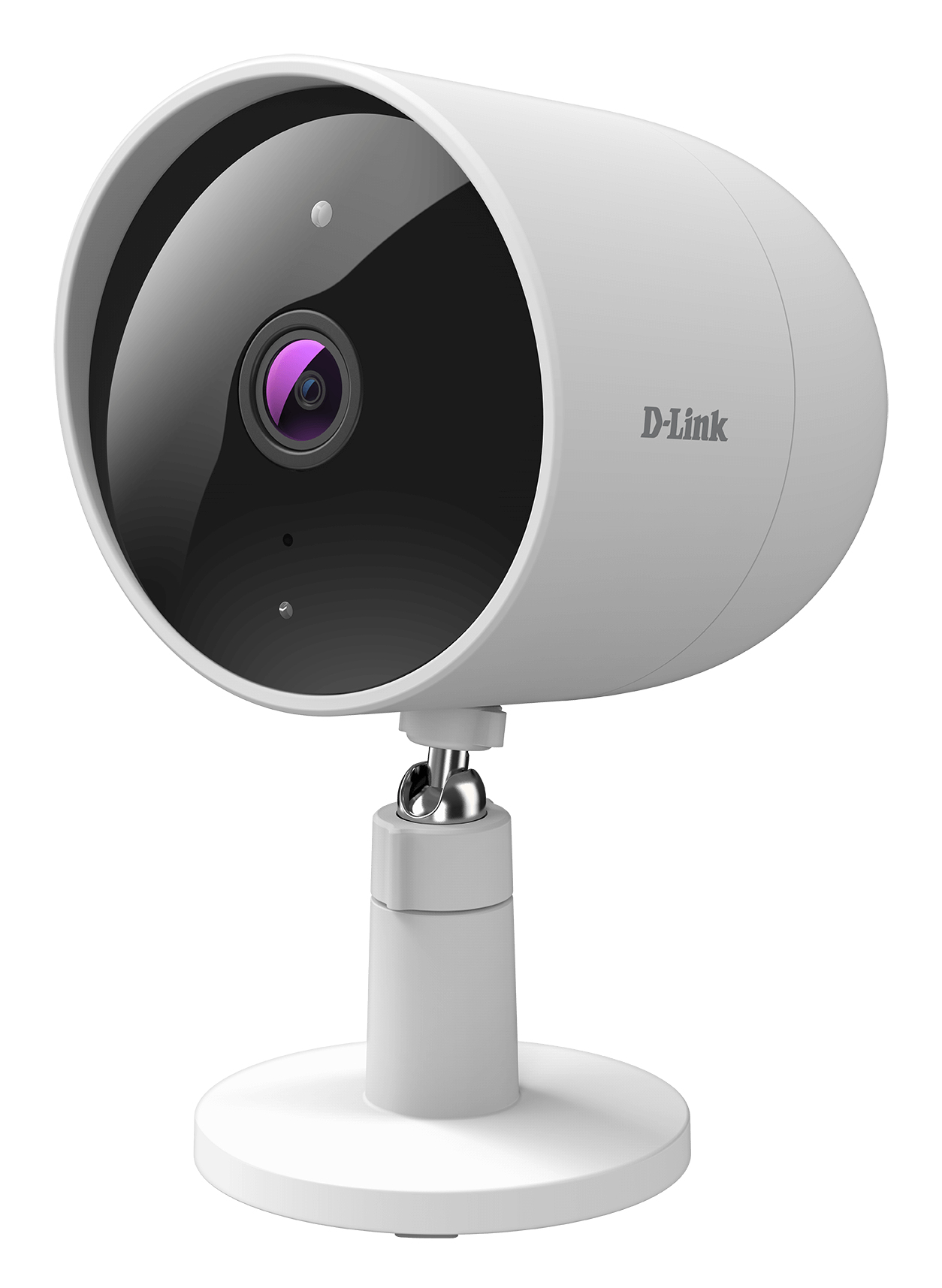

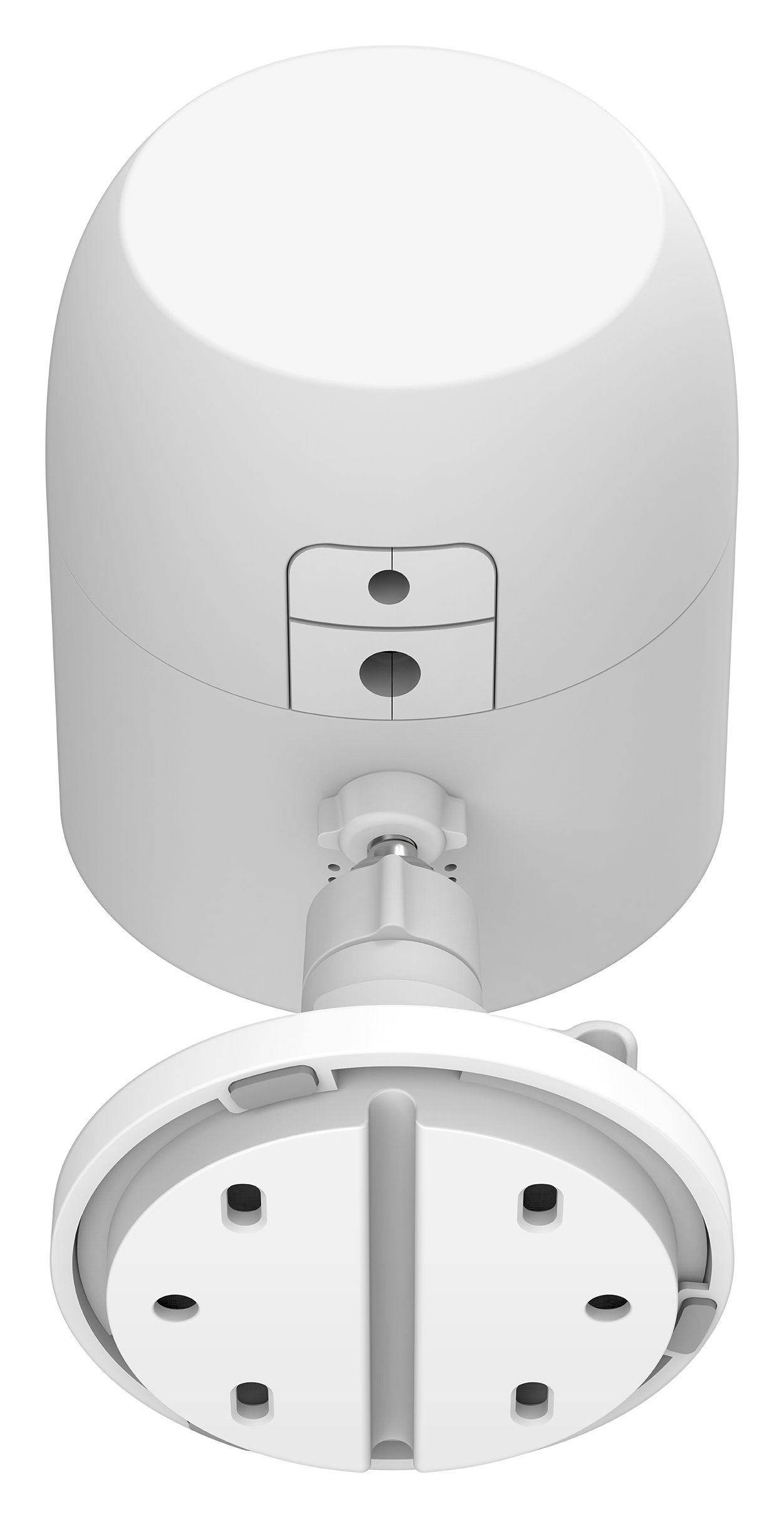

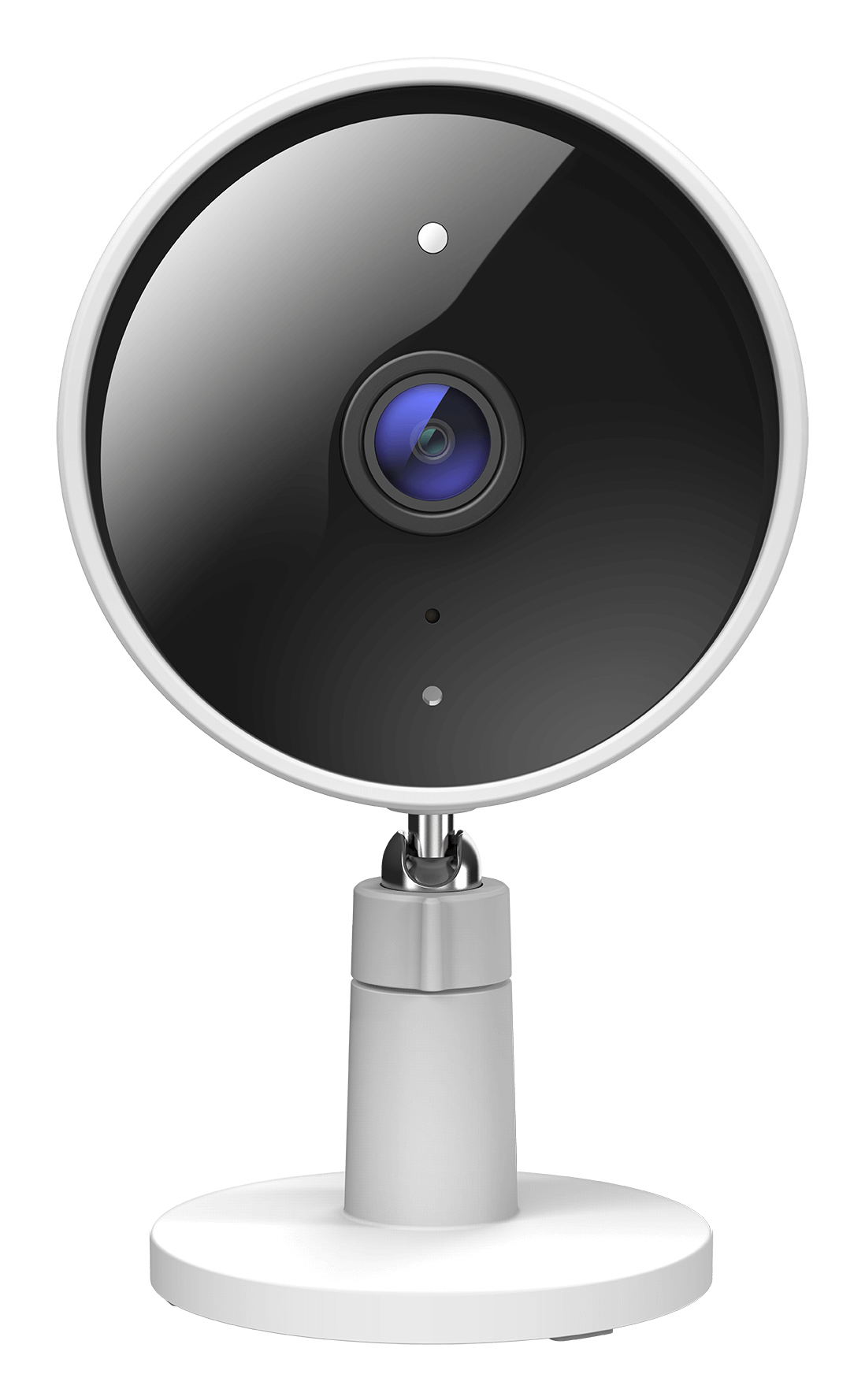

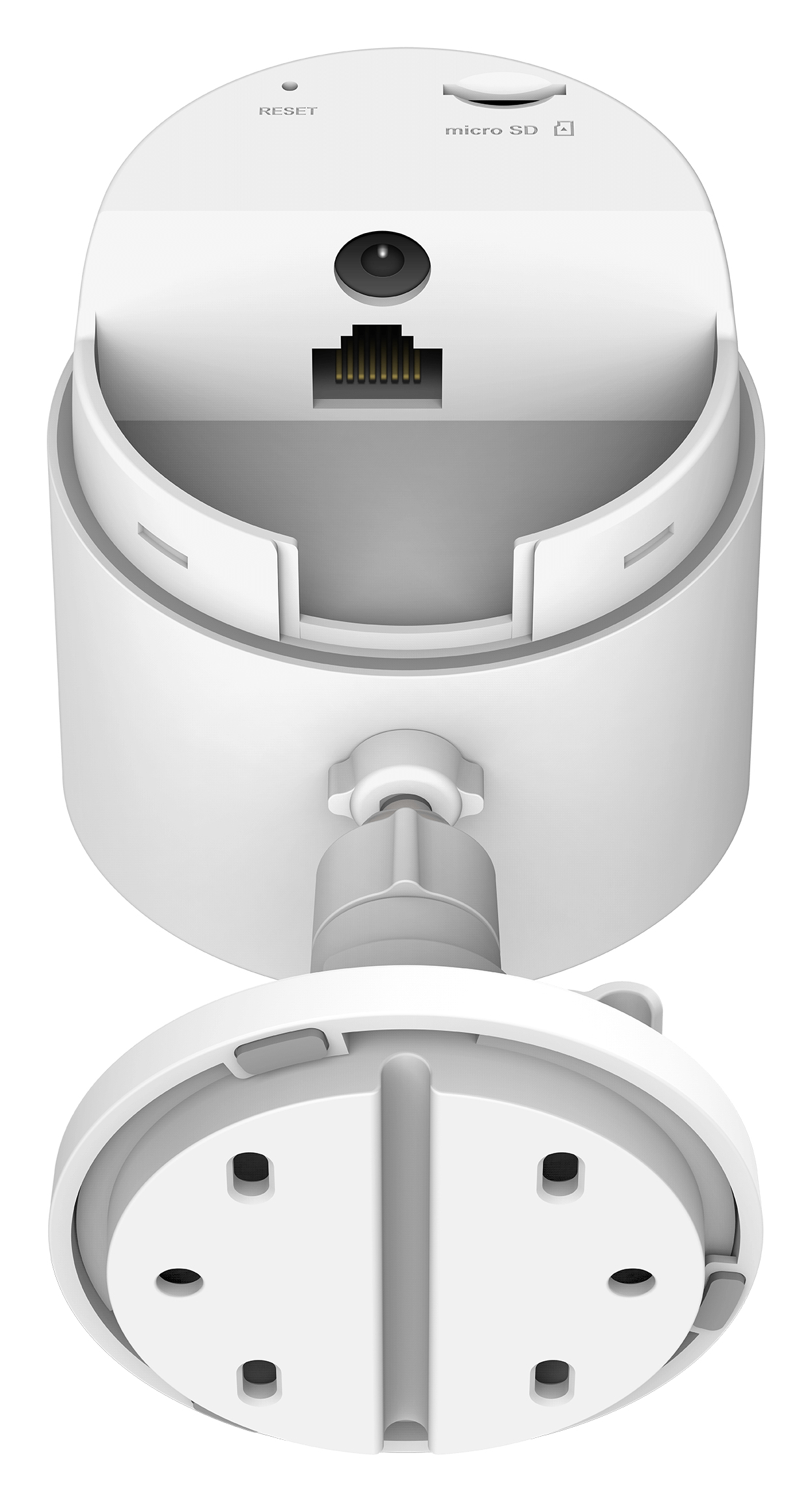

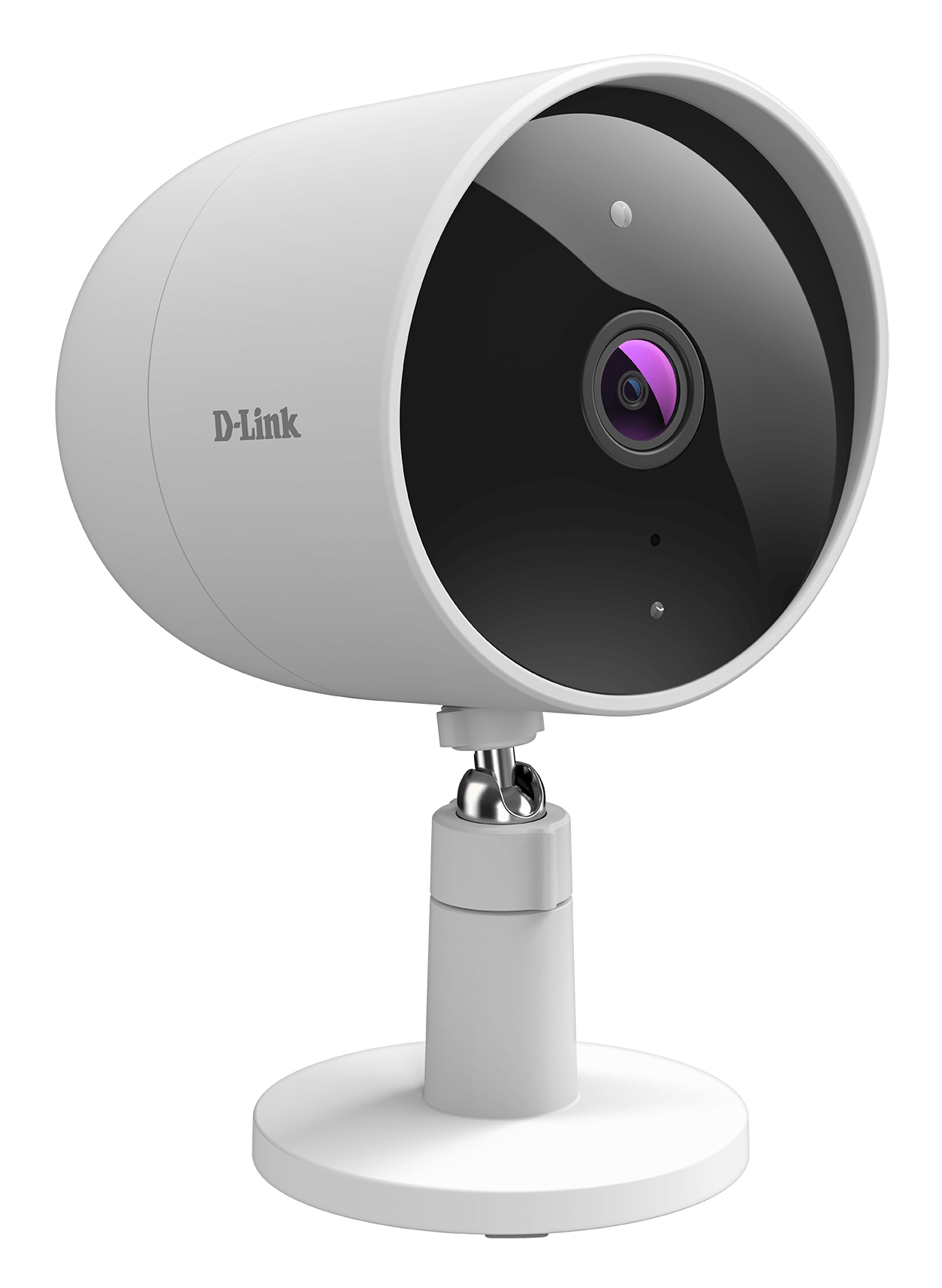

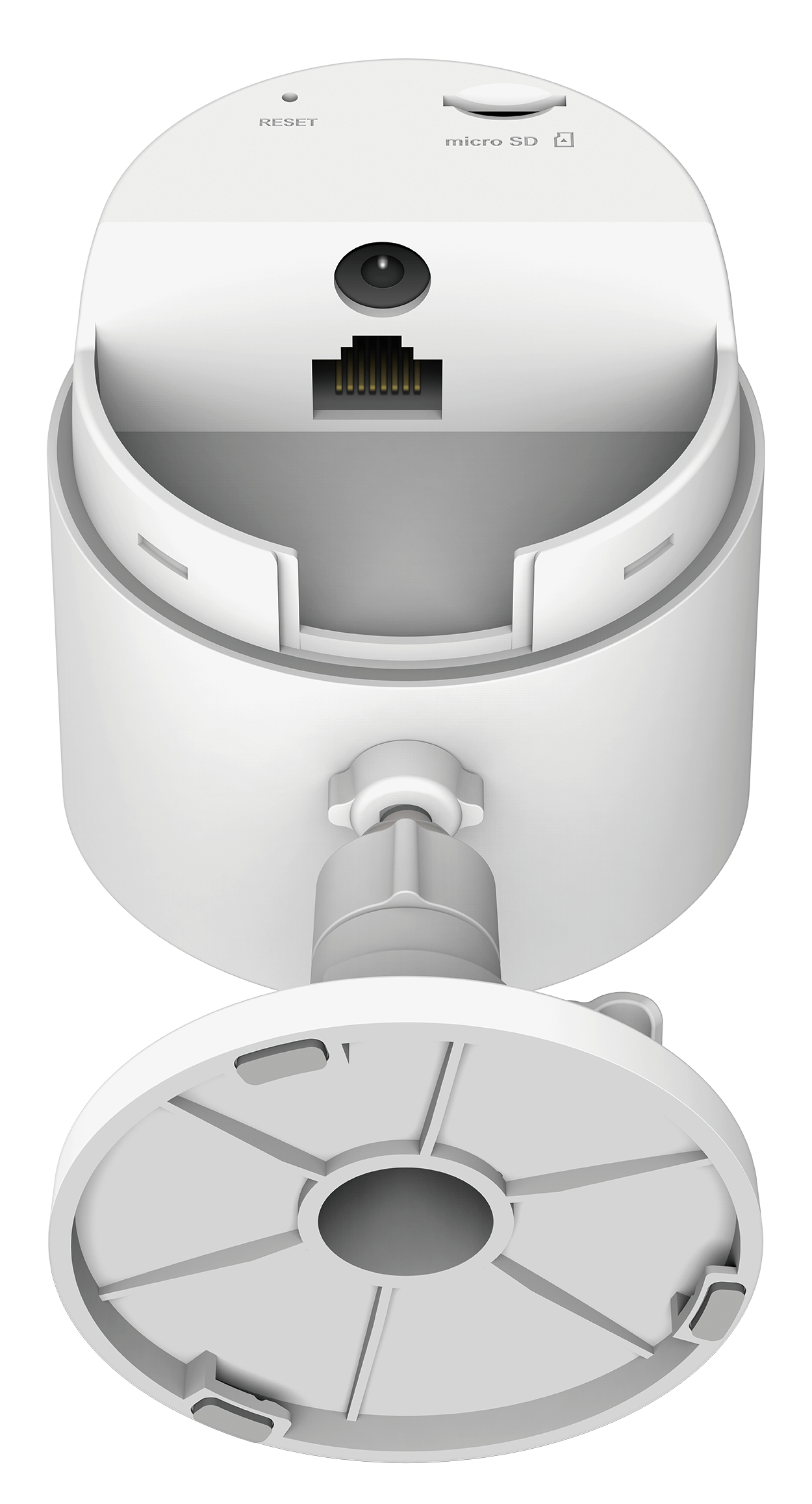

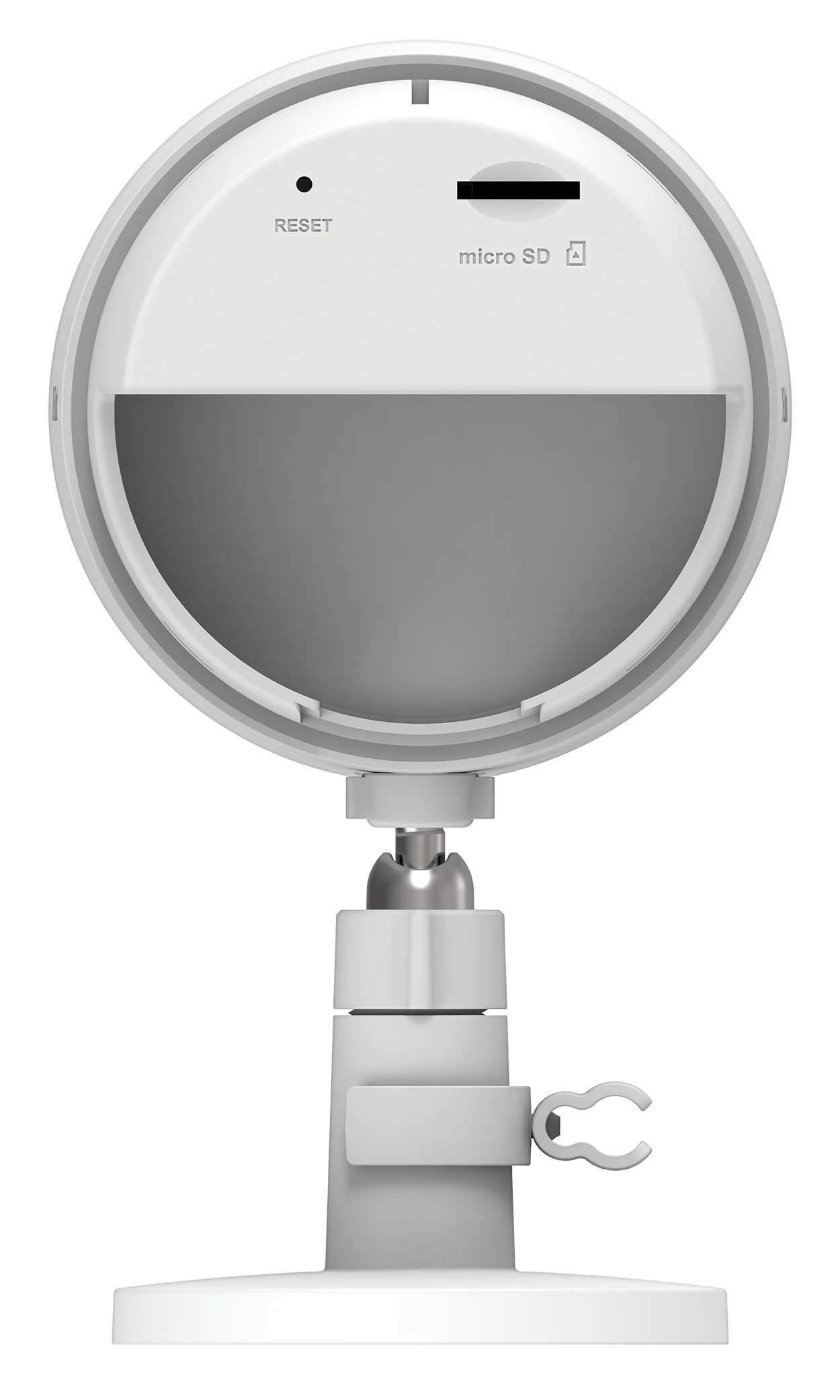

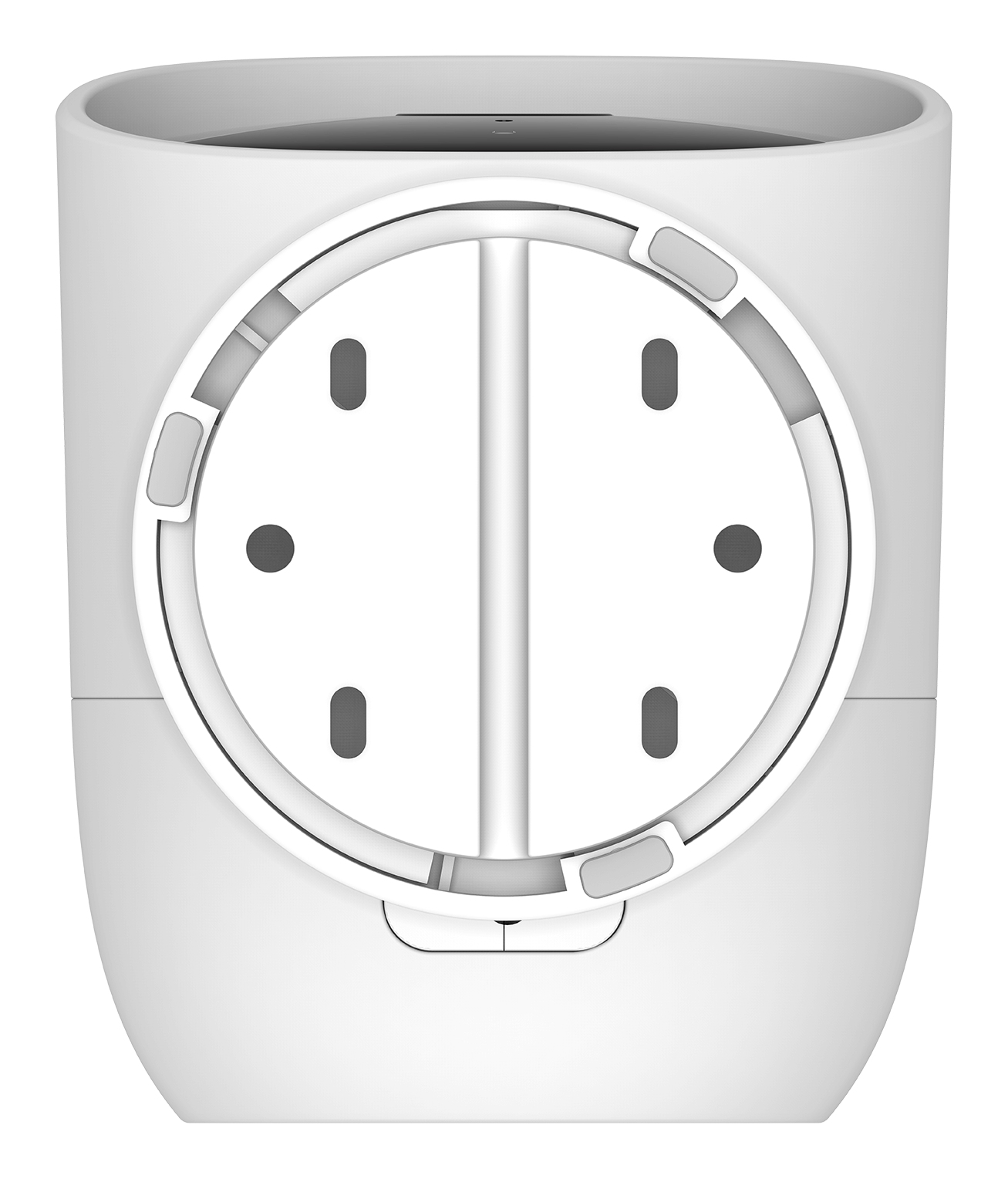

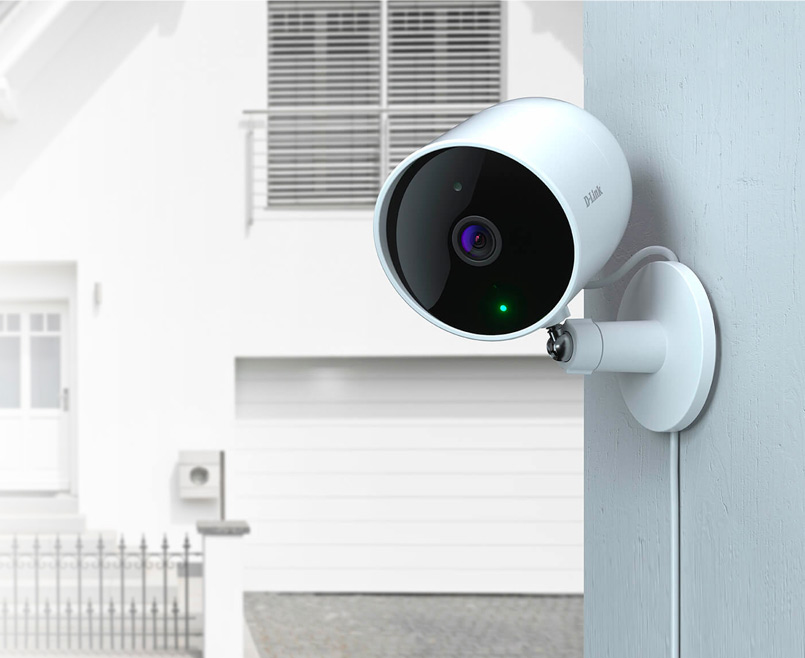

Full HD Outdoor Wi‑Fi Camera DCS‑8302LH
Model DCS-8302LHEAN 790069453472
61 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight250 g
- ColourWhite
- Form factorBullet
- Field of view (FOV) angle135°
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 250 g
- Colour
- White
- Form factor
- Bullet
- Field of view (FOV) angle
- 135°
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-8302LH
- Part number
- DCS-8302LH
- EAN / UPC
- 790069453472, 790069455124, 790069456985
- Also known as
- D-Link Full HD Outdoor Wi‑Fi Camera DCS‑8302LH
Specifications
61 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired & Wireless |
| PTZ control | No |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Certification | CE, LVD, RCM, FCC Class B, IC, NCC/BSMI |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 135° |
| Lens viewing angle, horizontal | 109° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 135° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 3 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 5 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264 |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio codecs | MPEG-2 AAC LC |
| Built-in microphone | Yes |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Networking standards | IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | IPv4, IPv6 dual stack, Bonjour (mDNS and DNS-SD), ONVIF Profile S, RTSP, SRTP (D-Link private), HTTPS |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Alert notification type | Snapshot alert message |
| Motion sensor | Yes |
| Motion sensor technology | Passive infrared (PIR) sensor |
| Security algorithms | WPA3 |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Remotely operated | Yes |
| Management software | mydlink app |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 7 W |
| DC output voltage | 12 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 74 mm |
| Depth | 88 mm |
| Height | 138 mm |
| Weight | 250 g |
| Cable length | 3 m |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
