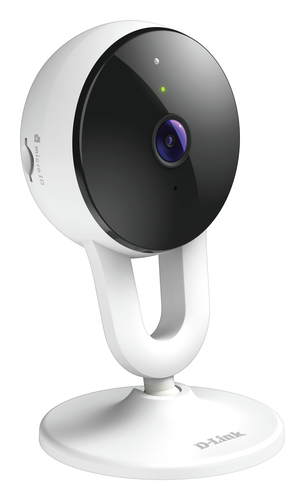

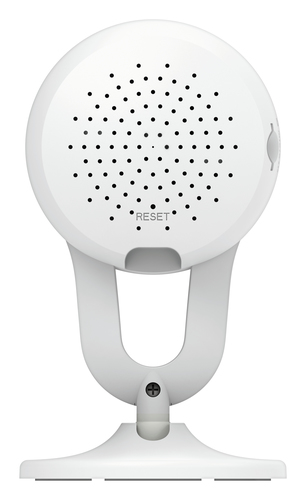

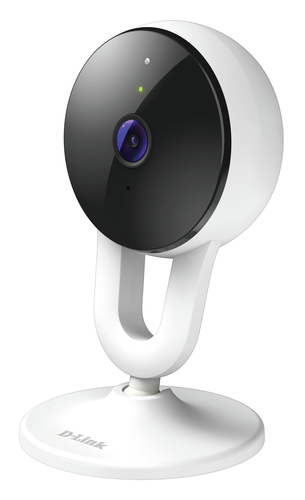

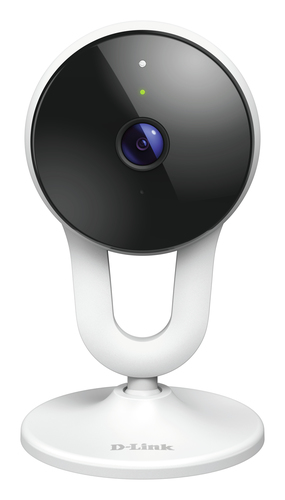

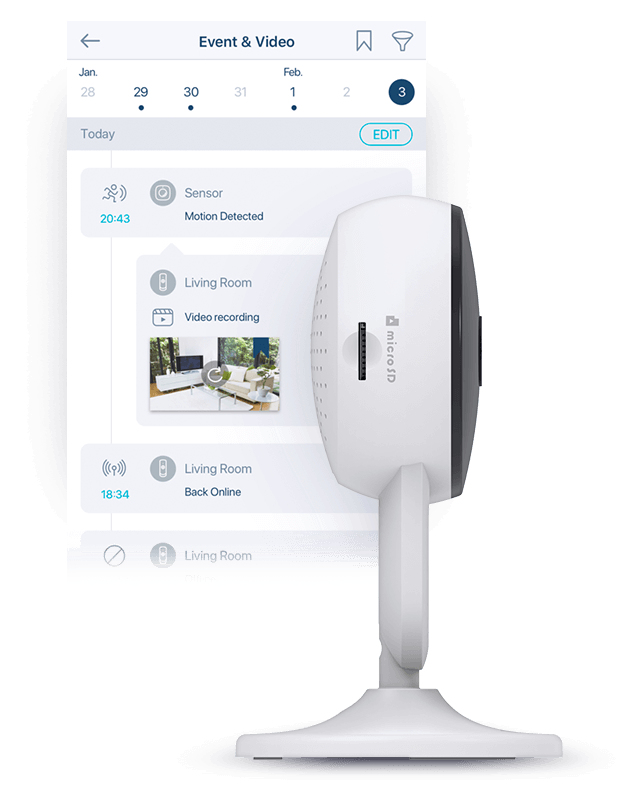

Full HD Wi‑Fi Camera
Model DCS-8300LHV2EAN 790069457296
62 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight80 g
- ColourWhite
- Mounting typeDesk
- Angle of rotation360°
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 80 g
- Colour
- White
- Mounting type
- Desk
- Angle of rotation
- 360°
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-8300LHV2
- Part number
- DCS-8300LHV2
- EAN / UPC
- 790069457296, 790069457302, 790069459986
- Also known as
- D-Link Full HD Wi‑Fi Camera
Specifications
62 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Virtual assistant | Amazon Alexa & Google Assistant |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE, FCC, IC, RCM, NCC, BSMI |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk |
| Product colour | White |
| LED indicators | Status |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 52° |
| Lens viewing angle, diagonal | 120° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2.2 |
| Fixed focal length | 3.18 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 5 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | MPEG2 |
| Video compression formats | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Video recording | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio formats supported | LC-AAC |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Supported network protocols | IPv4, IPv6, DHCP/DHCPv6 Client, Bonjour (mDNS and DNS-SD), ONVIF Profile S, RTSP, SRTP, RTP/SRTP, HTTPS |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|

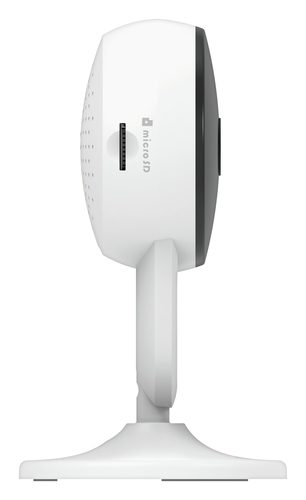

| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Alert notification type | Snapshot alert message, Text alert message |
| Motion sensor | Yes |
| Security algorithms | WPA3 |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 5 W |
| DC output voltage | 5 |
| DC output current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 112 mm |
| Height | 65 mm |
| Weight | 80 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Other features
| Specification | Value |
|---|---|
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 4.2 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
