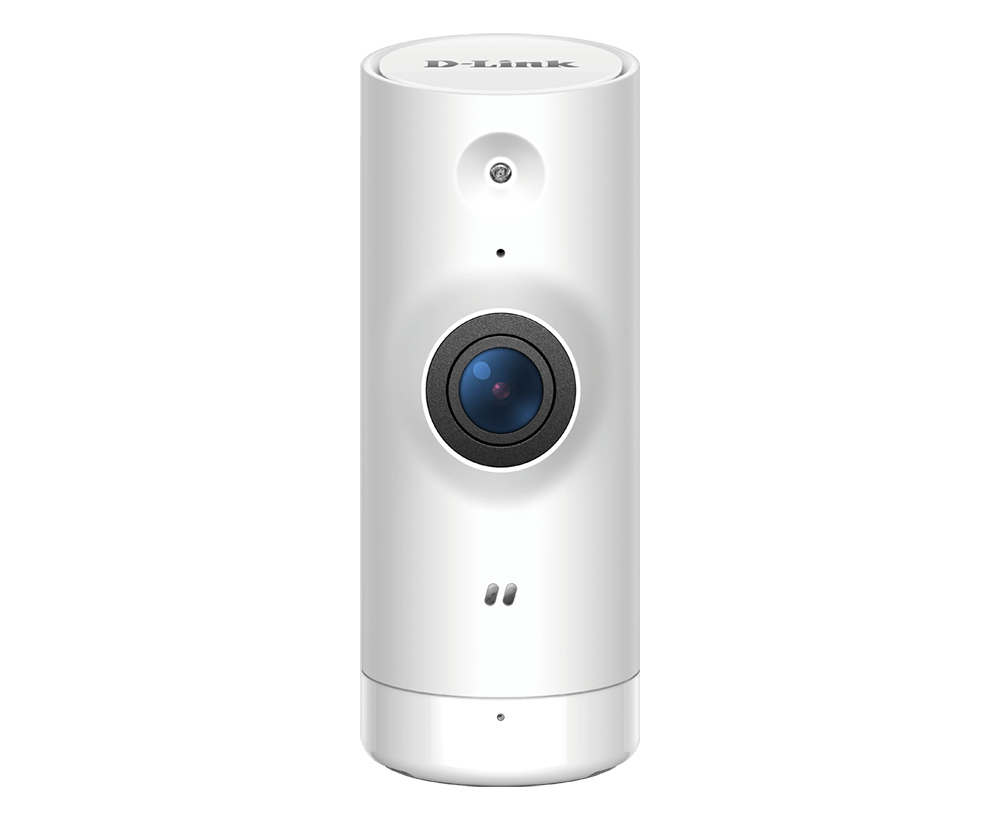

DCS-8000LHV2 IP security camera Indoor
1920 x 1080 pixels Desk/Wall
Model DCS-8000LHV2Part no. DCS-8000LHV2/EEAN 790069450747
55 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight59 g
- ColourWhite
- Mounting typeDesk/Wall
- Minimum illumination0 lx
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 59 g
- Colour
- White
- Mounting type
- Desk/Wall
- Minimum illumination
- 0 lx
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-8000LHV2
- Part numbers
- DCS-8000LHV2/E, DCS-8000LHV2
- EAN / UPC
- 790069450747, 790069450877
- Also known as
- D-Link DCS-8000LHV2 IP security camera Indoor 1920 x 1080 pixels Desk/Wall
Specifications
55 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Certification | CE, LVD, FCC Class B, IC, RCM, NCC |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk/Wall |
| Product colour | White |
| LED indicators | Status |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 113° |
| Lens viewing angle, vertical | 58° |
| Lens viewing angle, diagonal | 138° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 2.2 |
| Fixed focal length | 3.28 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 5 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, LC-AAC |
| Built-in microphone | Yes |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Supported network protocols | IPv4, IPv6, DHCP, Bonjour (mDNS and DNS-SD), ONVIF Profile S, RTSP, RTCP, RTP/SRTP, HTTPS |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Alert notification type | Snapshot alert message, Text alert message |
| Motion sensor | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 37 mm |
| Height | 95 mm |
| Weight | 59 g |
| Cable length | 1.5 m |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
