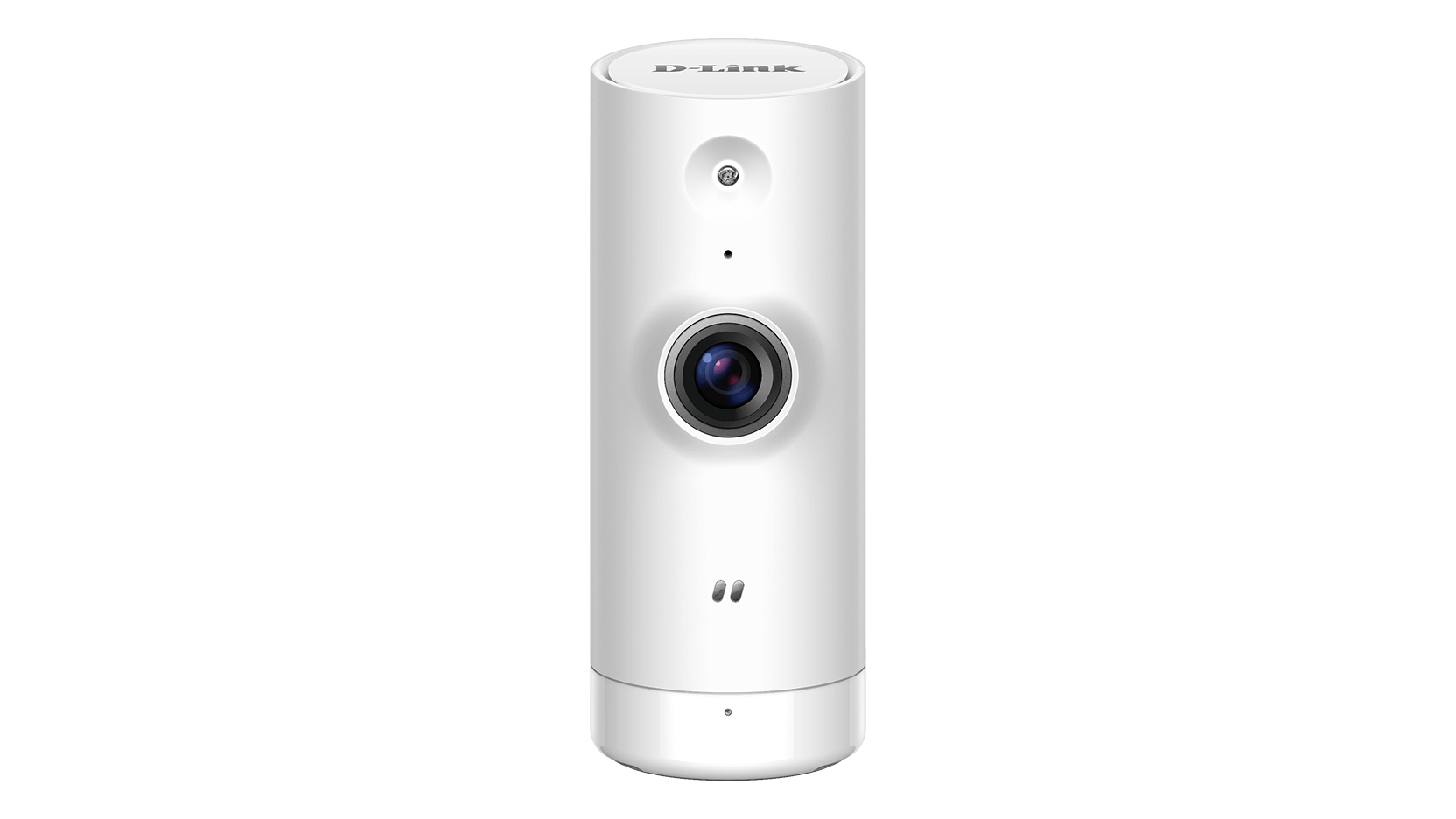

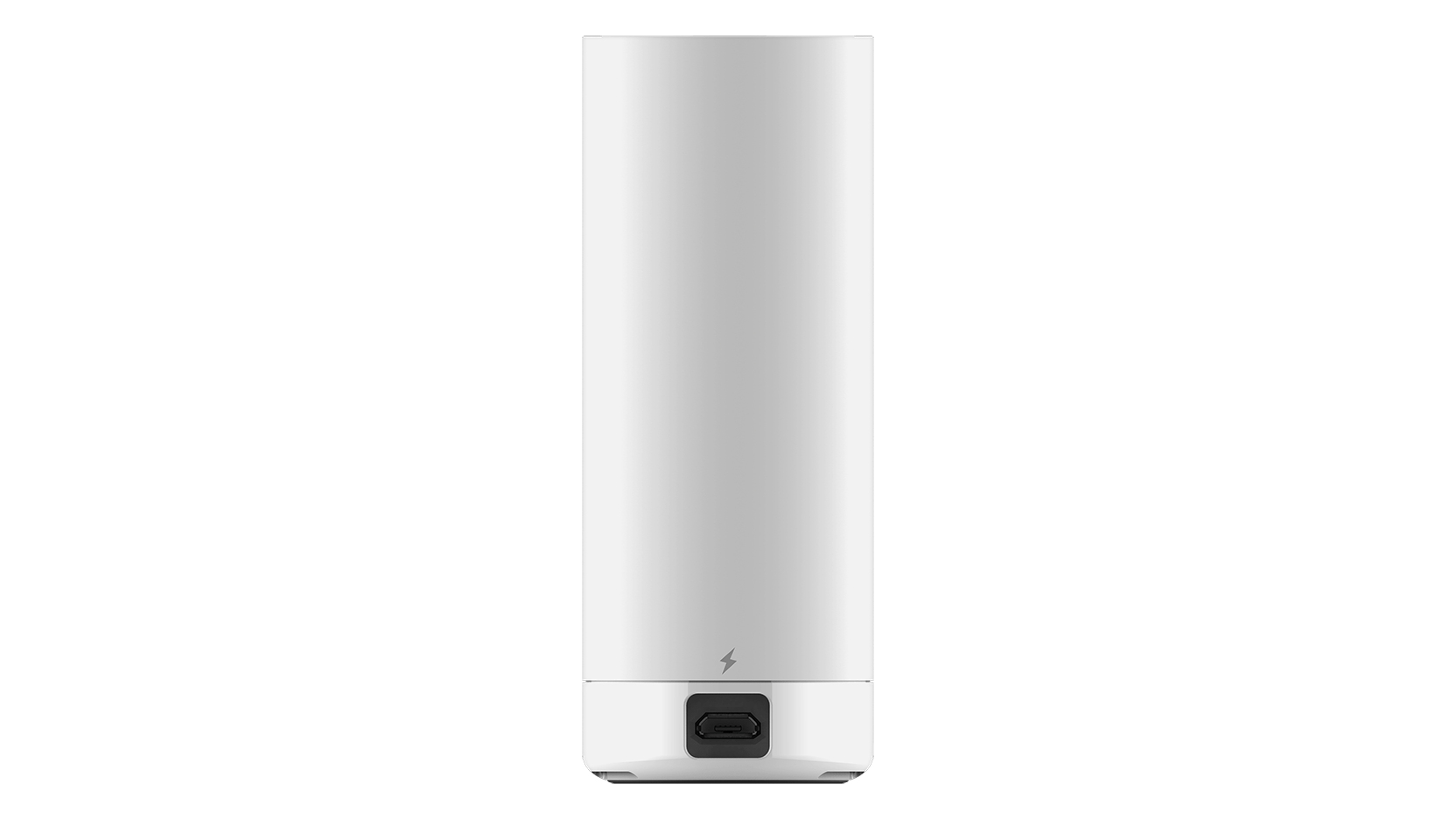

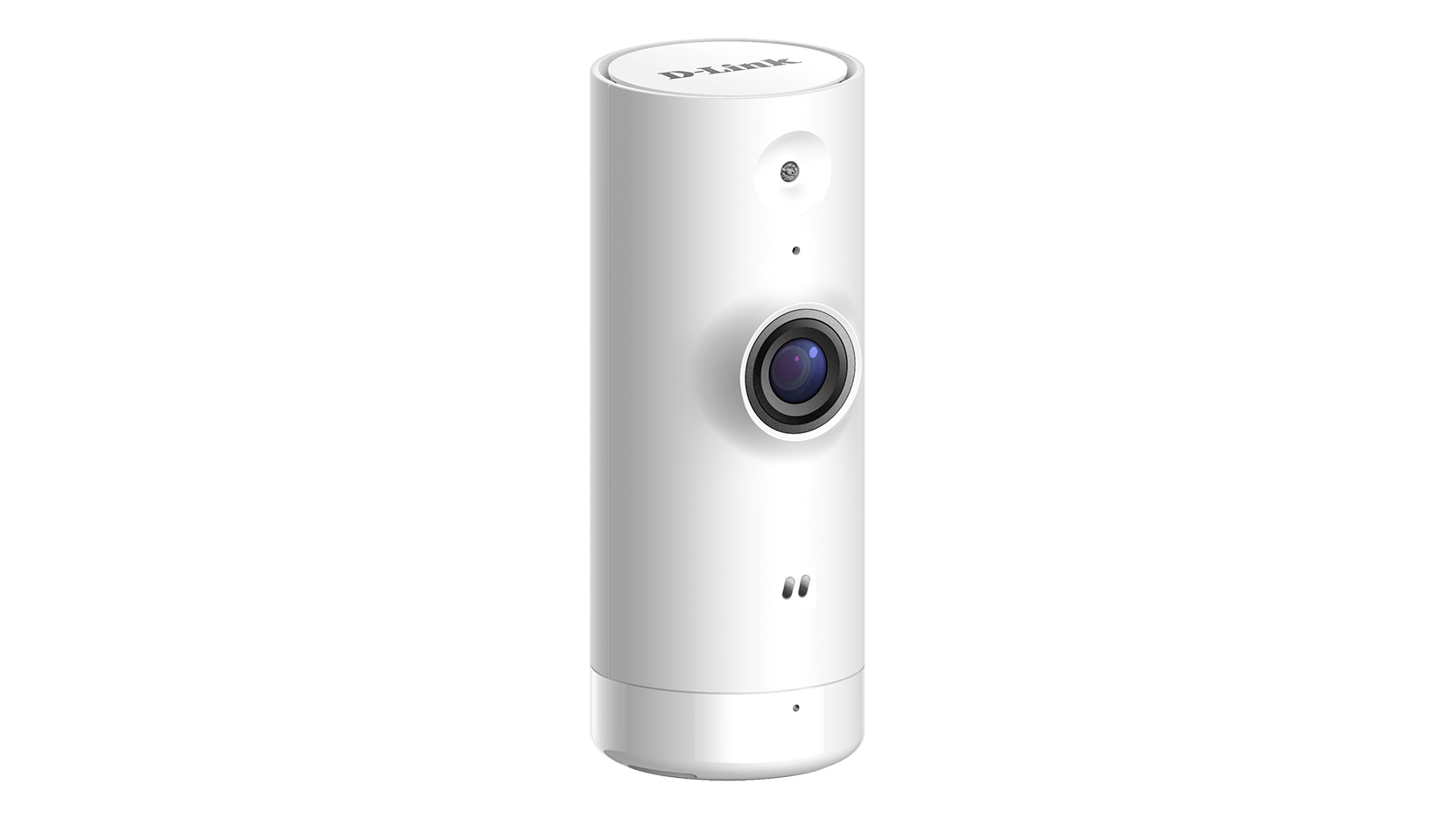

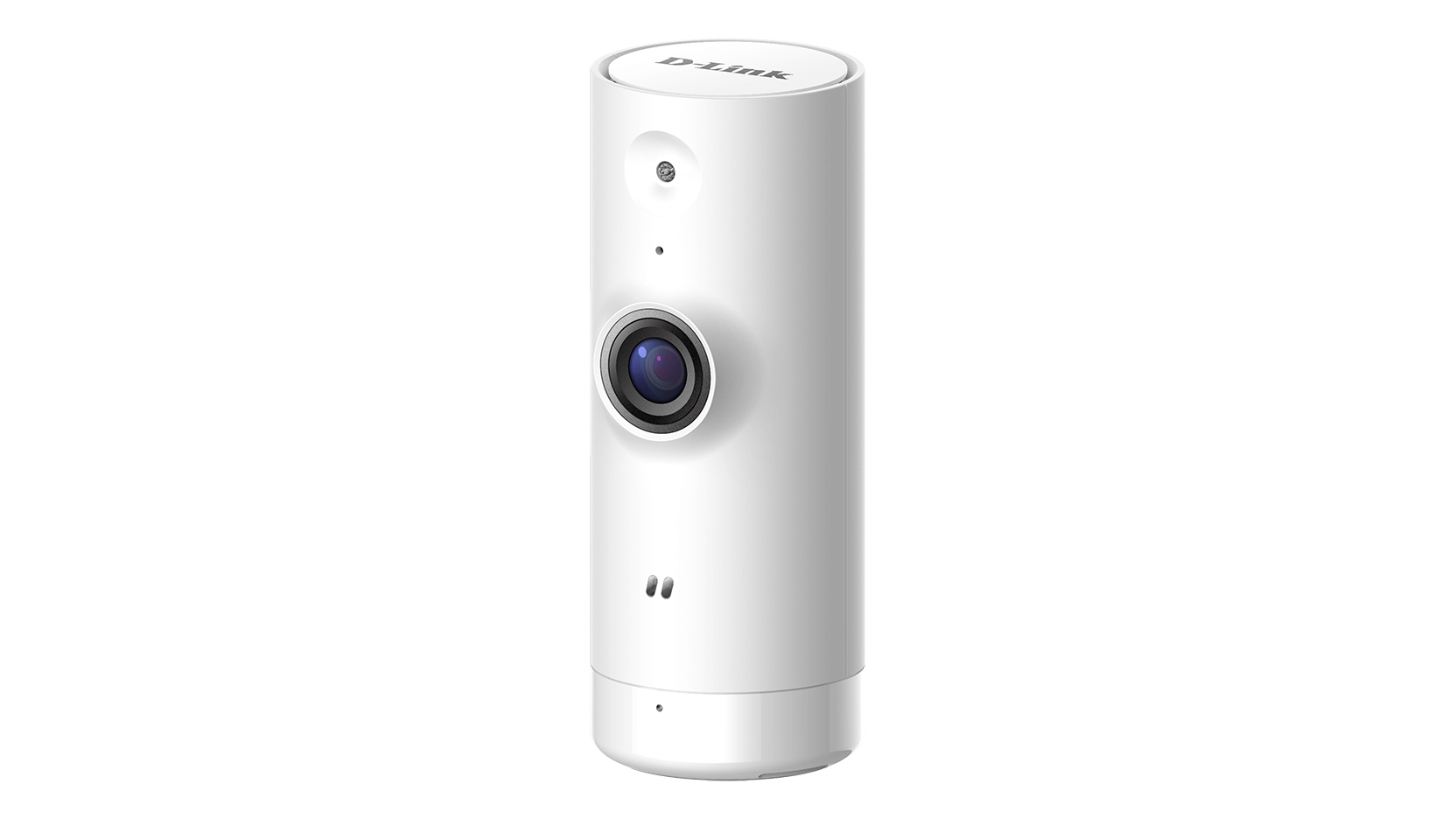

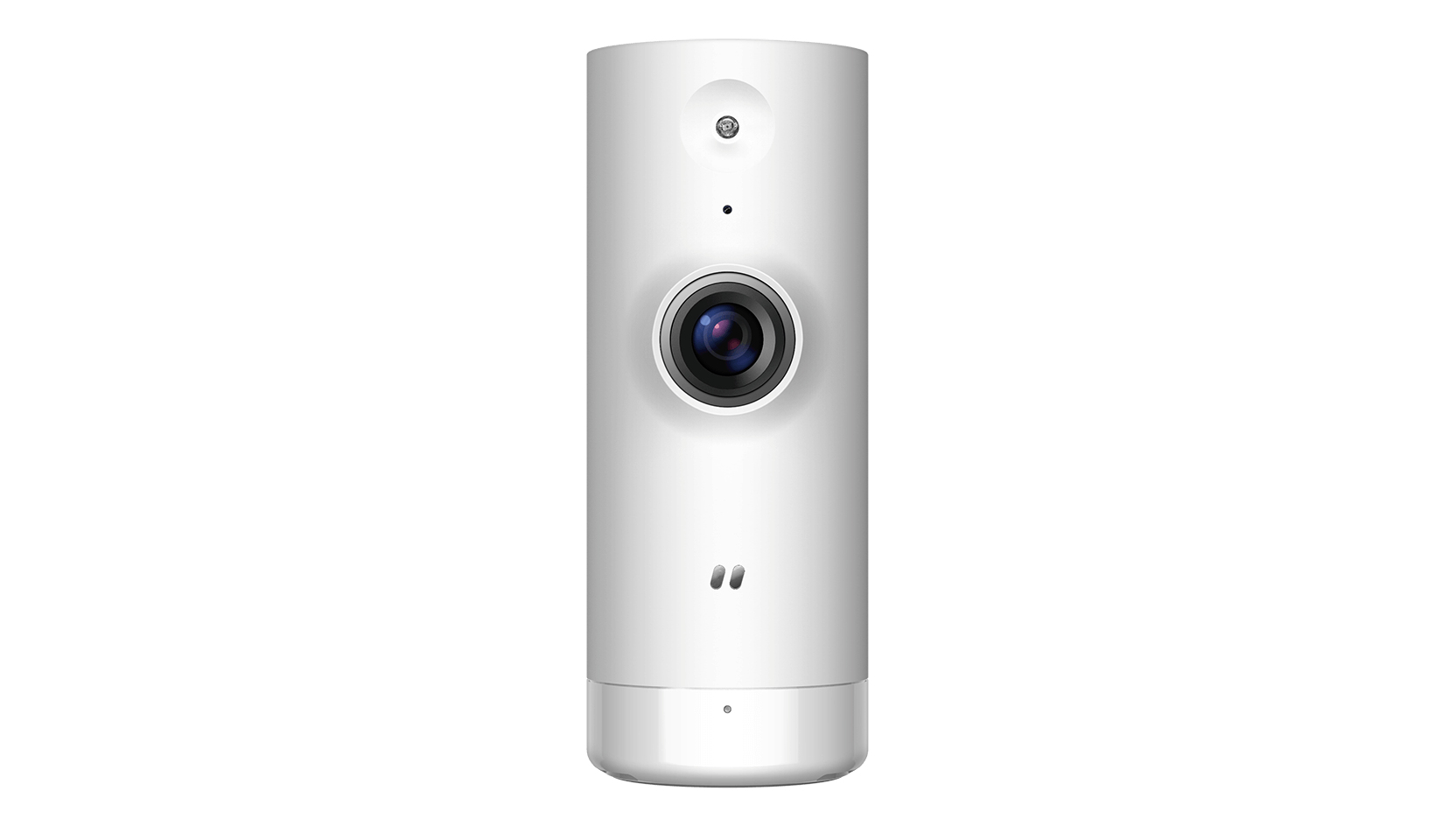

DCS‑8000LH security camera IP security camera Indoor
1280 x 720 pixels Desk/Wall
Model DCS‑8000LH
61 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight57.7 g
- ColourWhite
- Mounting typeDesk/Wall
- Camera pan controlNo
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 57.7 g
- Colour
- White
- Mounting type
- Desk/Wall
- Camera pan control
- No
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS‑8000LH
- Part number
- DCS‑8000LH
- Also known as
- D-Link DCS‑8000LH security camera IP security camera Indoor 1280 x 720 pixels Desk/Wall
Specifications
61 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Antenna type | Internal |
| Certification | CE, ICES, CE LVD, FCC |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk/Wall |
| Product colour | White |
| LED indicators | Status |
Camera
| Specification | Value |
|---|---|
| Camera pan control | No |
| Camera tilt control | No |
| Lens viewing angle, horizontal | 112° |
| Lens viewing angle, vertical | 54° |
| Lens viewing angle, diagonal | 120° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 4x |
| Fixed focus | Yes |
| Maximum aperture number | 2.4 |
| Minimum aperture number | 2.4 |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.45 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 5 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1 MP |
| Video compression formats | H.264 |
| Supported video modes | 720p |
| Frame rate | 30 fps |
| Text caption overlay | Yes |
| Time stamp overlay | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 4 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 38 mm |
| Depth | 35 mm |
| Height | 92 mm |
| Weight | 57.7 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | Micro-USB |
