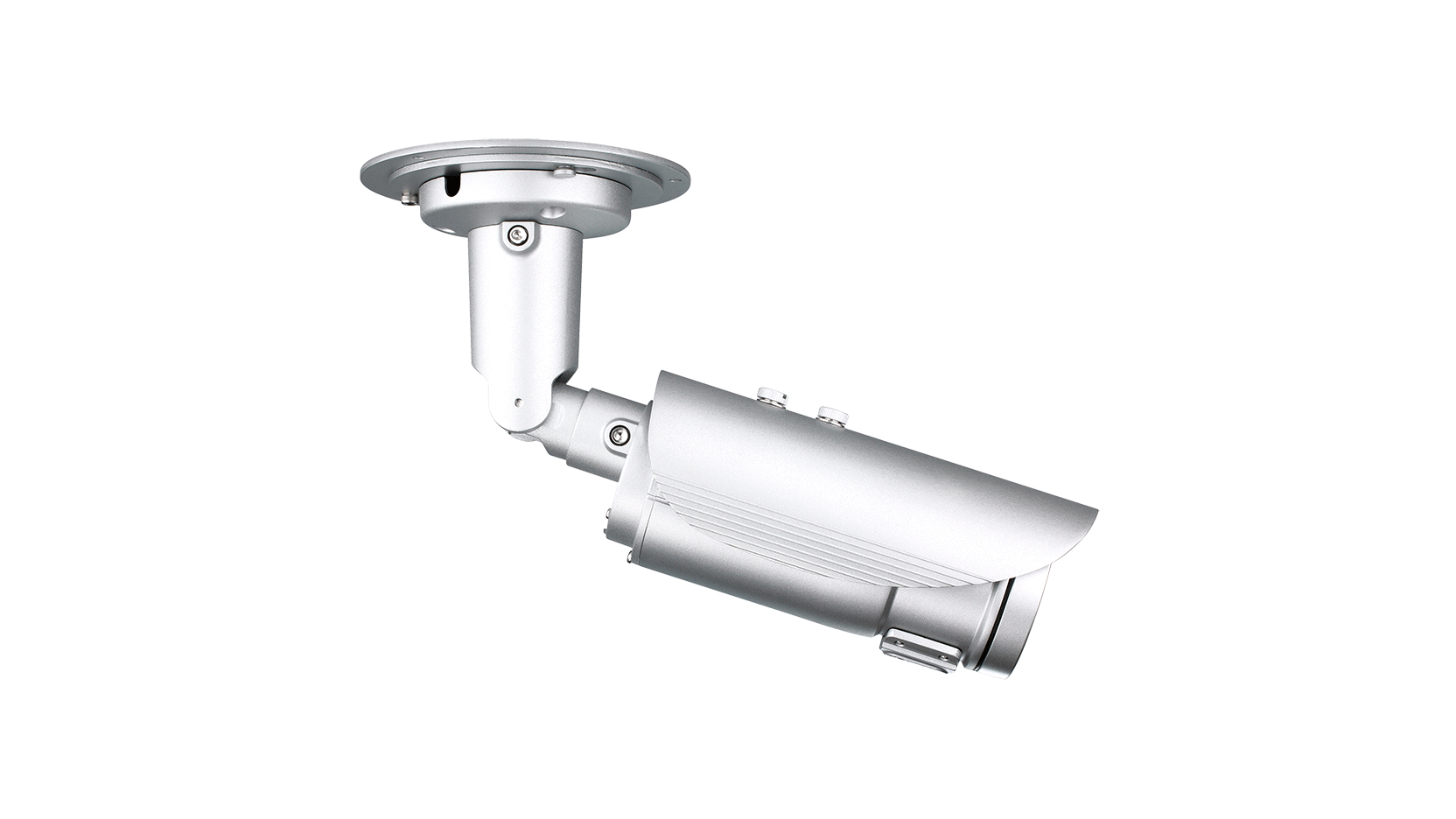

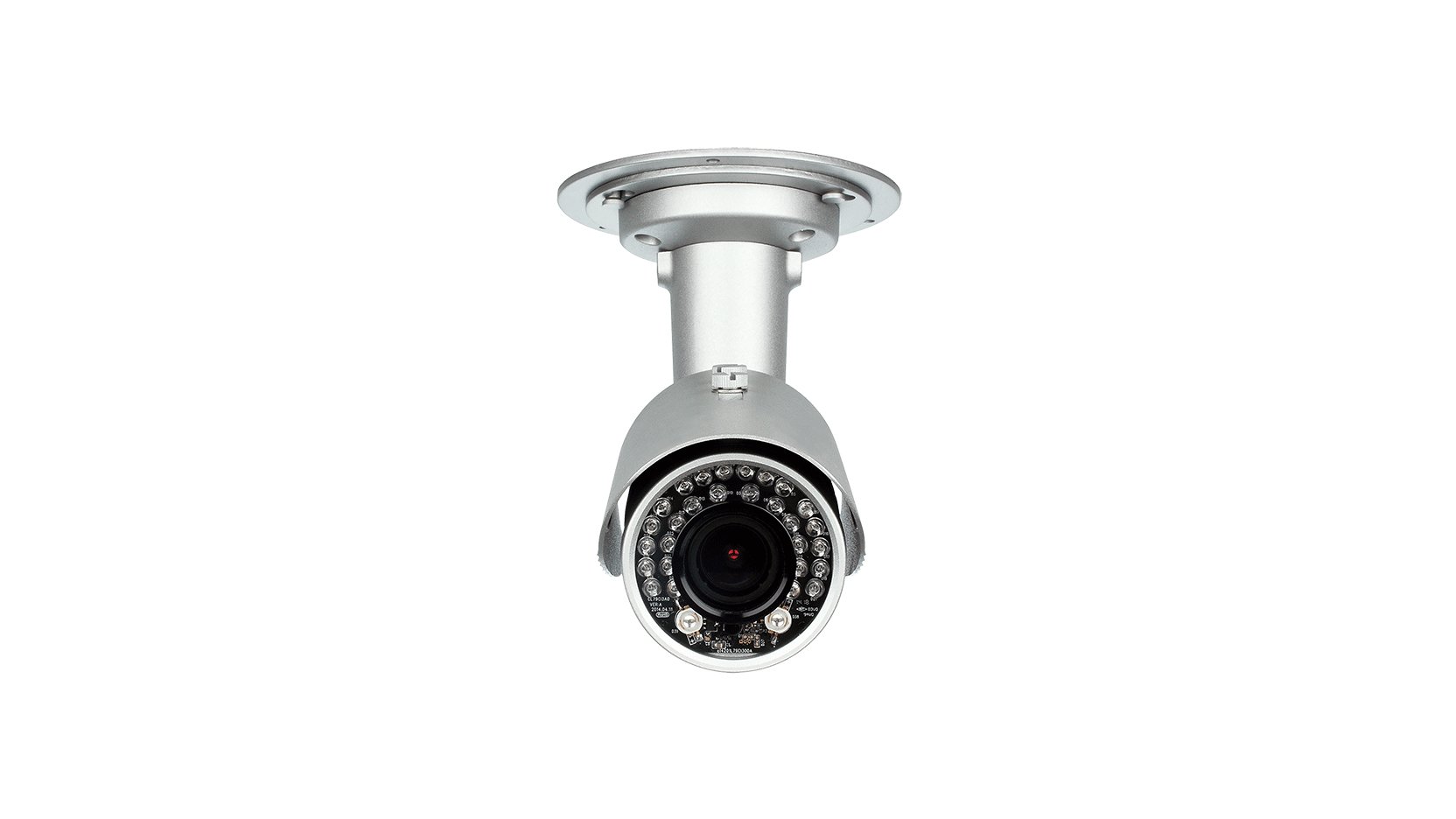

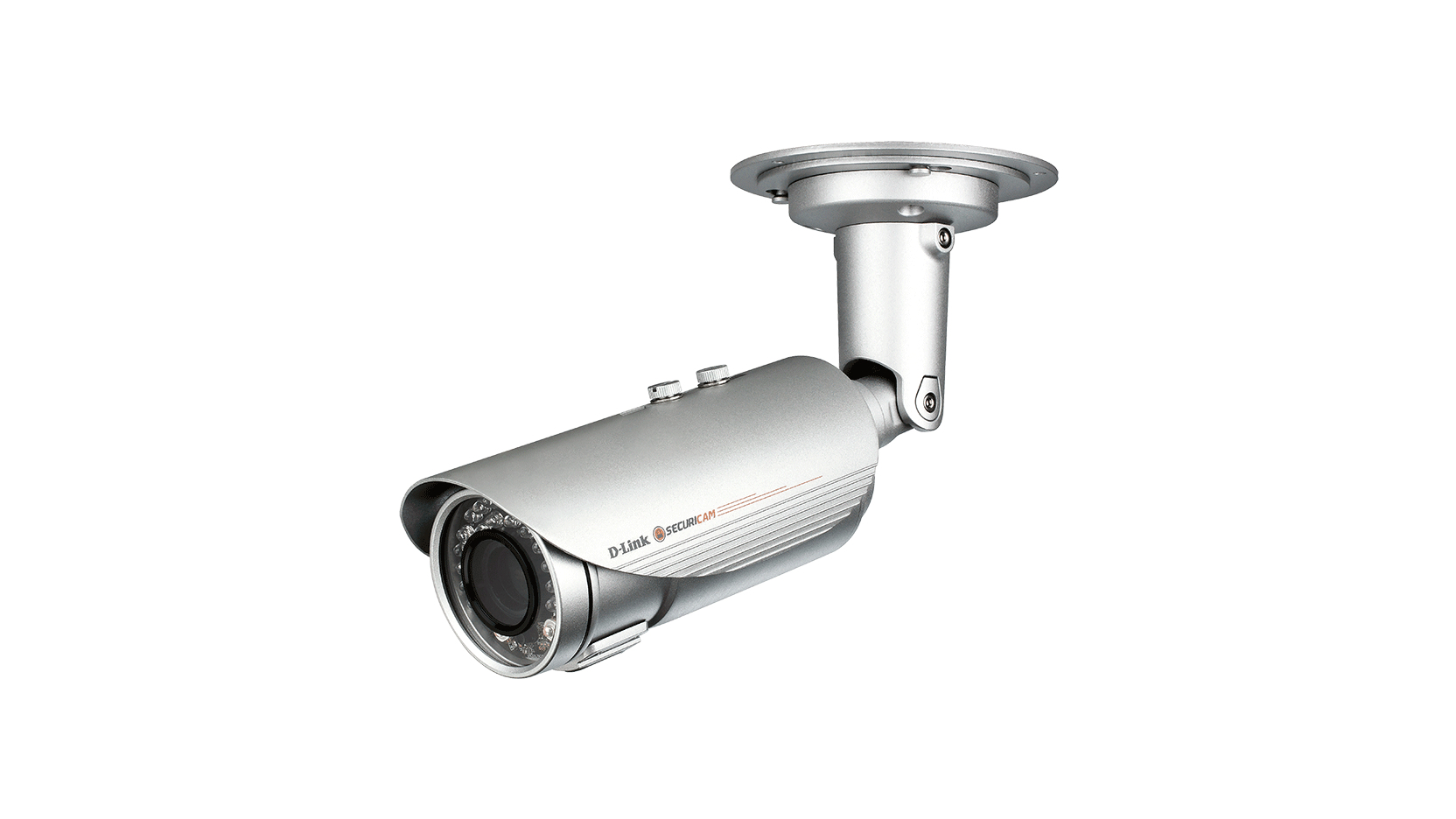

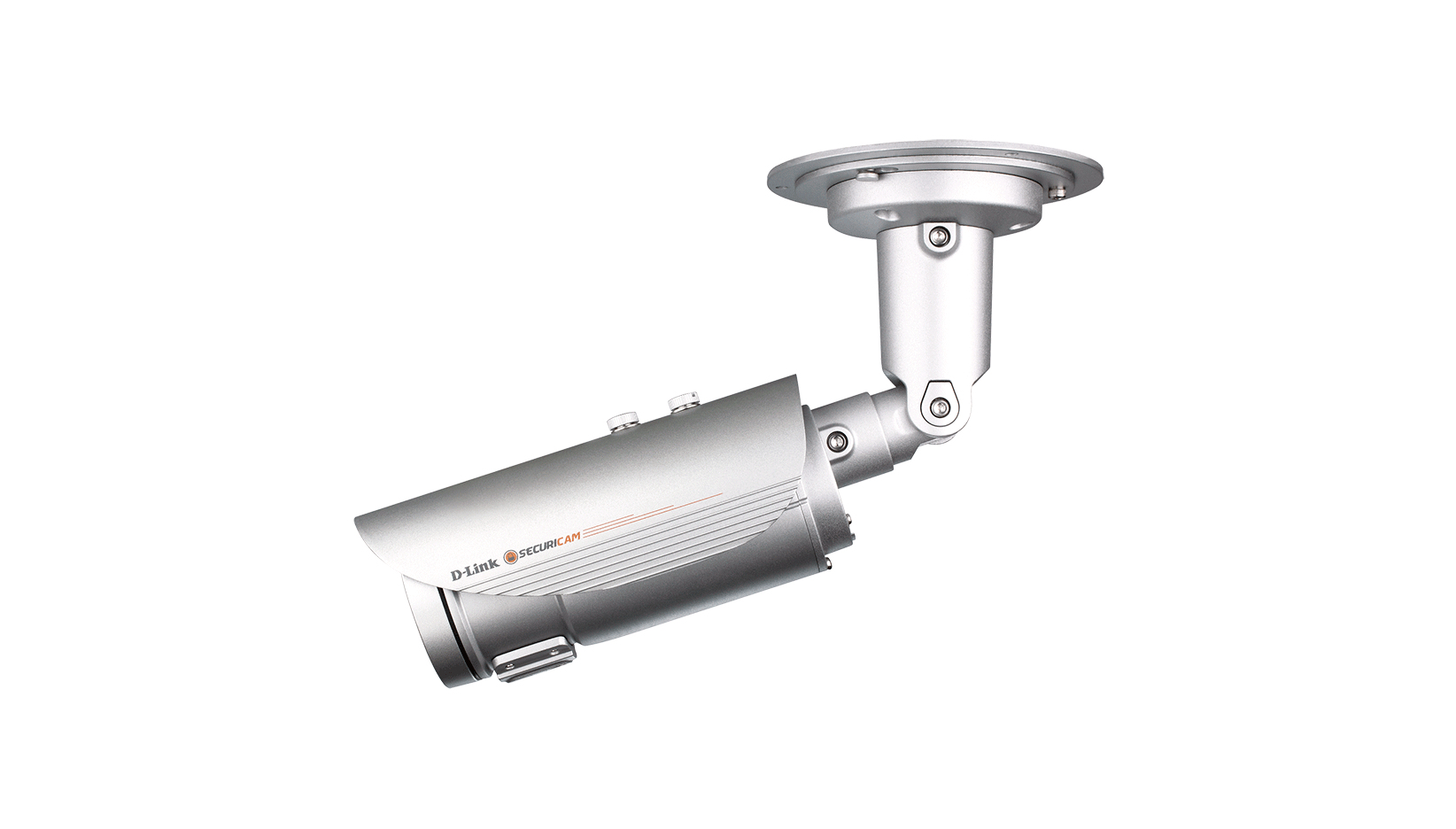

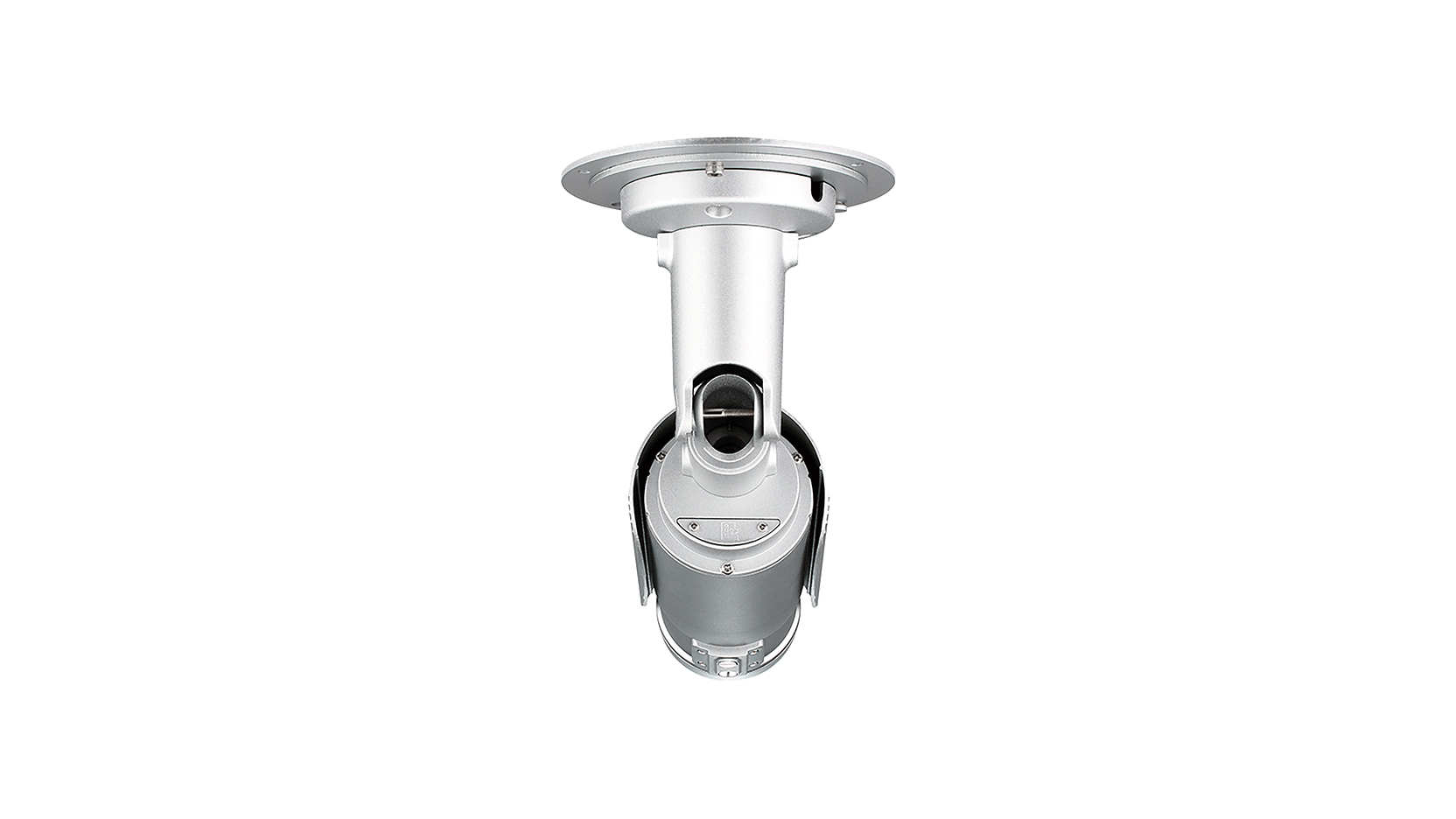

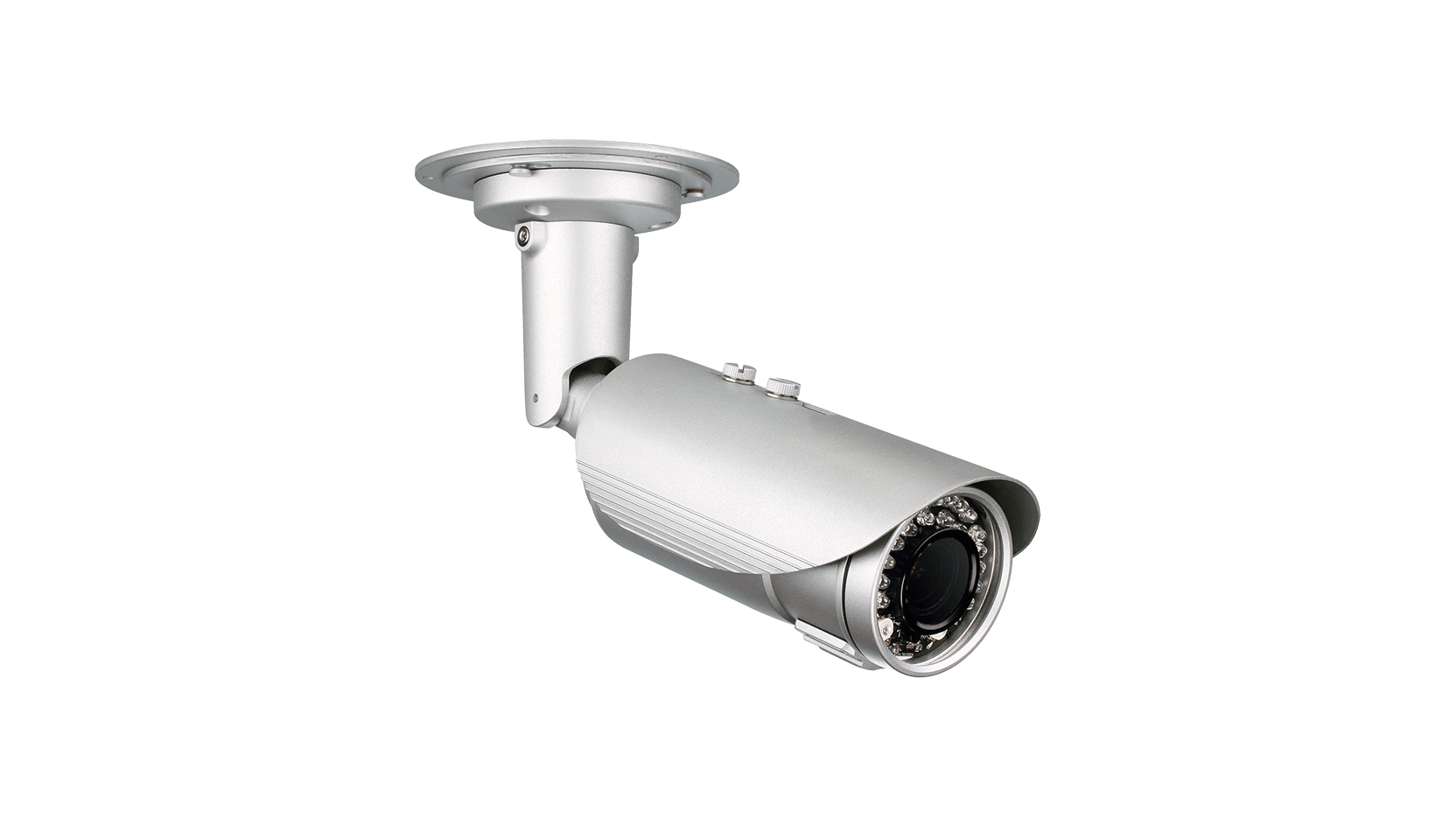

D-Link DCS-7517 security camera Bullet IP security camera Outdoor

D-Link DCS-7517 security camera Bullet IP security camera Outdoor

2560 x 1920 pixels Ceiling

Model DCS-7517EAN 790069419584

74 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.25 kg
  • ColourGrey
  • Form factorBullet
  • Minimum illumination0.5 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.25 kg
Colour
Grey
Form factor
Bullet
Minimum illumination
0.5 lx
Brand
D-Link
Model
DCS-7517
Part number
DCS-7517
EAN / UPC
790069419584, 790069419607, 790069424588
Also known as
D-Link DCS-7517 security camera Bullet IP security camera Outdoor 2560 x 1920 pixels Ceiling

Specifications

74 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Maximum operating distance30 m
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
CertificationCE, CE LVD, ICES-003, FCC, C-Tick

Design

Form factorBullet
Mounting typeCeiling
Product colourGrey
International Protection (IP) codeIP66
WeatherproofYes

Camera

Minimum illumination0.5 lx
Camera shutter speed1/2.5 - 1/10000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3.2 mm (1 / 3.2")

Lens system

Digital zoom4x
Lens diameter8.3 cm
Maximum aperture number1.8

Night vision

LED typeIR

Video

Maximum resolution2560 x 1920 pixels
Total megapixels5 MP
Video formats supportedH.264, M-JPEG
Video compression formatsH.264, M-JPEG
Supported graphics resolutions960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1920
Full HDYes

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio formats supportedAAC, G.711
Built-in microphoneYes
Voice codecsG.711

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsTCP/IP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC

Ports & interfaces

Microphone inYes

Security

Motion sensorYes

Management features

Reset buttonYes

Power

Power source typePoE
AC input frequency50 - 60 Hz
Power consumption (max)12.48 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Weight & dimensions

Weight1.25 kg

Packaging data

Package width203 mm
Package depth270 mm
Package height166 mm
Package weight2.46 kg

Packaging content

Number of cameras1

Logistics data

Harmonized System (HS) code85258900
Master (outer) cases per pallet (air)36 pc(s)
Master (outer) cases per pallet (sea)48 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)397.3 kg
Pallet gross weight (sea)523 kg
Pallet gross width120 cm
Pallet height (air)144 cm
Pallet height (sea)187.5 cm
Products per pallet (air)144 pc(s)
Products per pallet (sea)192 pc(s)
Shipping (inner) case gross weight10.5 kg
Shipping (inner) case height43.5 cm
Shipping (inner) case length35 cm
Shipping (inner) case net weight9.82 kg
Shipping (inner) case width28.5 cm
Products per shipping (inner) case4 pc(s)
