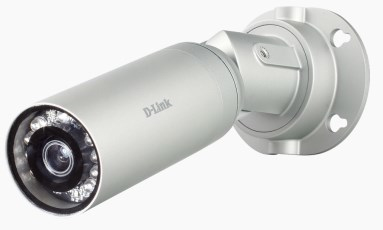

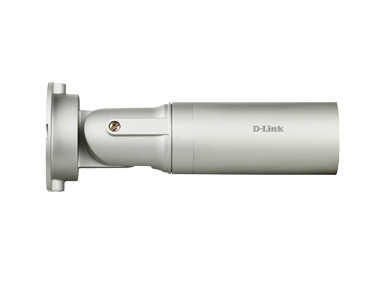

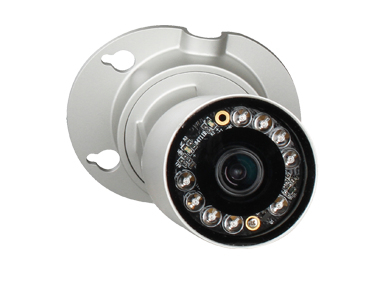

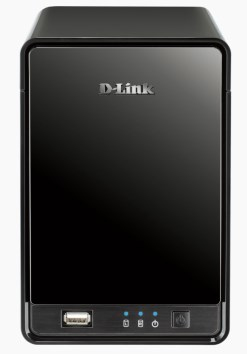

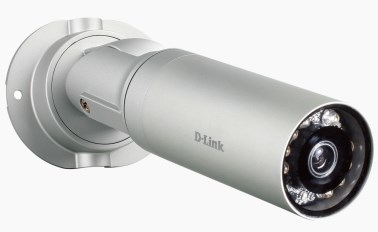

D-Link DCS-7010L+DNR-322L security camera Bullet IP security camera Outdoor

D-Link DCS-7010L+DNR-322L security camera Bullet IP security camera Outdoor

1280 x 720 pixels Wall

Model DCS-7010L+DNR-322L

52 specifications

ConnectivityWired
TypeIP security camera
Weight510 g
ColourWhite
Form factorBullet
Lens viewing angle, horizontal47°

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 510 g
Colour: White
Form factor: Bullet
Lens viewing angle, horizontal: 47°

Brand: D-Link
Category: Security Camera
Model: DCS-7010L+DNR-322L
Part number: DCS-7010L+DNR-322L
Also known as: D-Link DCS-7010L+DNR-322L security camera Bullet IP security camera Outdoor 1280 x 720 pixels Wall

Specifications

52 specifications in 16 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Certification	CE, CE LVD, FCC, C-Tick

Design

Specification	Value
Form factor	Bullet
Mounting type	Wall
Product colour	White
International Protection (IP) code	IP66

Camera

Specification	Value
Lens viewing angle, horizontal	47°
Lens viewing angle, vertical	37°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")

Lens system

Specification	Value
Digital zoom	10x
Fixed focal length	4.3 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	10 m
LED type	IR

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 800 (WXGA)
Frame rate	30 fps

Audio

Specification	Value
Audio system	2-way

Network

Specification	Value
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MiniSDHC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Security

Specification	Value
HTTPS encryption	Yes
IP address filtering	Yes
Security algorithms	HTTPS

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.4 W
DC output voltage	+5V
DC output current	1.2 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-25 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi

Weight & dimensions

Specification	Value
Width	65 mm
Depth	176.5 mm
Height	80.5 mm
Diameter	4.4 cm
Weight	510 g
