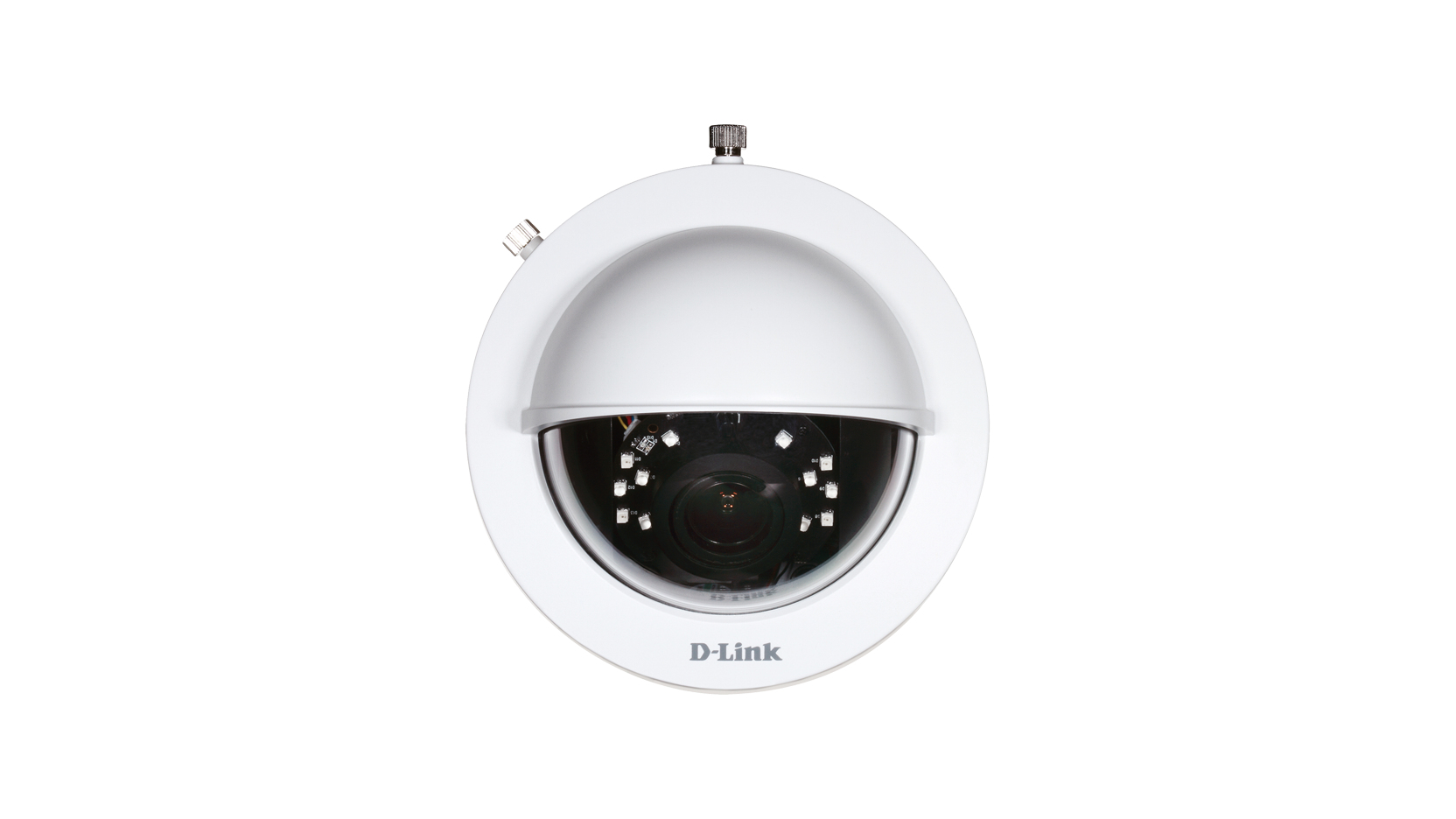

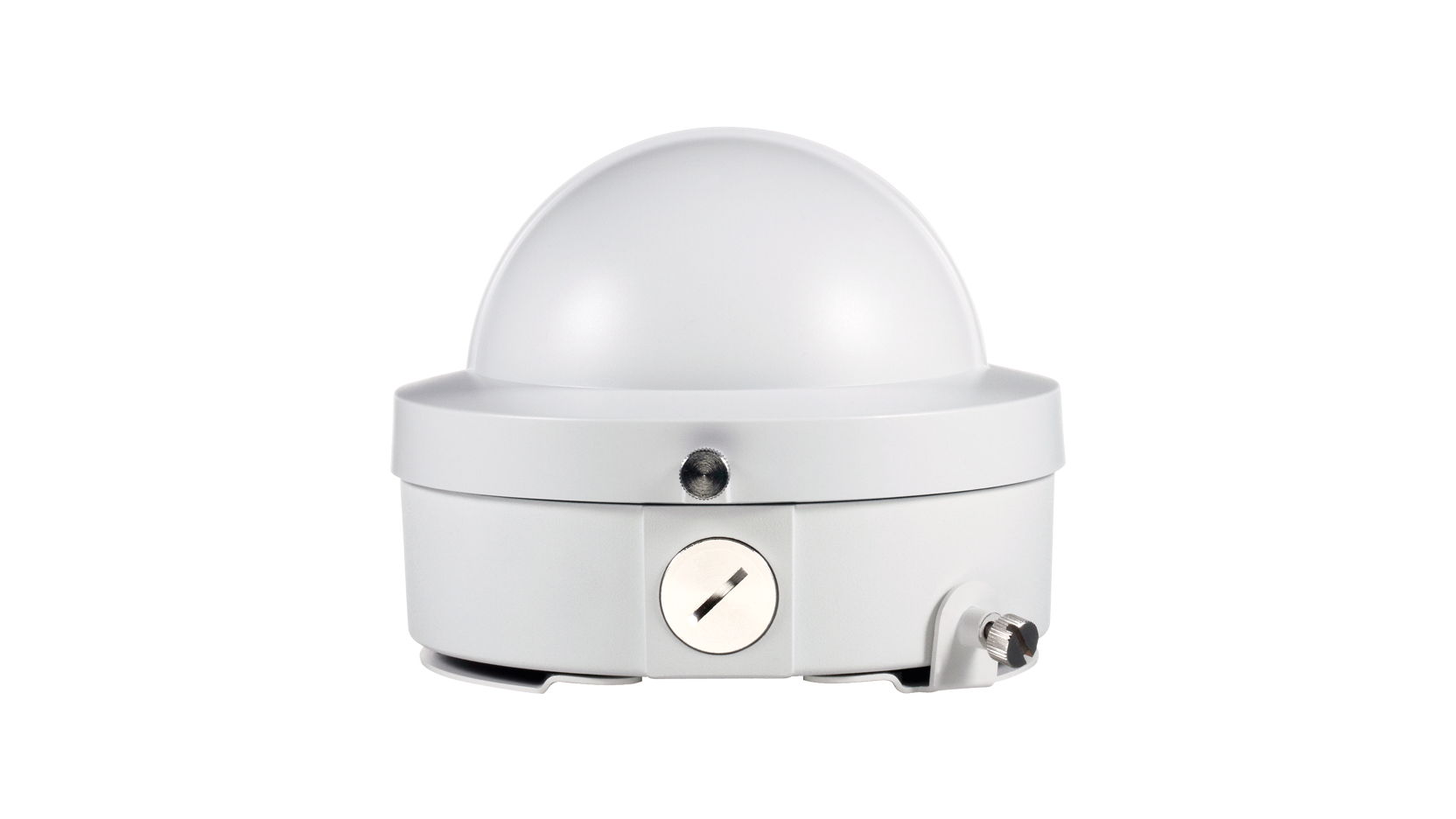

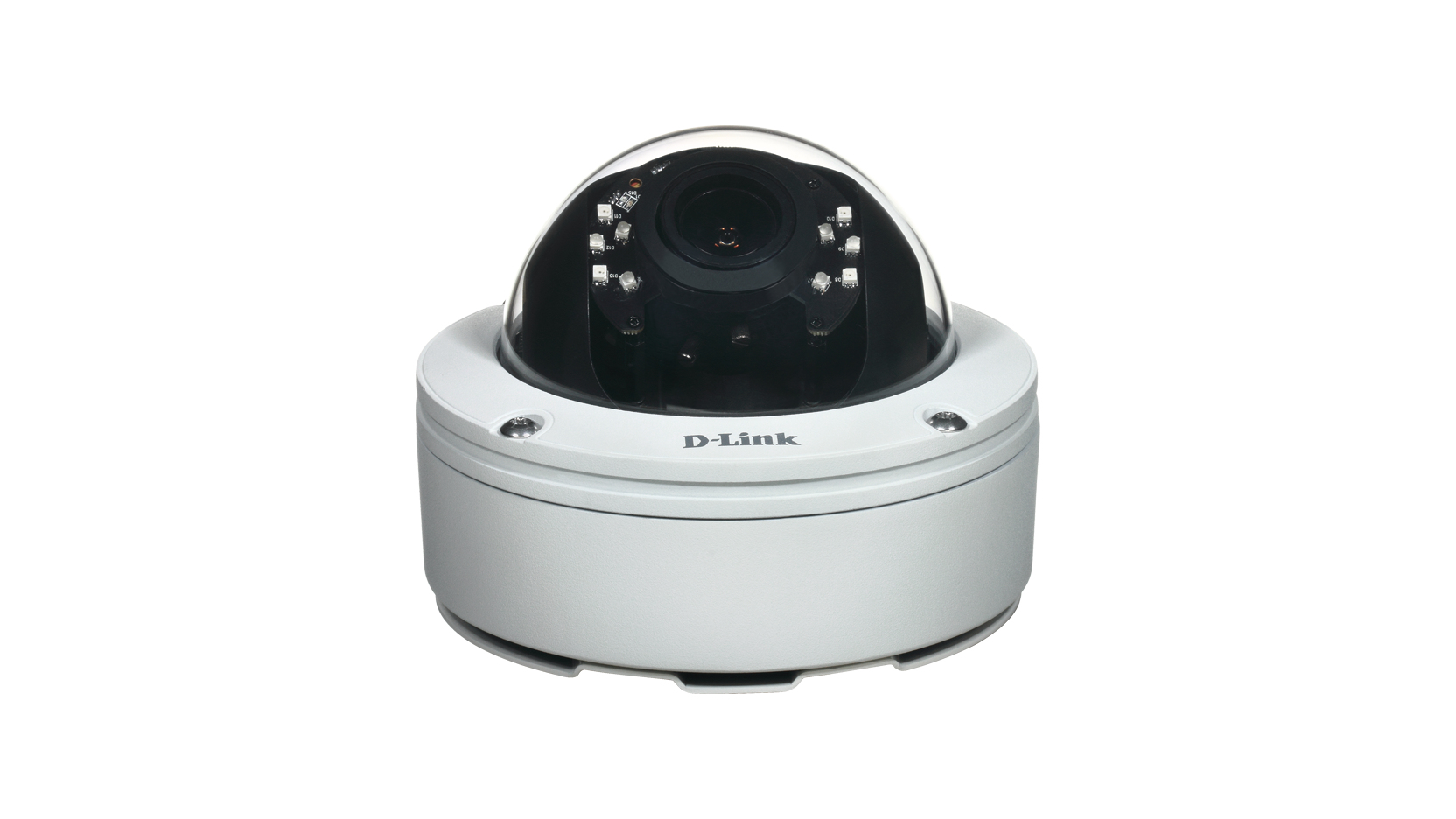

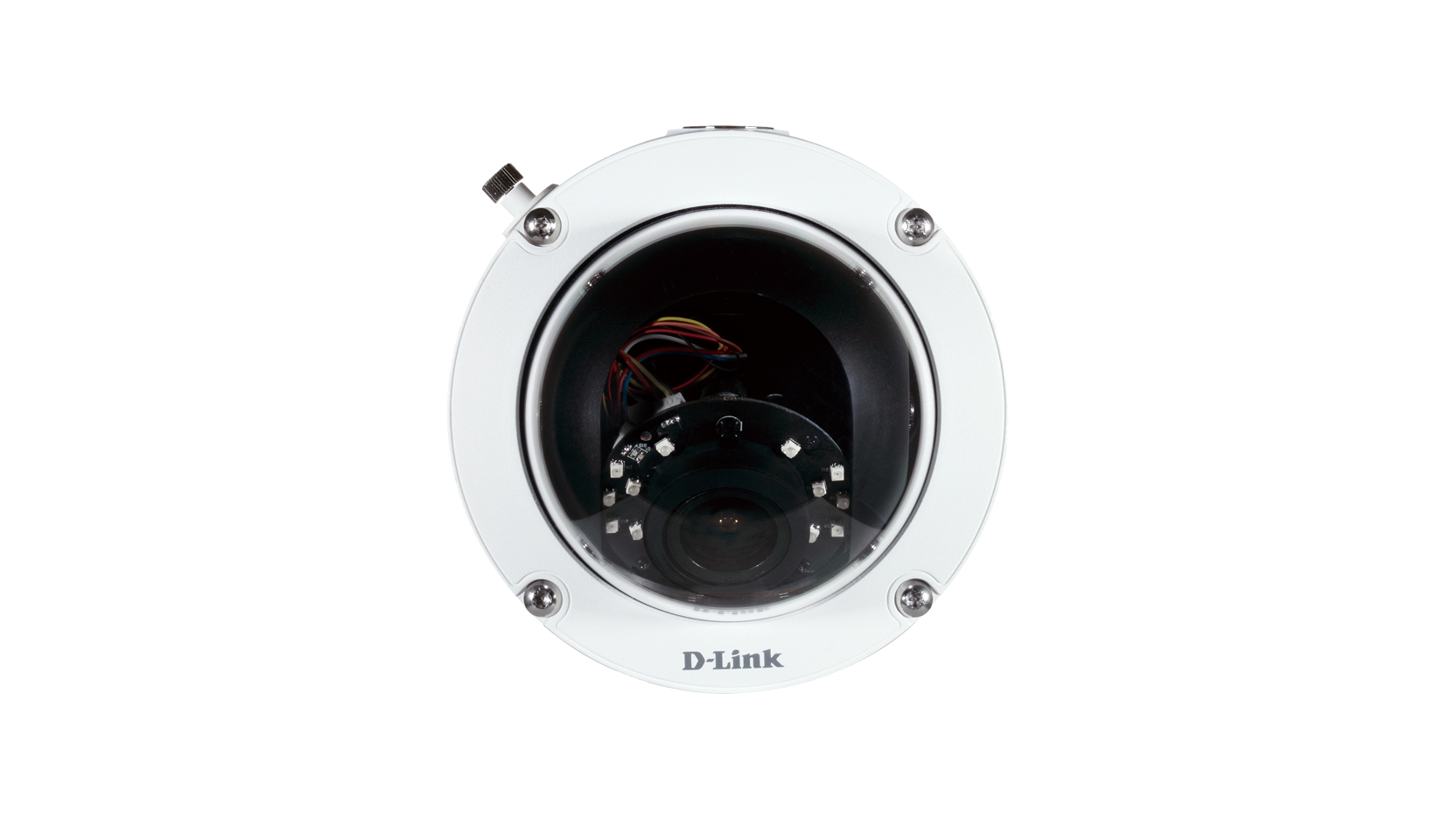

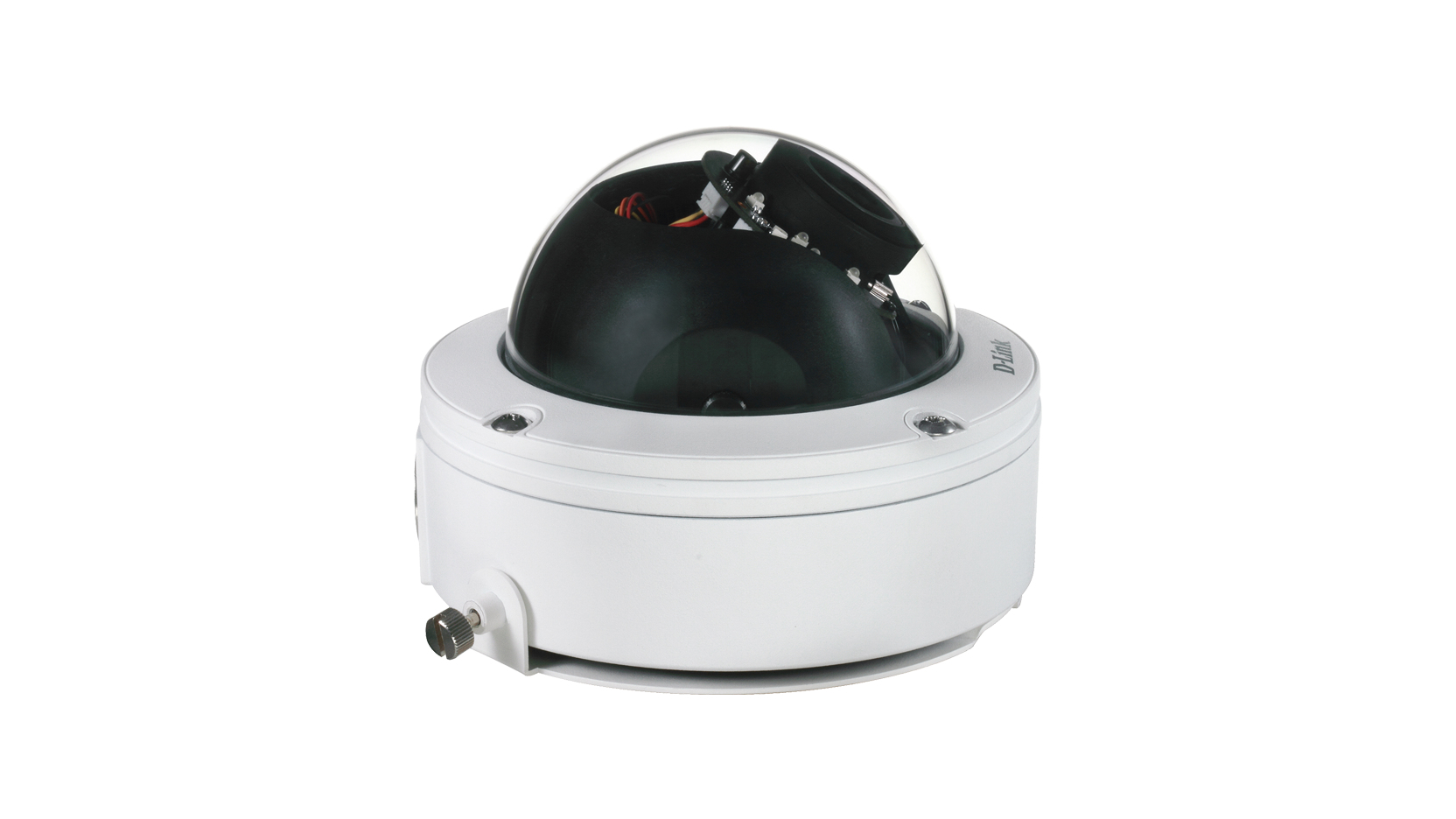

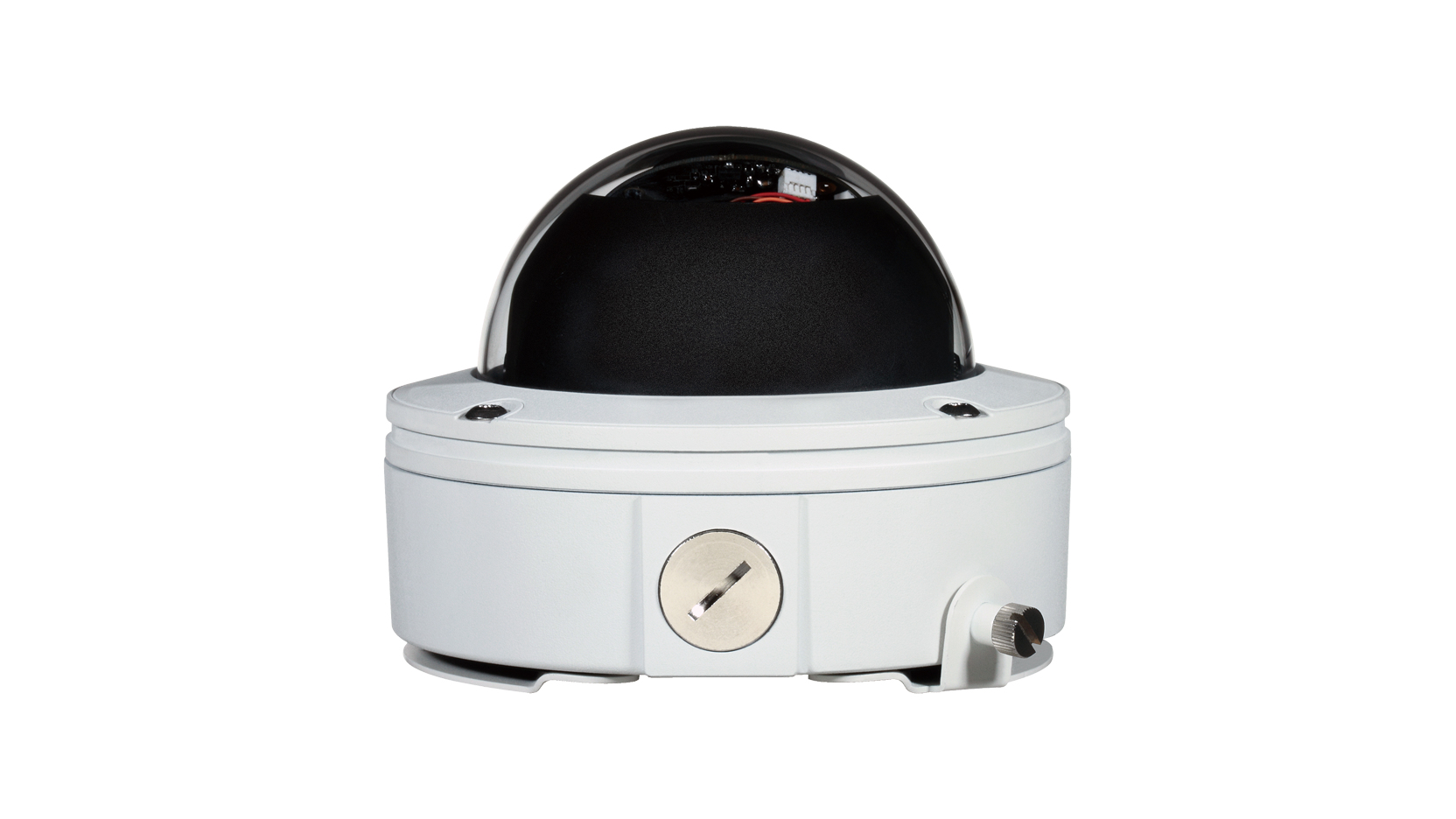

D-Link DCS-6517 security camera Dome IP security camera Outdoor

D-Link DCS-6517 security camera Dome IP security camera Outdoor

2560 x 1920 pixels Ceiling

Model DCS-6517EAN 790069415340

74 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.25 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.5 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.25 kg
Colour
White
Form factor
Dome
Minimum illumination
0.5 lx
Brand
D-Link
Model
DCS-6517
Part number
DCS-6517
EAN / UPC
790069415340, 790069415371, 790069415708
Also known as
D-Link DCS-6517 security camera Dome IP security camera Outdoor 2560 x 1920 pixels Ceiling

Specifications

74 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Maximum operating distance20 m
CertificationCE, CE LVD, FCC, C-Tick

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Protection featuresVandal proof
International Protection (IP) codeIP66
WeatherproofYes

Camera

Minimum illumination0.5 lx
Camera shutter speed1/2.5 - 1/10000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3.2 mm (1 / 3.2")

Lens system

Digital zoom4x
Maximum aperture number1.4

Night vision

Night visionNo
LED typeIR

Video

Maximum resolution2560 x 1920 pixels
Total megapixels5 MP
Video formats supportedH.264
Video compression formatsH.264, M-JPEG
Frame rate30 fps
Full HDYes
Privacy maskingYes

Audio

Audio system2-way
Audio formats supportedAAC, G.711
Voice codecsG.711

Network

Ethernet LANYes
Supported network protocolsTCP/IP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Motion sensorYes

Management features

Reset buttonYes

Power

Power source typePoE
AC input frequency50 - 60 Hz
Power consumption (Power over Ethernet (PoE))11.6 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Ba

Weight & dimensions

Width137 mm
Depth137 mm
Height106 mm
Weight1.25 kg

Packaging data

Package width172 mm
Package depth228 mm
Package height180 mm
Package weight1.61 kg

Packaging content

Number of cameras1

Technical details

Video resolutions320 x 240,640 x 360,960 x 540,1280 x 720,1280 x 960,1920 x 1080,2560 x 1920

Logistics data

Harmonized System (HS) code85258900
Master (outer) cases per pallet (air)36 pc(s)
Master (outer) cases per pallet (sea)60 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)273.2 kg
Pallet gross weight (sea)441.9 kg
Pallet gross width120 cm
Pallet height (air)125.1 cm
Pallet height (sea)199.5 cm
Products per pallet (air)144 pc(s)
Products per pallet (sea)240 pc(s)
Shipping (inner) case gross weight7.03 kg
Shipping (inner) case height37.2 cm
Shipping (inner) case length47.7 cm
Shipping (inner) case net weight6.44 kg
Shipping (inner) case width19.6 cm
Products per shipping (inner) case4 pc(s)
