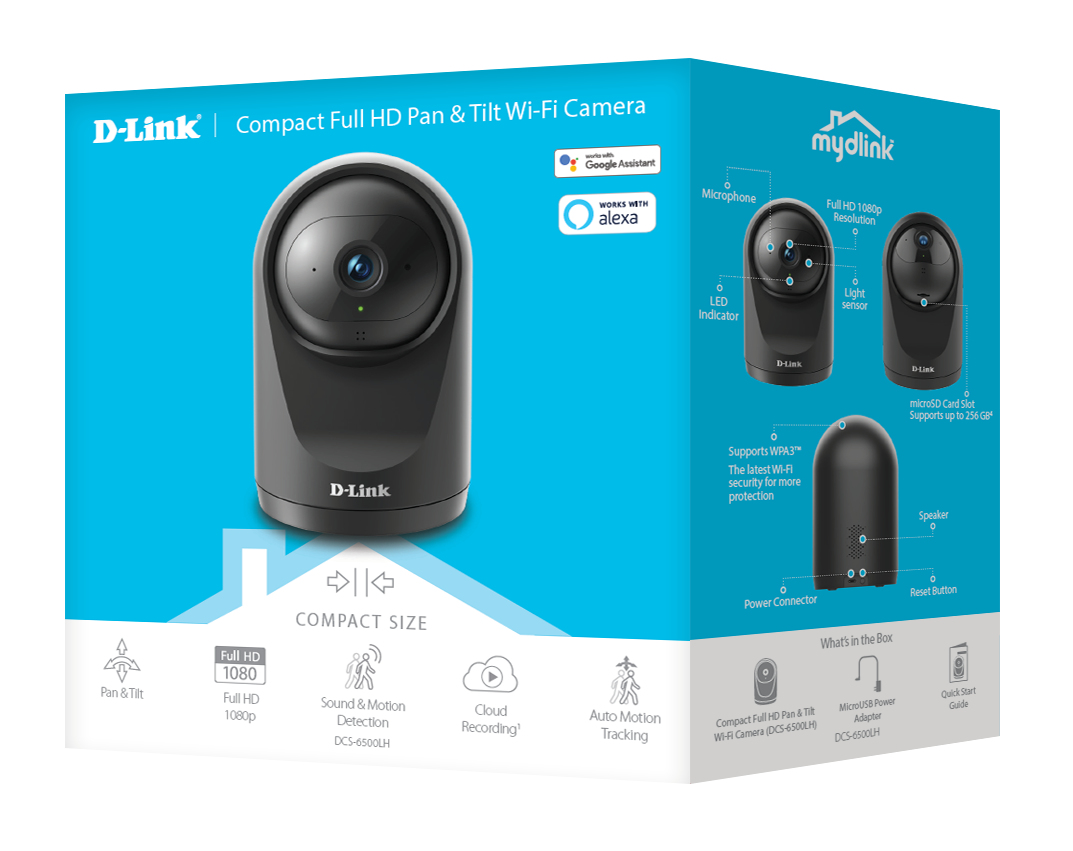

Compact Full HD Pan & Tilt Wi‑Fi Camera DCS‑6500LH
Model DCS‑6500LH/EPart no. DCS-6500LH/EEAN 790069458897
63 specifications
- TypeIP security camera
- Weight190 g
- ColourBlack
- Form factorSpherical
- Lens viewing angle, horizontal85°
- Sensor typeCMOS
Overview
- Type
- IP security camera
- Weight
- 190 g
- Colour
- Black
- Form factor
- Spherical
- Lens viewing angle, horizontal
- 85°
- Sensor type
- CMOS
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS‑6500LH/E
- Part number
- DCS-6500LH/E
- EAN / UPC
- 790069458897
- Also known as
- D-Link Compact Full HD Pan & Tilt Wi‑Fi Camera DCS‑6500LH
Specifications
63 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| PTZ control | Yes |
| Day/night mode | Yes |
| Certification | CE, FCC, IC |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Desk |
| Product colour | Black |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 85° |
| Lens viewing angle, vertical | 42° |
| Lens viewing angle, diagonal | 100° |

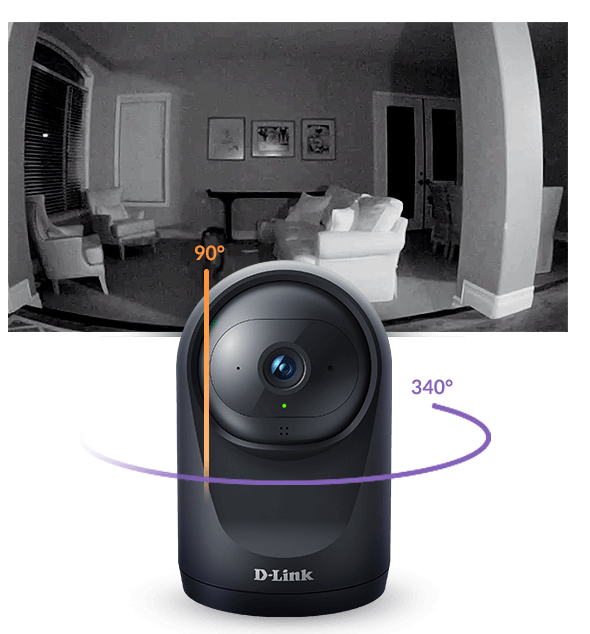

| Tilt angle range | -40 - 50° |
| Pan range | -170 - 170° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 2.1 |
| Fixed focal length | 4.12 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 5 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264 |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|

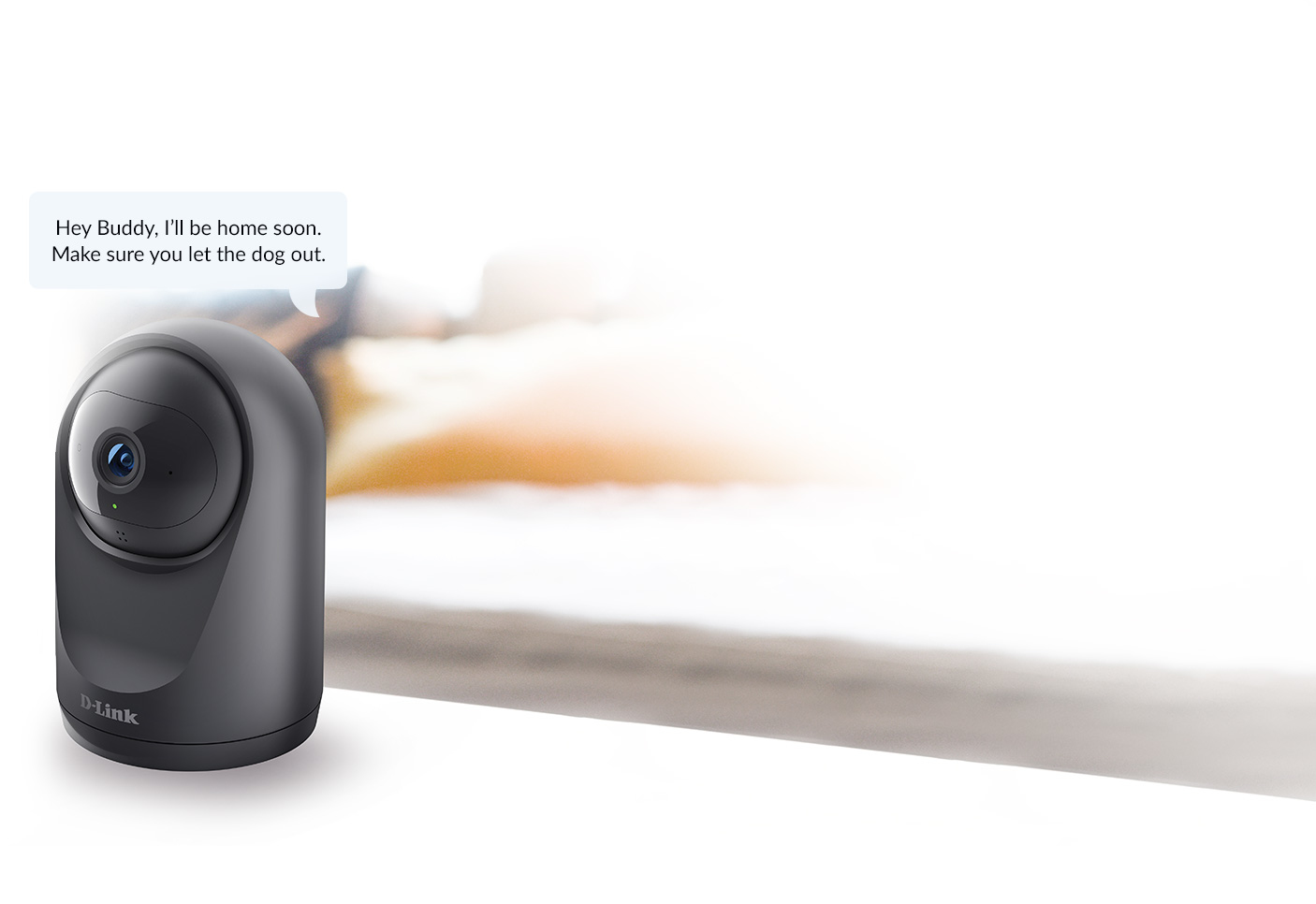

| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Voice codecs | AAC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Supported network protocols | IPv4, Bonjour (mDNS and DNS-SD),RTSP, SRTP, RTP, HTTPS |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
| Frequency band | 2.4 GHz |
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Alert notification type | Snapshot alert message |
| Security algorithms | WPA3 |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 4 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 121 mm |
| Diameter | 7.7 cm |
| Weight | 190 g |
| Cable length | 1.5 m |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
