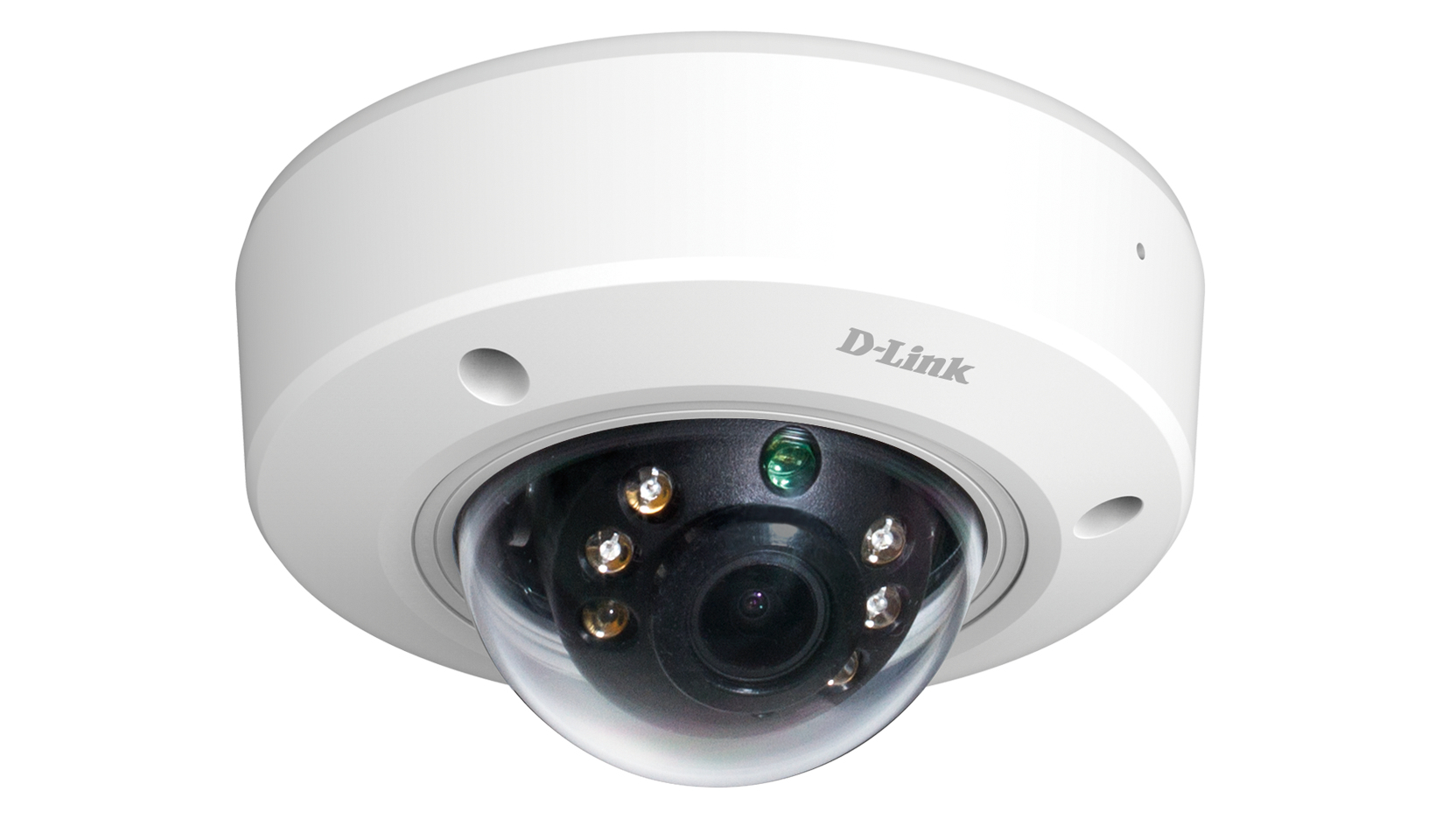

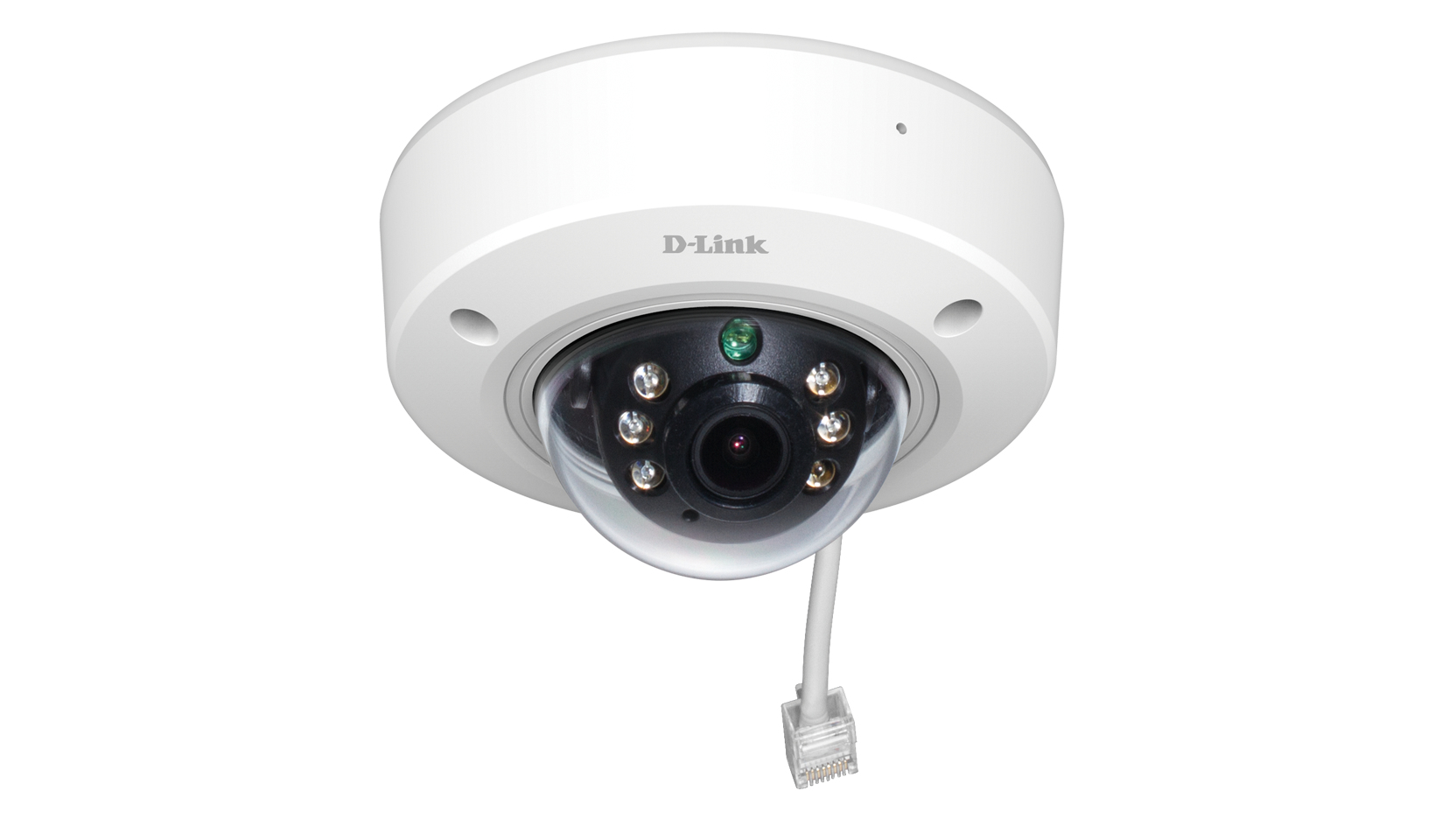

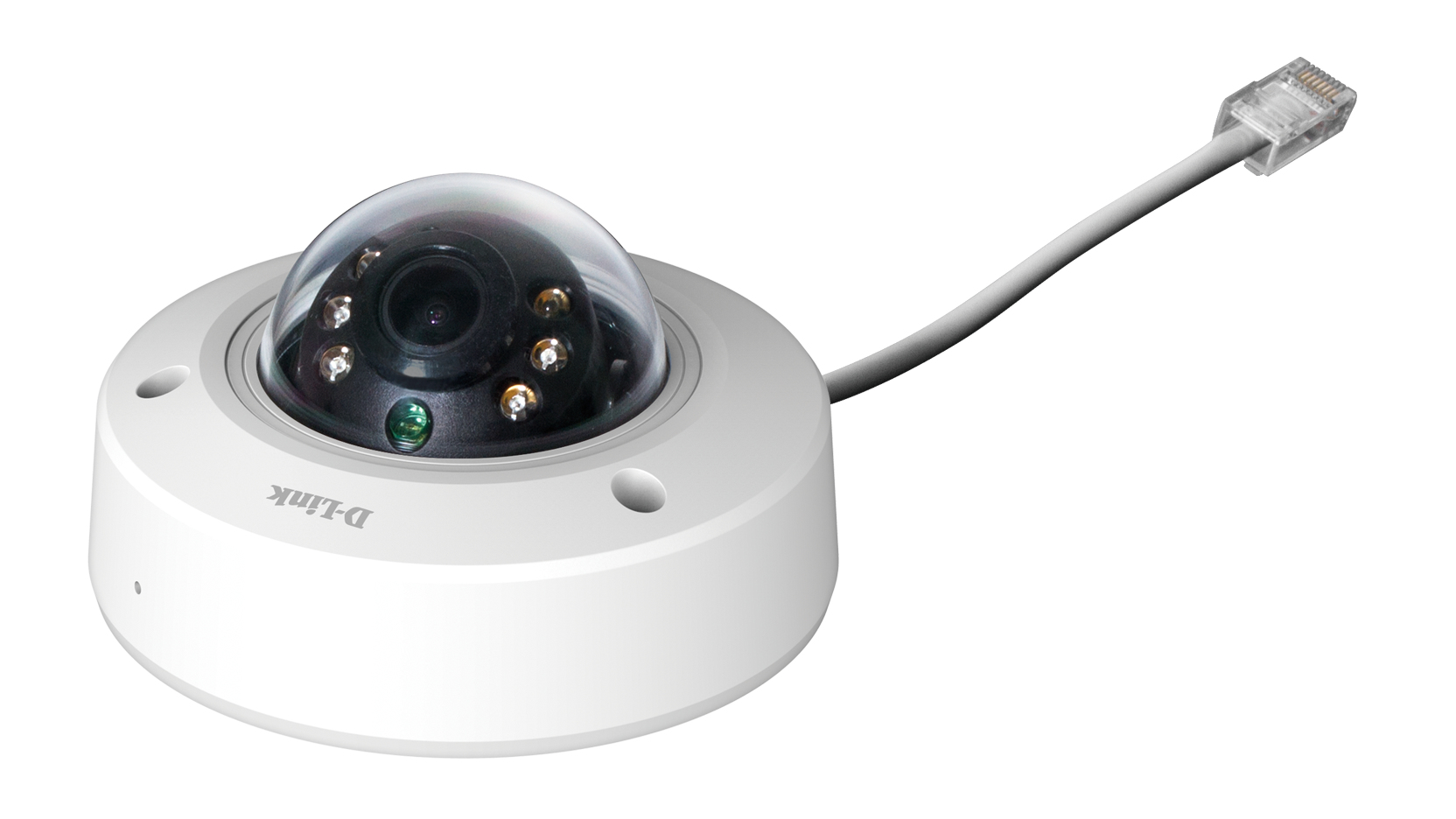

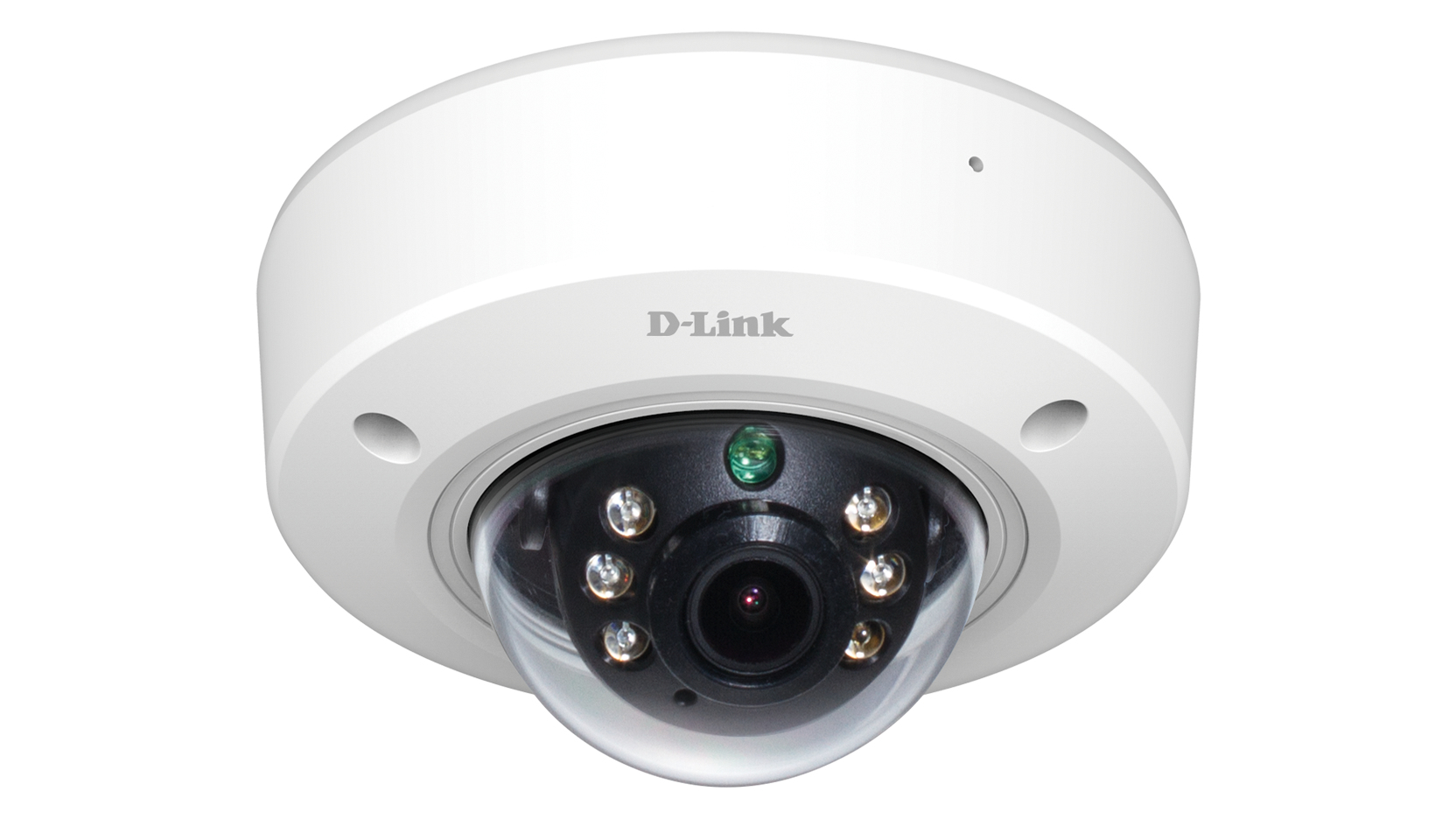

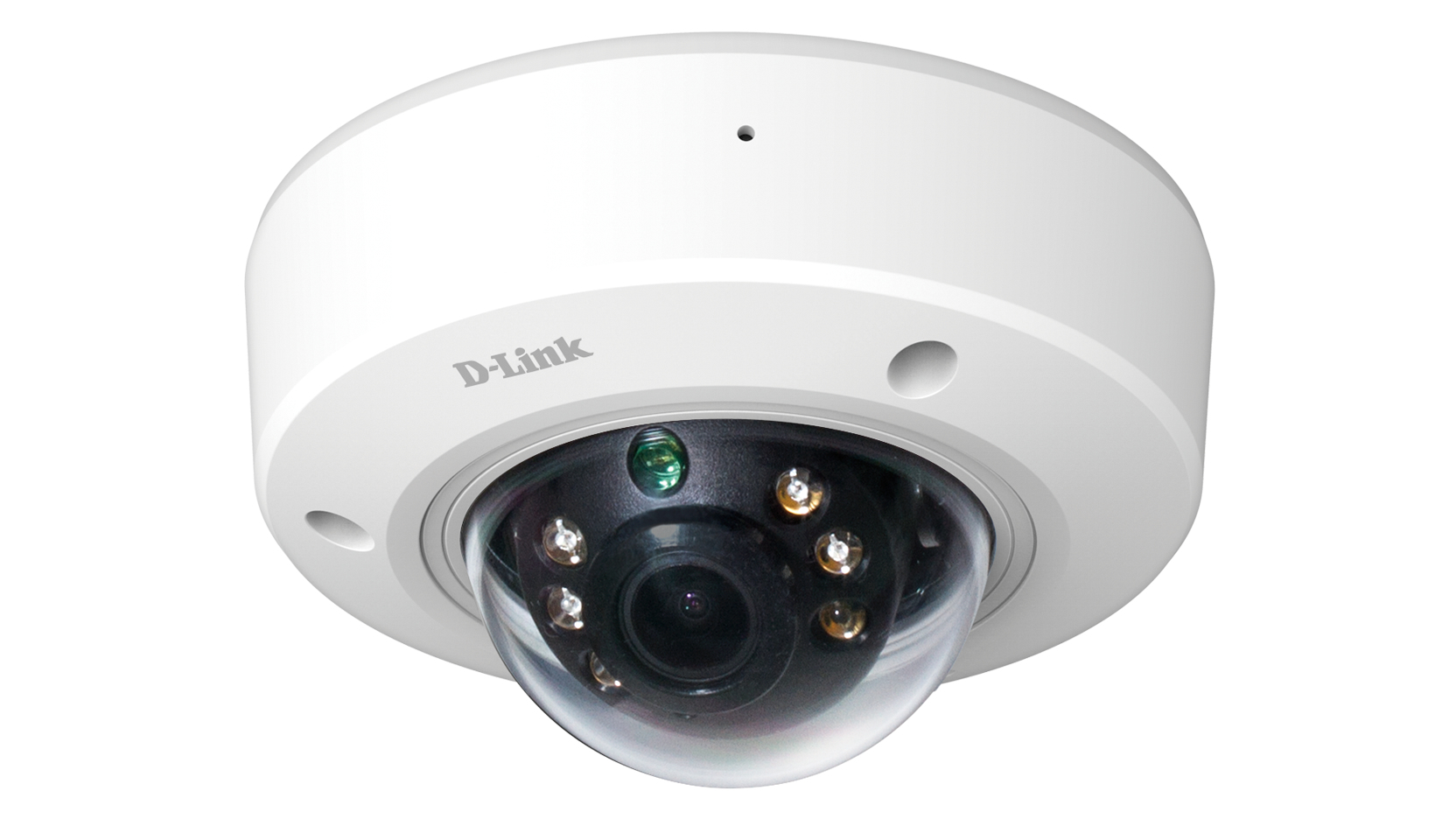

D-Link DCS-6212L security camera Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling

Model DCS-6212LEAN 790069418211

79 specifications

ConnectivityWired
TypeIP security camera
Weight280 g
ColourBlack, White
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 280 g
Colour: Black, White
Form factor: Dome
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-6212L
Part number: DCS-6212L
EAN / UPC: 790069418211
Also known as: D-Link DCS-6212L security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling

Specifications

79 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Certification	CE, CE LVD, IP65, FCC, C-Tick, IK-10

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	Black, White
LED indicators	Yes
Protection features	Vandal proof
International Protection (IP) code	IP65
Weatherproof	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Angle of rotation	350°
Lens viewing angle, horizontal	84°
Lens viewing angle, vertical	46°
Lens viewing angle, diagonal	97°
Tilt angle range	0 - 100°
Pan range	0 - 350°
Camera shutter speed	1/7.5 - 1/10000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	10x
Maximum aperture number	2
Fixed focal length	2.8 mm
Normal focusing range	0.3 m

Night vision

Specification	Value
Night vision	Yes
Night vision distance	10 m
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 800 x 448, 800 x 592, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 1080, 1920 x 1080 (HD 1080)
Supported video modes	720p, 1080p
Frame rate	30 fps
Full HD	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio system	2-way
Audio formats supported	AAC, G.711
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af
Supported network protocols	IPv6, IPv4, ARP, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP / HTTPS, Samba client, PPPoE, UPnP, UPnP port forwarding, RTP / RTSP/ RTCP, IP filtering, QoS, CoS, DSCP, Multicast, IGMP, ONVIF compliant, Bonjour, SNMP v1, v2c, v3
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Security

Specification	Value
HTTPS encryption	Yes
Motion sensor	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	4.6 W
Power consumption (Power over Ethernet (PoE))	6.1 W
DC output voltage	5
DC output current	1.2 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-25 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Mac compatibility	Yes
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Height	61.6 mm
Diameter	10.4 cm
Weight	280 g

Packaging content

Specification	Value
Number of cameras	1
