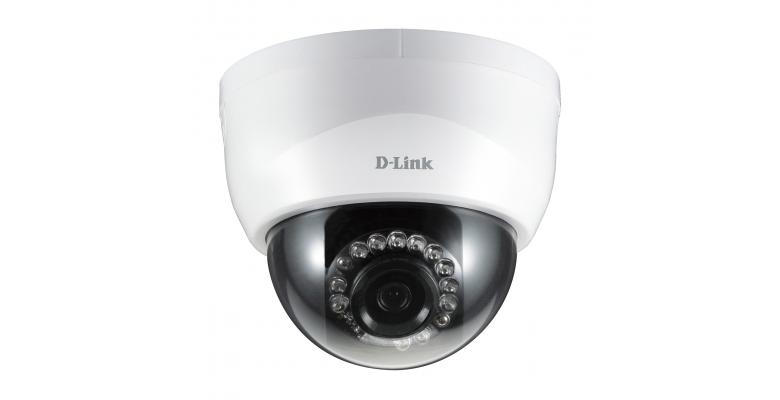

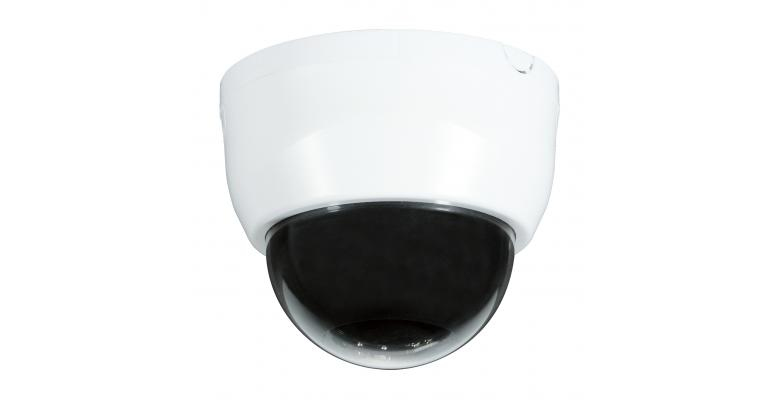

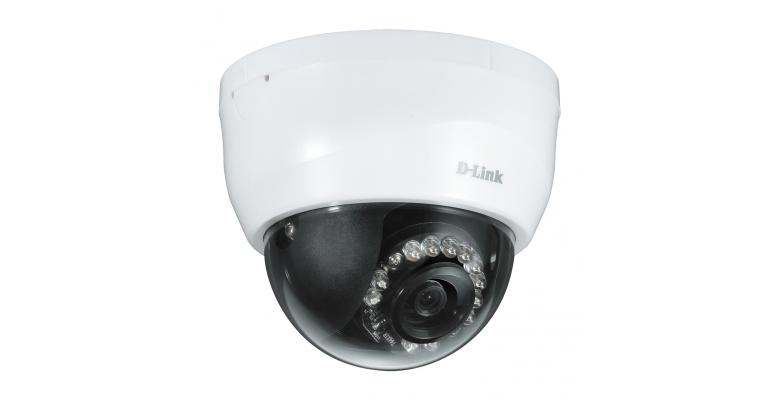

D-Link DCS-6115 security camera Dome IP security camera Indoor

1280 x 720 pixels Ceiling

Model DCS-6115

63 specifications

ConnectivityWired
TypeIP security camera
Weight522 g
ColourWhite
Form factorDome
Minimum illumination0.1 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 522 g
Colour: White
Form factor: Dome
Minimum illumination: 0.1 lx

Brand: D-Link
Category: Security Camera
Model: DCS-6115
Part number: DCS-6115
Also known as: D-Link DCS-6115 security camera Dome IP security camera Indoor 1280 x 720 pixels Ceiling

Specifications

63 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Remote viewing	Yes
Certification	CE, CE LVD, FCC, C-Tick

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White

Camera

Specification	Value
Minimum illumination	0.1 lx
Lens viewing angle, horizontal	62°
Lens viewing angle, vertical	40°
Lens viewing angle, diagonal	92.4°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")

Lens system

Specification	Value
Fixed focal length	3.6 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	10 m
LED type	IR

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	480 x 270, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720)
Supported video modes	480p, 720p
Frame rate	30 fps

Audio

Specification	Value
Audio formats supported	AAC, G.711

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP filtering, 3GPP, LLTD, CoS/QoS, SNMP, IGMP, ONVIF
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB

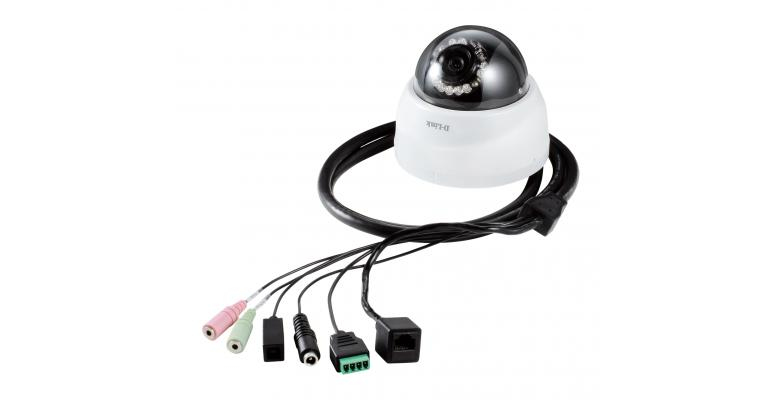

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
BNC output ports	1
Headphone outputs	2
Terminal block port	Yes
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	Supervisor, User
Active tampering alarm	Yes
Security algorithms	HTTPS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Remotely operated	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (Power over Ethernet (PoE))	7 W
DC output voltage	12
DC output current	1.5 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Height	94.3 mm
Diameter	11.1 cm
Weight	522 g

Packaging content

Specification	Value
Number of cameras	1
