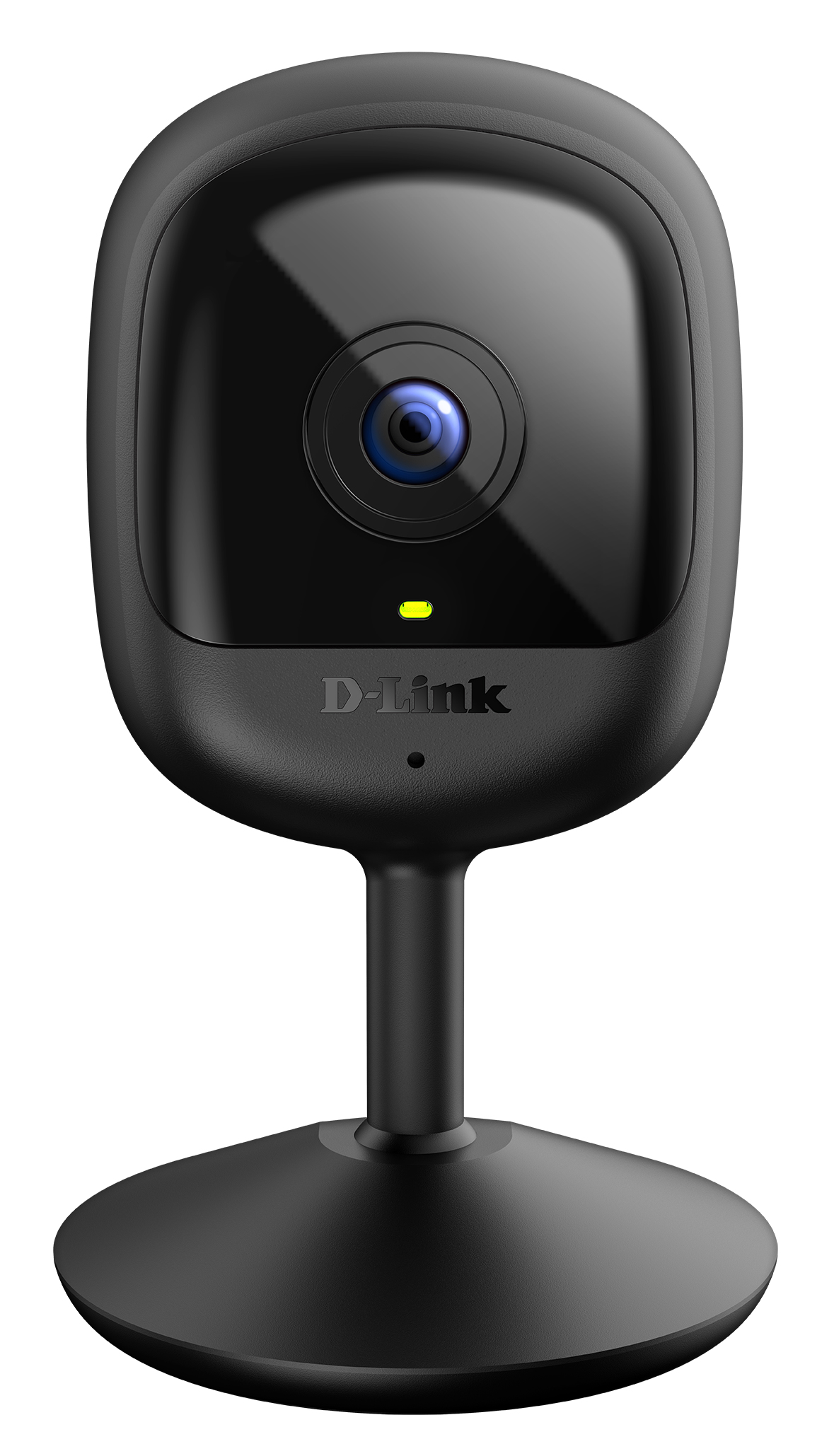

DCS-6100LHV2 security camera IP security camera Indoor
1920 x 1080 pixels Desk
Model DCS-6100LHV2EAN 790069466724
53 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight65 g
- ColourBlack
- Mounting typeDesk
- Field of view (FOV) angle110°
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 65 g
- Colour
- Black
- Mounting type
- Desk
- Field of view (FOV) angle
- 110°
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-6100LHV2
- Part number
- DCS-6100LHV2
- EAN / UPC
- 790069466724, 790069466809, 790069473128
- Also known as
- D-Link DCS-6100LHV2 security camera IP security camera Indoor 1920 x 1080 pixels Desk
Specifications
53 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk |
| Product colour | Black |
| LED indicators | Status |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 110° |
| Lens viewing angle, horizontal | 90° |
| Lens viewing angle, vertical | 60° |
| Lens viewing angle, diagonal | 110° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 2.4 |
| Fixed focal length | 3.3 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 5 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264 |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio formats supported | AAC-LC, MPEG-2 |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Supported network protocols | IPv4, Bonjour (mDNS and DNS-SD), RTSP6 , SRTP, RTP, HTTPS |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA3 |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Remotely operated | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 28 mm |
| Height | 104 mm |
| Weight | 65 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
