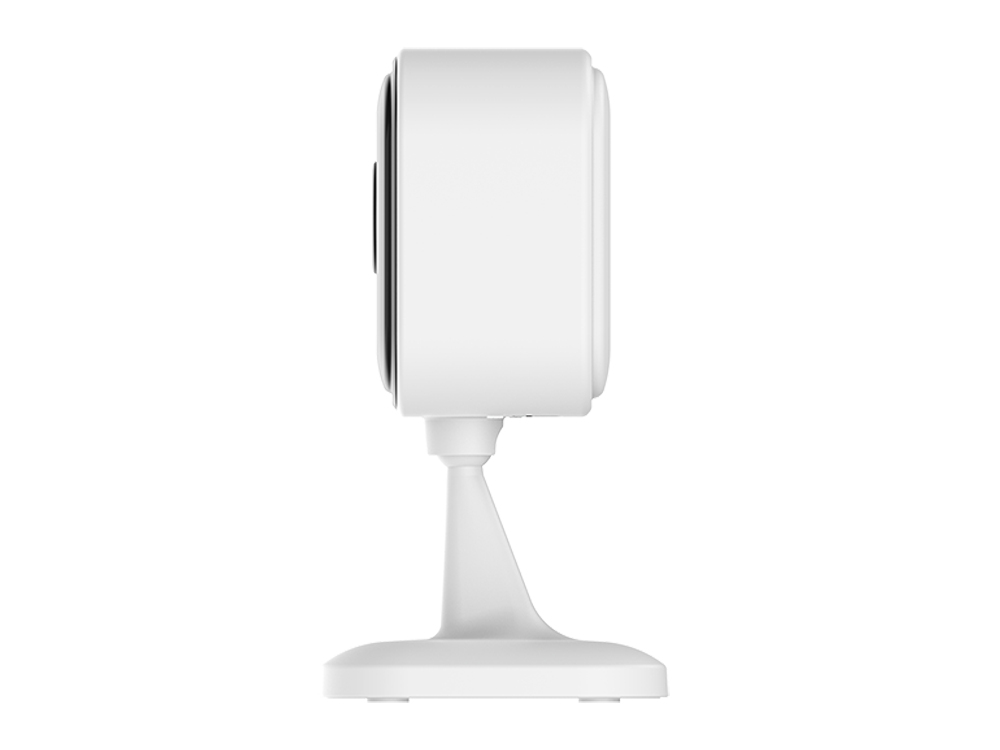

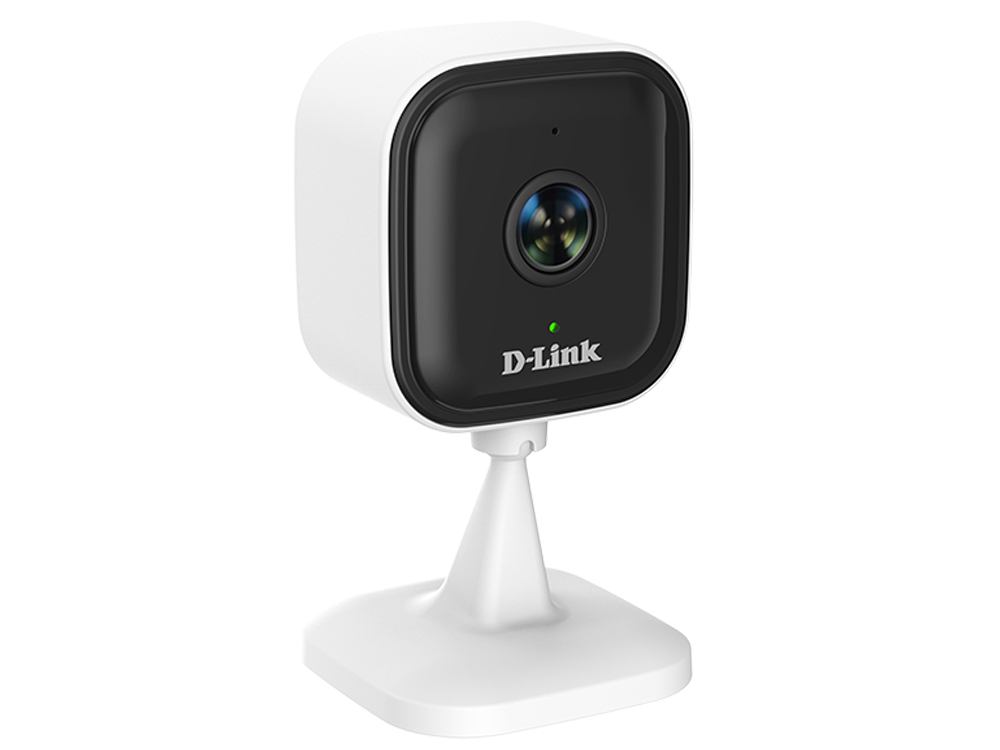

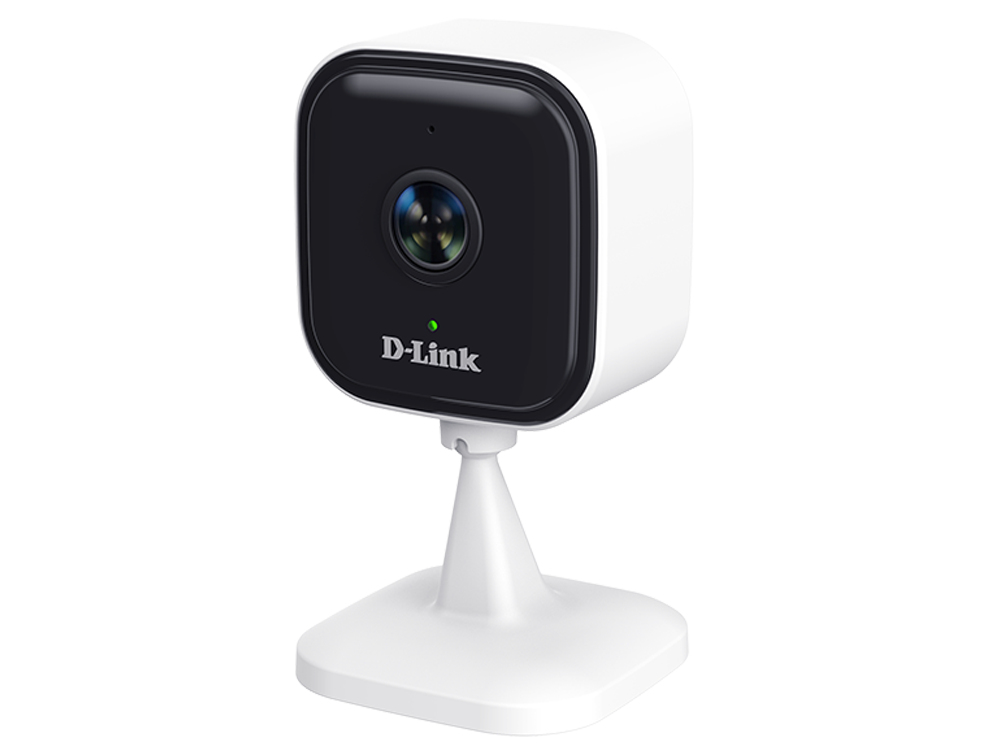

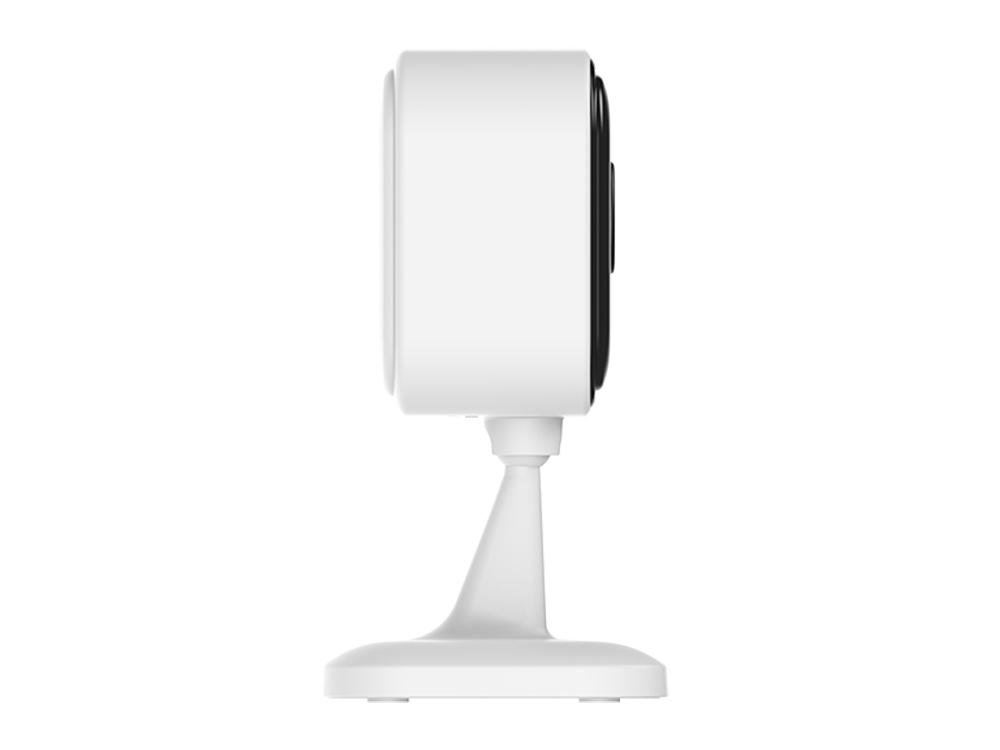

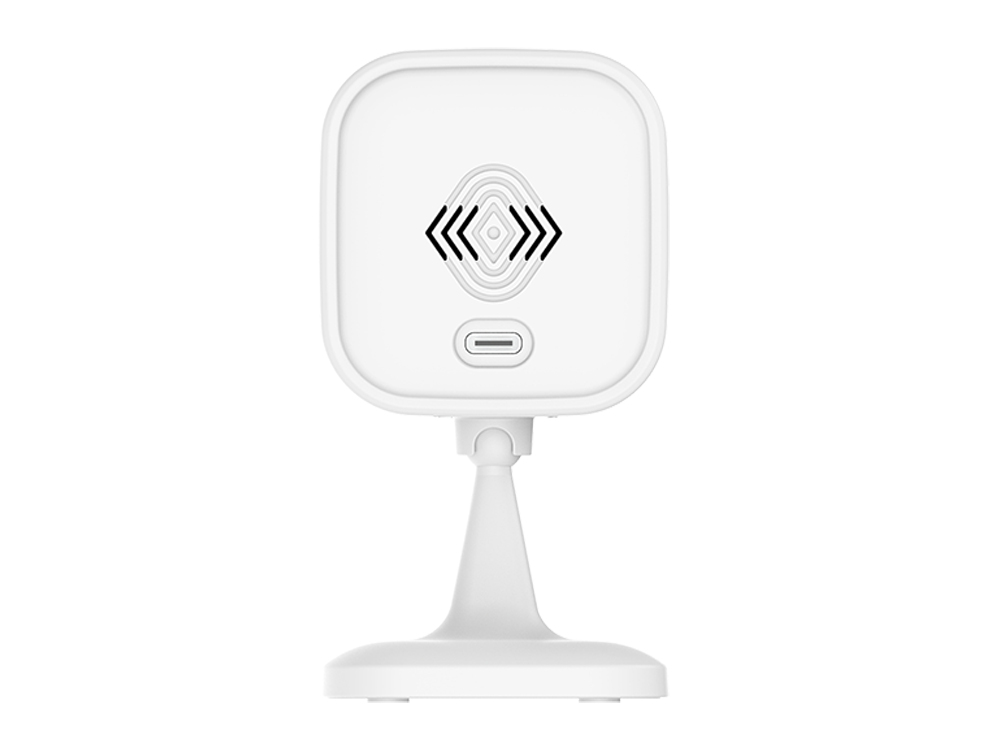

DCS-6012 IP security camera Indoor
2304 x 1296 pixels Desk/Wall
Model DCS-6012Part no. DCS-6012/EEAN 790069483400
50 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight66 g
- ColourWhite
- Mounting typeDesk/Wall
- Lens viewing angle, horizontal87°
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 66 g
- Colour
- White
- Mounting type
- Desk/Wall
- Lens viewing angle, horizontal
- 87°
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-6012
- Part number
- DCS-6012/E
- EAN / UPC
- 790069483400
- Also known as
- D-Link DCS-6012 IP security camera Indoor 2304 x 1296 pixels Desk/Wall
Specifications
50 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Infrared (IR) cut-off filter | Yes |
| Certification | FCC Class B, CE |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk/Wall |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 87° |
| Lens viewing angle, vertical | 50° |
| Lens viewing angle, diagonal | 115° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 3 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 8 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video formats supported | H.264 |
| Video compression formats | H.264 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio formats supported | AAC-LC |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | IPv4 |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Security algorithms | WPA3, TLS |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC, USB |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 56 mm |
| Height | 104 mm |
| Weight | 66 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
