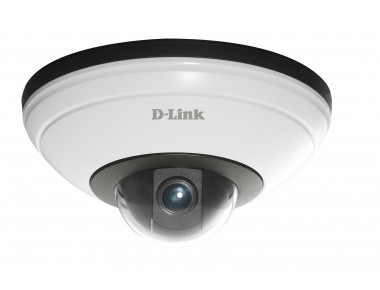

DCS-5615 security camera Dome IP security camera
1920 x 1080 pixels Ceiling
Model DCS-5615EAN 7900694041224
54 specifications
- ConnectivityWired
- TypeIP security camera
- Weight210 g
- ColourWhite
- Form factorDome
- Minimum illumination0.12 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 210 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.12 lx
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-5615
- Part number
- DCS-5615
- EAN / UPC
- 7900694041224, 012303914595, 790069404115, 790069404122 +3 more
- Also known as
- D-Link DCS-5615 security camera Dome IP security camera 1920 x 1080 pixels Ceiling
Specifications
54 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | No |
| Certification | CE (Class A) CE LVD (EN60965-1) FCC (Class A) ICES-003 C-Tick |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.12 lx |
| Lens viewing angle, horizontal | 77.4° |
| Lens viewing angle, vertical | 45.1° |
| Tilt angle range | 10 - 90° |
| Tilt speed | 101 °/sec |
| Pan range | -180 - 180° |
| Pan speed | 101 °/sec |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 16x |
| Fixed focal length | 4 mm |
| Focus adjustment | 1.5 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264, MPEG, MPEG4 |
| Supported graphics resolutions | 1600 x 904, 176 x 144, 1280 x 720 (HD 720), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA) |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, HTTP/HTTPS, IPv6, Samba Client, TCP/IP, PPPoE, UDP, UPnP, ICMP, RTP/RTSP/RTCP, DHCP Client, NTP Client (D-Link), LLTD, DNS Client, CoS/QoS, DDNS Client (D-Link), SNMP, SMTP Client, IGMP, FTP Client, 802.1x |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 0 |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 5.8 W |
| DC output voltage | +12V |
| DC output current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116.3 mm |
| Depth | 116.3 mm |
| Height | 56.7 mm |
| Weight | 210 g |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | 802.3af PoE |
