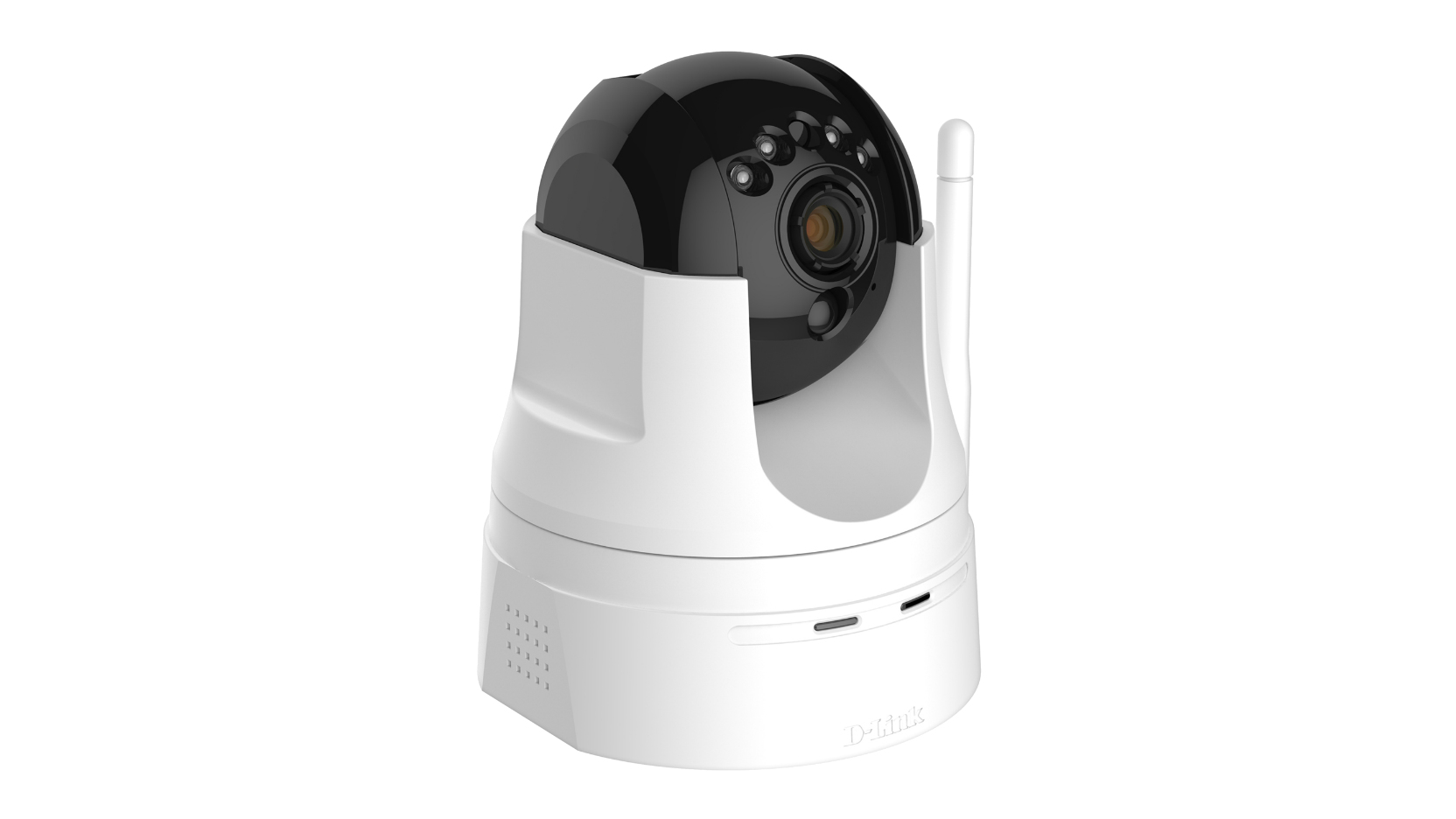

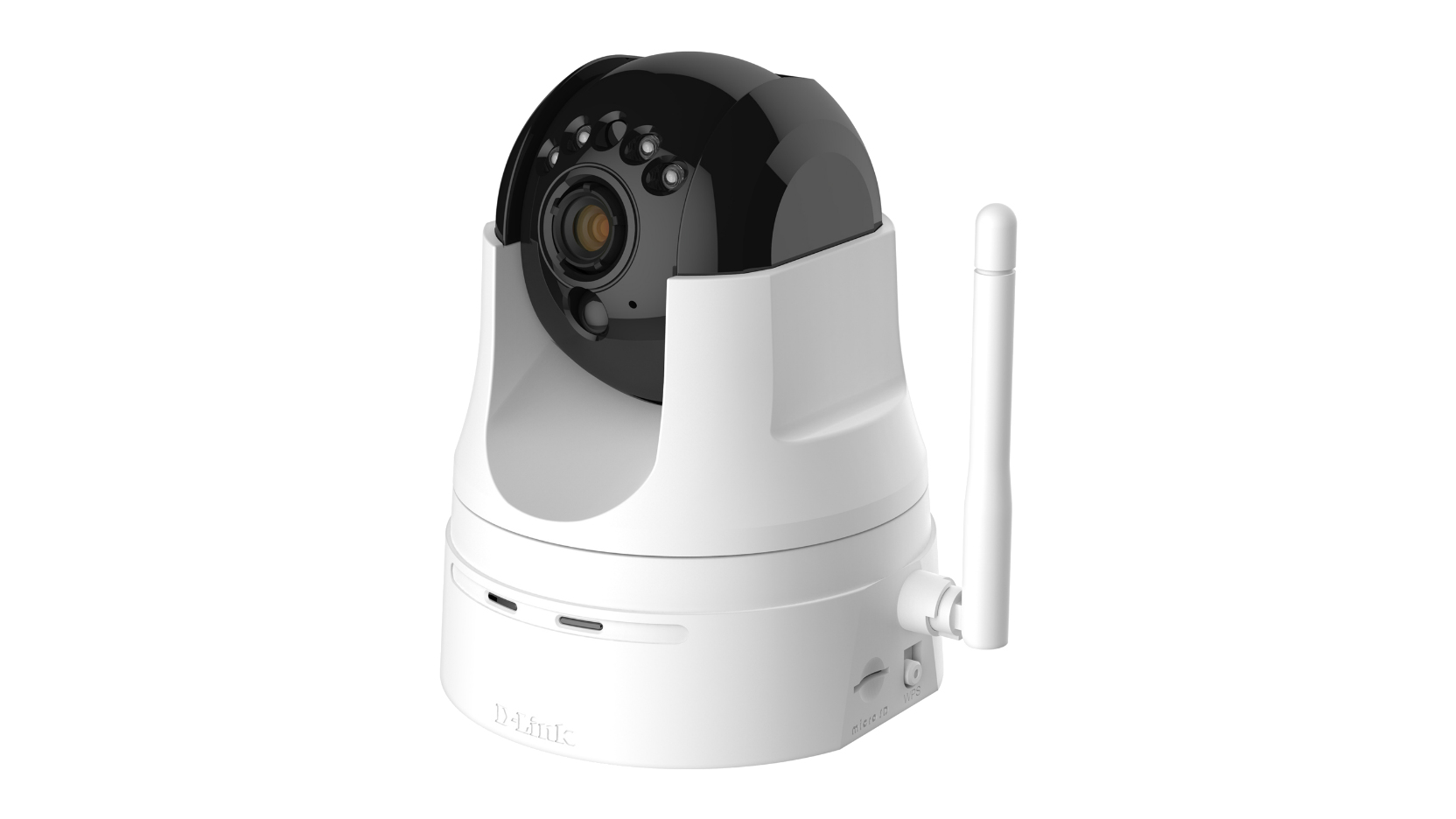

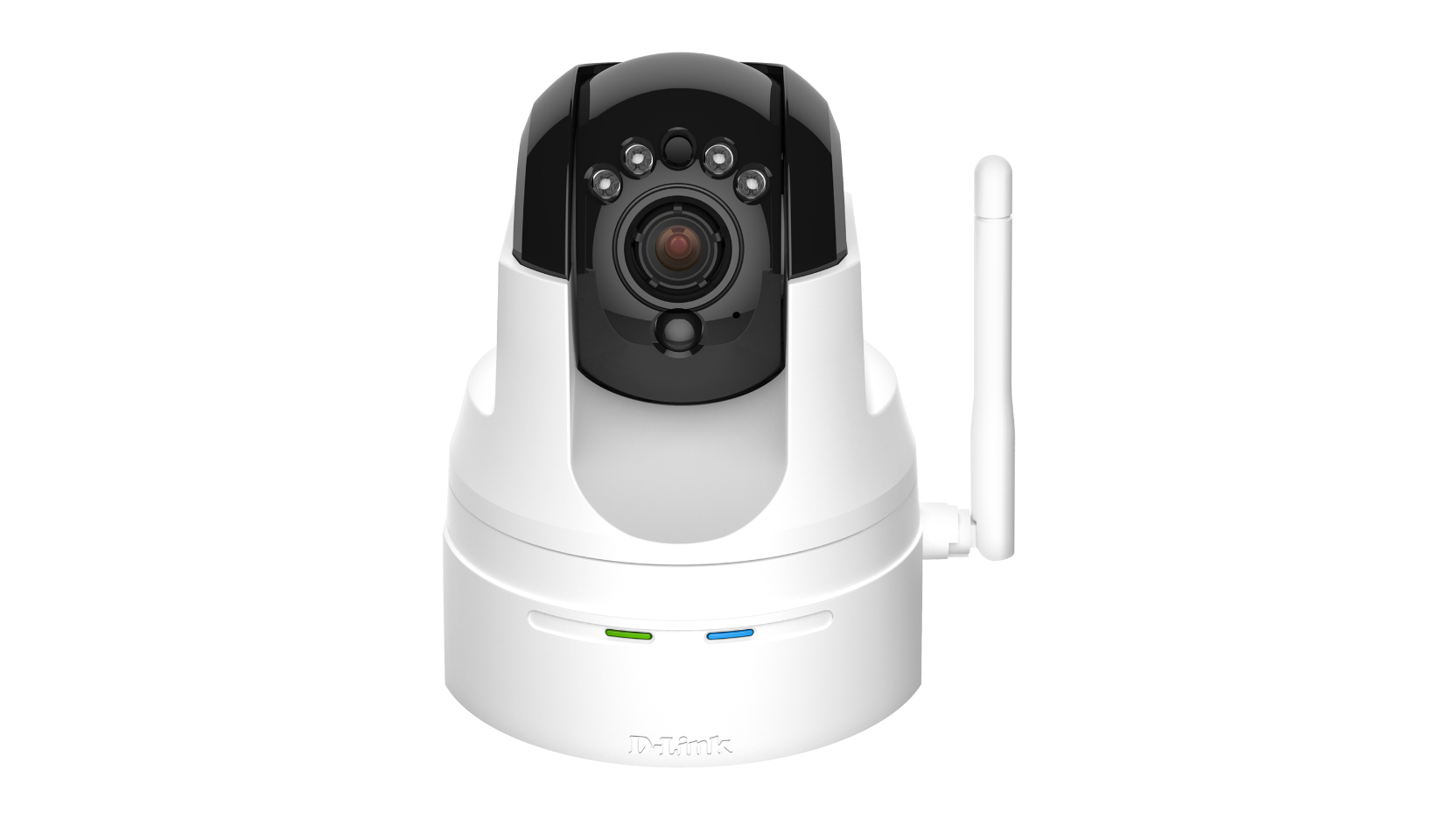

D-Link DCS-5222L/ABB security camera Dome IP security camera Indoor

D-Link DCS-5222L/ABB security camera Dome IP security camera Indoor

1280 x 720 pixels Ceiling/Wall/Desk

Model DCS-5222L/ABBEAN 790069408656

89 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight340 g
  • ColourBlack, White
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
340 g
Colour
Black, White
Form factor
Dome
Minimum illumination
0 lx
Brand
D-Link
Model
DCS-5222L/ABB
Part number
DCS-5222L/ABB
EAN / UPC
790069408656
Also known as
D-Link DCS-5222L/ABB security camera Dome IP security camera Indoor 1280 x 720 pixels Ceiling/Wall/Desk

Specifications

89 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired & Wireless
PTZ controlYes
Preset pointsYes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
Antenna typeExternal
Antennas quantity1
CertificationCE, FCC Class B, C-Tick, CE LVD

Design

Form factorDome
Mounting typeCeiling/Wall/Desk
Product colourBlack, White

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal98°
Lens viewing angle, vertical52°
Lens viewing angle, diagonal115°
Tilt angle range-20 - 100°
Tilt speed80 °/sec
Pan range-170 - 170°
Pan speed80 °/sec
Preset programs quantity32
Camera shutter speed1/7.5 - 1/10000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom10x
Maximum aperture number2
Fixed focal length2.4 mm

Night vision

Night visionYes
Night vision distance8 m
LED typeIR

Video

Maximum resolution1280 x 720 pixels
Total megapixels1 MP
Video formats supportedH.264, M-JPEG
Supported graphics resolutions320 x 176, 320 x 240, 480 x 272, 640 x 360, 800 x 448, 1280 x 720 (HD 720)
Frame rate30 fps
Video streamingYes
Flip & mirrorYes
Full HDNo
Image quality adjustmentBrightness, Contrast, Saturation
Text caption overlayYes
Time stamp overlayYes

Audio

Built-in speaker(s)Yes
Audio formats supportedAAC, G.711
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv6, IPv4, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP/HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP/RTSP/RTCP, IP filtering, QoS, CoS, Multicast, IGMP, ONVIF
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology10/100Base-T(X)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC

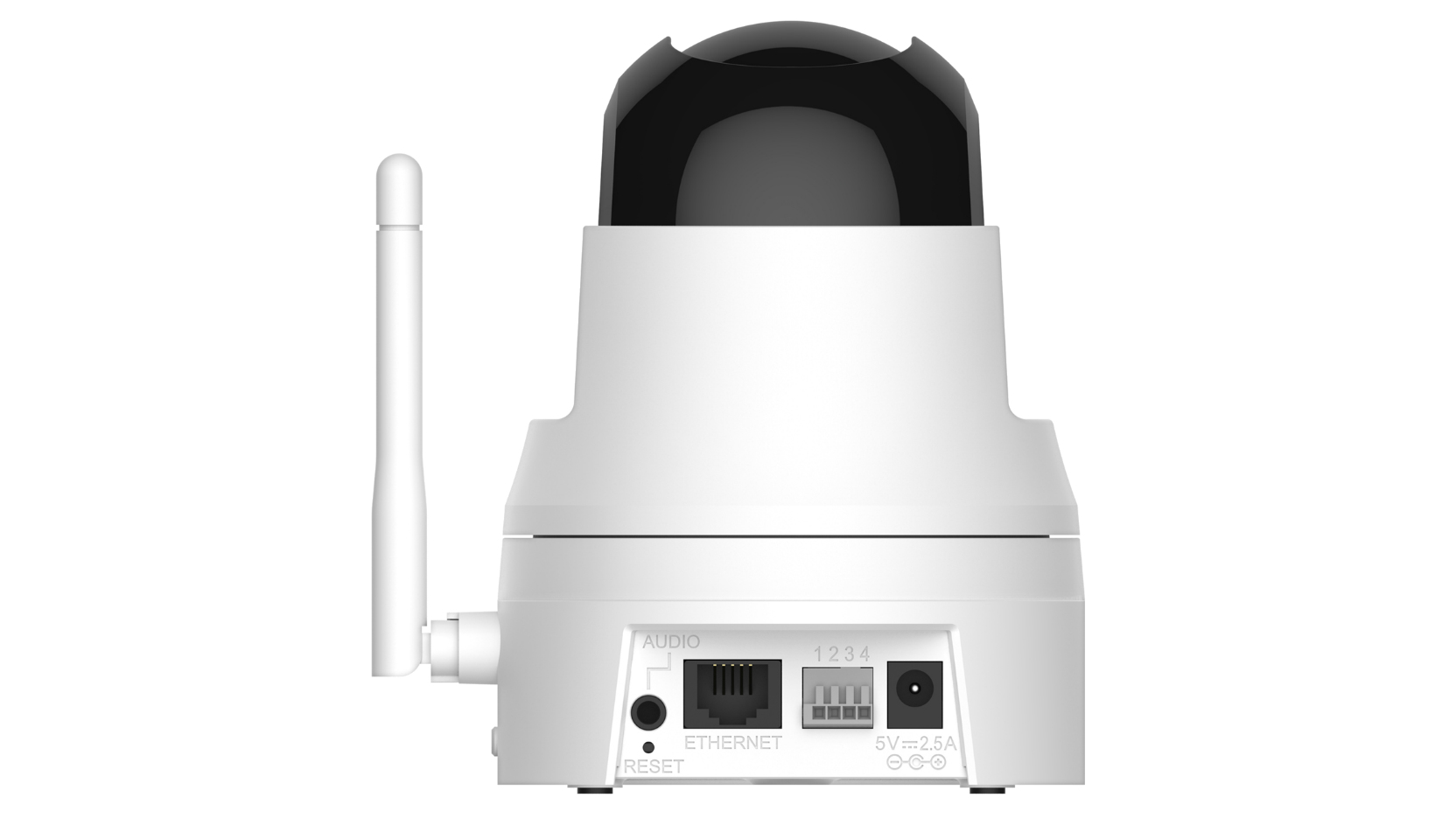

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Headphone outputs1

Security

Password protectionYes
Alert notification typeSnapshot alert message
IP address filteringYes
Video motion detectionYes

Management features

Web browserYes
Reset buttonYes
WPS push buttonYes

Power

Power source typeDC
DC output voltage5
DC output current2.5 A
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%

System requirements

Windows operating systems supportedYes
Mobile operating systems supportedAndroid, iOS
Minimum system requirementsMicrosoft Windows 8/7/Vista/XP SP3; Microsoft Internet Explorer 8, Firefox 12, Chrome 20, Safari 4, other Java-enabled browser

Weight & dimensions

Width120 mm
Depth103.2 mm
Height130 mm
Weight340 g

Packaging content

Number of cameras1
Remote control includedYes
Mounting kitYes
Resource CDYes

Technical details

Removable IR-cut filterYes

Logistics data

Harmonized System (HS) code85258900
