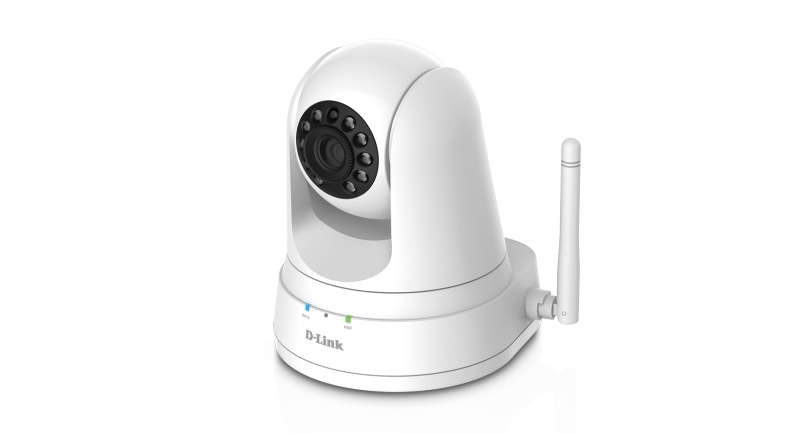

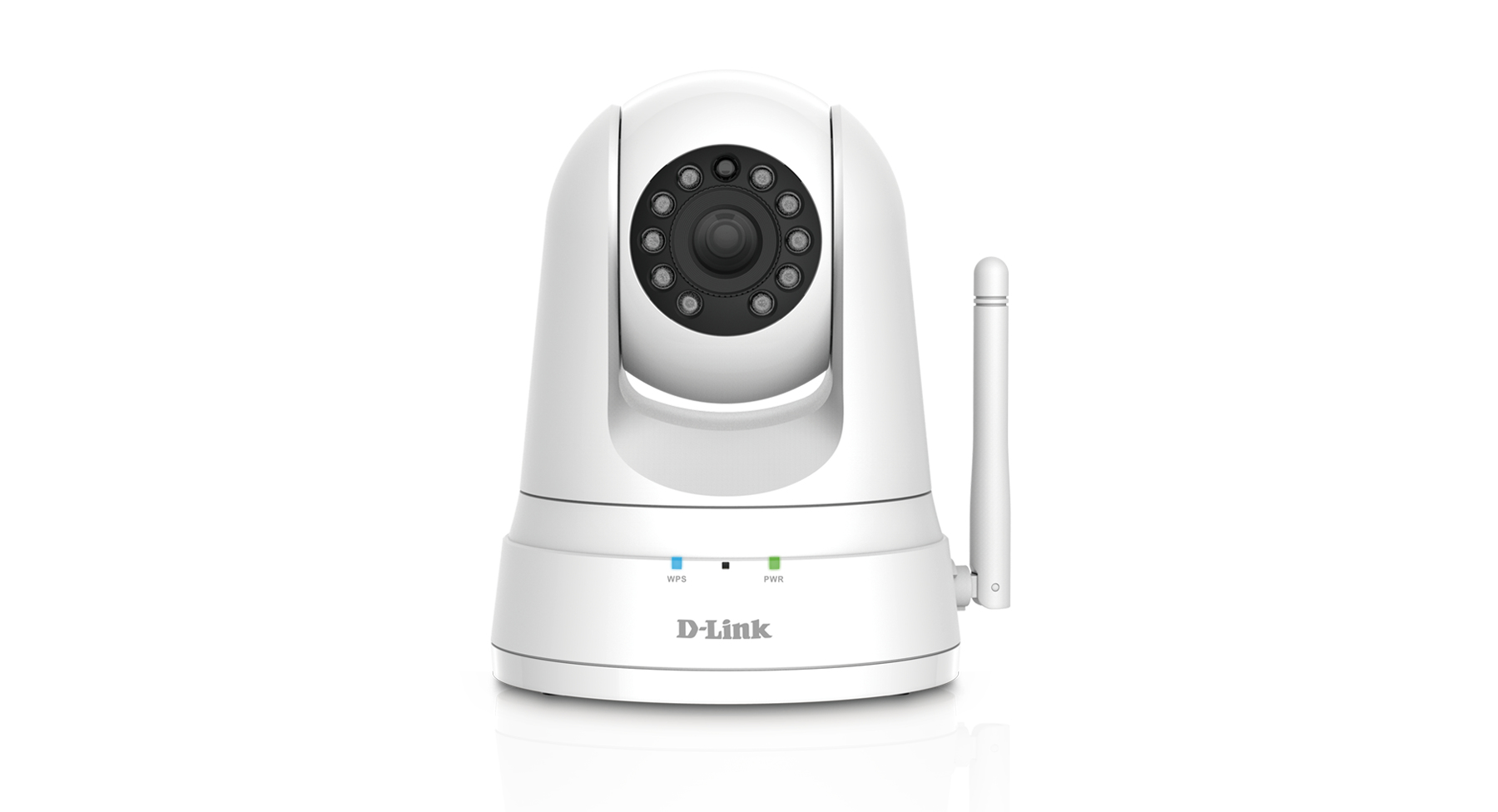

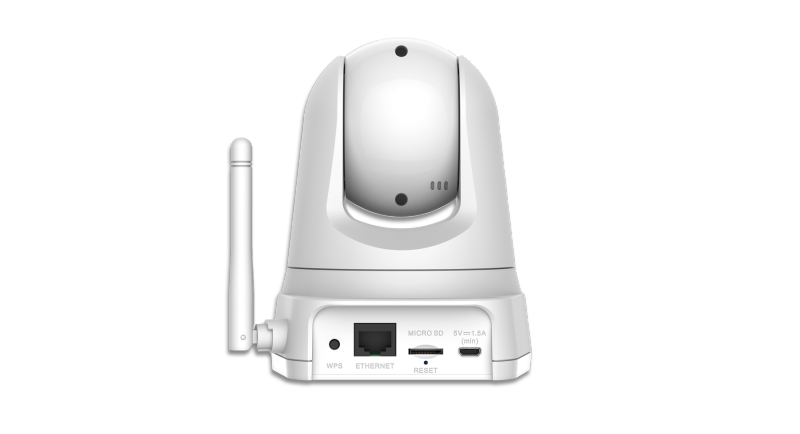

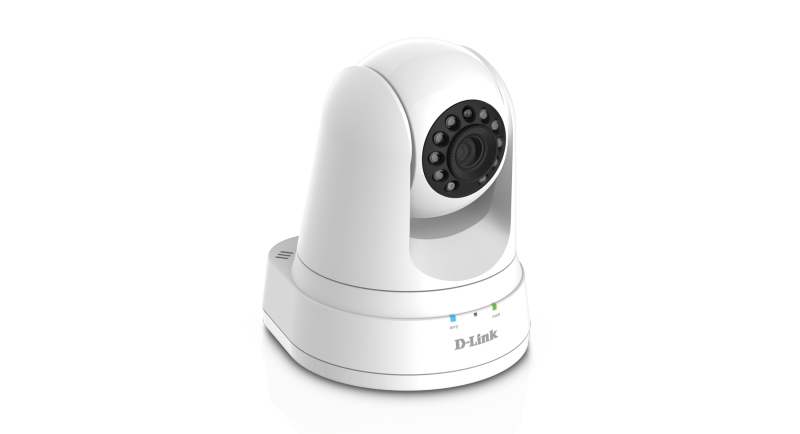

D-Link DCS-5030L security camera Spherical IP security camera Indoor

1280 x 720 pixels Desk

Model DCS-5030LEAN 790069415807

79 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight292.4 g
ColourWhite
Form factorSpherical
Minimum illumination1 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 292.4 g
Colour: White
Form factor: Spherical
Minimum illumination: 1 lx

Brand: D-Link
Category: Security Camera
Model: DCS-5030L
Part number: DCS-5030L
EAN / UPC: 790069415807, 667649005997, 790069415791, 790069416255 +1 more
Also known as: D-Link DCS-5030L security camera Spherical IP security camera Indoor 1280 x 720 pixels Desk

Specifications

79 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Certification	CE CE LVD FCC Class B ICES

Design

Specification	Value
Form factor	Spherical
Mounting type	Desk
Product colour	White
LED indicators	Yes

Camera

Specification	Value
Minimum illumination	1 lx
Lens viewing angle, horizontal	94.36°
Lens viewing angle, vertical	59.3°
Lens viewing angle, diagonal	110.44°
Tilt angle range	1 - 30°
Pan range	1 - 30°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	4x

Night vision

Specification	Value
Night vision	Yes
Night vision distance	5 m
LED type	IR

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264, M-JPEG
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720)
Supported video modes	480p, 720p
Frame rate	30 fps
Full HD	No

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB port	No
Interface	RJ-45

Security

Specification	Value
Security algorithms	WPA-PSK, WPA2, WPS

Power

Specification	Value
Power source type	PoE
DC output voltage	5
DC output current	1.5 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	20 - 80 °C
Operating relative humidity (H-H)	-25 - 70%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	116.4 mm
Depth	109.1 mm
Height	133.6 mm
Weight	292.4 g
Width (with stand)	116.4 mm
Depth (with stand)	109.1 mm
Height (with stand)	230 mm

Packaging data

Specification	Value
Package width	225 mm
Package depth	200 mm
Package height	135 mm
Package weight	702 g

Packaging content

Specification	Value
Number of cameras	1

Logistics data

Specification	Value
Master (outer) cases per pallet (air)	50 pc(s)
Master (outer) cases per pallet (sea)	50 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	274.5 kg
Pallet gross weight (sea)	274.5 kg
Pallet gross width	120 cm
Pallet height (air)	2 m
Pallet height (sea)	2 m
Products per pallet (air)	250 pc(s)
Products per pallet (sea)	250 pc(s)
Shipping (inner) case gross weight	5.12 kg
Shipping (inner) case height	37.3 cm
Shipping (inner) case length	43.1 cm
Shipping (inner) case net weight	2.85 kg
Shipping (inner) case width	24.5 cm
Products per shipping (inner) case	5 pc(s)
