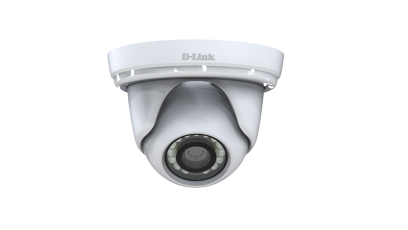

D-Link DCS-4802E security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model DCS-4802EEAN 790069422683

74 specifications

ConnectivityWired
TypeIP security camera
Weight370 g
ColourWhite
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 370 g
Colour: White
Form factor: Dome
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-4802E
Part number: DCS-4802E
EAN / UPC: 790069422683, 790069416040, 790069422669, 4056203530437 +1 more
Also known as: D-Link DCS-4802E security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

74 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE (Class A) CE LVD FCC (Class A) C-Tick

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	96°
Lens viewing angle, vertical	54°
Lens viewing angle, diagonal	108°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Digital zoom	10x
Fixed focal length	2.8 mm
Focus adjustment	1.8

Night vision

Specification	Value
Night vision	Yes
Night vision distance	30 m
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.264, MPEG
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	30 fps
Noise reduction	Yes
Full HD	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Security

Specification	Value
Motion sensor	Yes
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
DC output voltage	+12V
DC output current	1.5 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width	113 mm
Depth	113 mm
Height	85 mm
Diameter	11.3 cm
Weight	370 g

Packaging data

Specification	Value
Package width	137 mm
Package depth	208 mm
Package height	95 mm
Package weight	691.5 g

Packaging content

Specification	Value
Number of cameras	1

Other features

Specification	Value
Compliance industry standards	PoE IEEE 802.3af

Logistics data

Specification	Value
Master (outer) cases per pallet (air)	40 pc(s)
Master (outer) cases per pallet (sea)	56 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	326.6 kg
Pallet gross weight (sea)	448.4 kg
Pallet gross width	120 cm
Pallet height (air)	138.5 cm
Pallet height (sea)	188.5 cm
Products per pallet (air)	400 pc(s)
Products per pallet (sea)	560 pc(s)
Shipping (inner) case gross weight	7.62 kg
Shipping (inner) case height	25 cm
Shipping (inner) case length	50.8 cm
Shipping (inner) case net weight	6.92 kg
Shipping (inner) case width	29.7 cm
Products per shipping (inner) case	10 pc(s)
