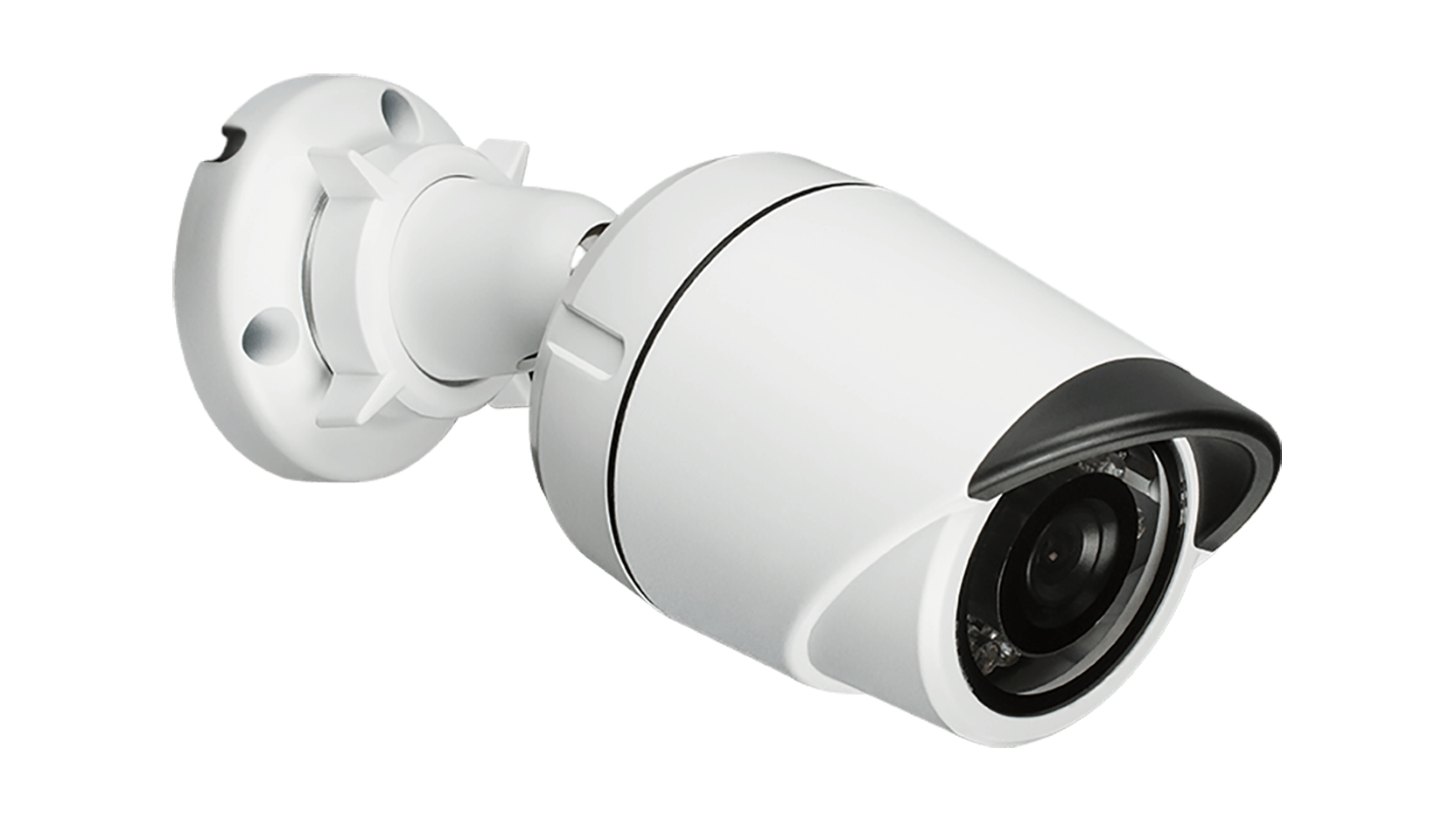

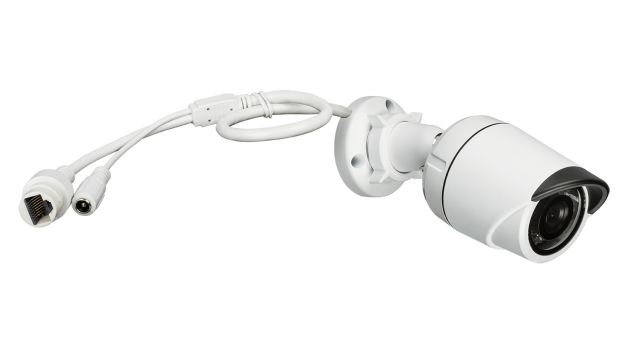

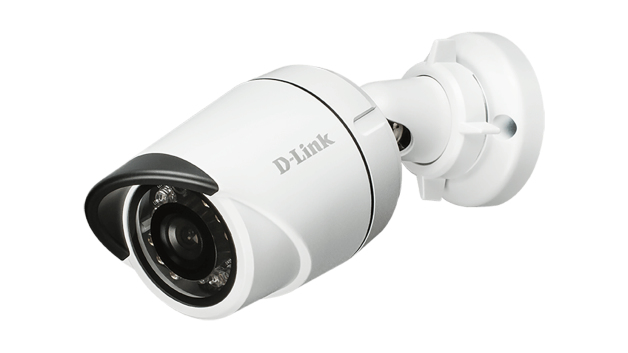

D-Link DCS-4703E security camera Bullet IP security camera Outdoor

2048 x 1536 pixels Ceiling/wall

Model DCS-4703EEAN 790069428234

83 specifications

ConnectivityWired
TypeIP security camera
Weight445 g
ColourWhite
Form factorBullet
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 445 g
Colour: White
Form factor: Bullet
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-4703E
Part number: DCS-4703E
EAN / UPC: 790069428234, 790069429668, 790069429675
Also known as: D-Link DCS-4703E security camera Bullet IP security camera Outdoor 2048 x 1536 pixels Ceiling/wall

Specifications

83 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Certification	CE, CE LVD, FCC, C-Tick

Design

Specification	Value
Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
International Protection (IP) code	IP66
Weatherproof	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	70°
Lens viewing angle, vertical	40°
Lens viewing angle, diagonal	80°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	10x
Maximum aperture number	1.8
Fixed focal length	3.6 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	20 m
LED type	IR

Video

Specification	Value
Maximum resolution	2048 x 1536 pixels
Total megapixels	3 MP
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	900 x 720, 800 x 592, 800 x 448, 320 x 176, 480 x 272, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 1080, 2048 x 1536 (QXGA)
Frame rate	30 fps
Video streaming	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af
Supported network protocols	IPv6, IPv4, ARP, TCP/IP, UDP, ICMP, DHCP, NTP (D-Link), DNS, DDNS (D-Link), SMTP, FTP, HTTP / HTTPS, Samba, PPPoE, UPnP, RTP / RTSP/ RTCP, CoS, ONVIF
Cabling technology	10/100Base-T(X)
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Ports & interfaces

Specification	Value
Interface	RJ-45

Security

Specification	Value
Password protection	Yes
Password protection type	Supervisor, User
Alert notification type	E-mail, Snapshot alert message
IP address filtering	Yes
Privacy protection	Yes
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Remotely operated	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	6.4 W
DC output voltage	12
DC output current	1.5 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimat
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Weight	445 g

Packaging data

Specification	Value
Package width	137 mm
Package depth	208 mm
Package height	95 mm
Package weight	766.5 g

Packaging content

Specification	Value
Number of cameras	1

Logistics data

Specification	Value
Master (outer) cases per pallet (air)	40 pc(s)
Master (outer) cases per pallet (sea)	56 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	357.8 kg
Pallet gross weight (sea)	490.1 kg
Pallet gross width	120 cm
Pallet height (air)	138.5 cm
Pallet height (sea)	188.5 cm
Products per pallet (air)	400 pc(s)
Products per pallet (sea)	560 pc(s)
Shipping (inner) case gross weight	8.39 kg
Shipping (inner) case height	25 cm
Shipping (inner) case length	50.8 cm
Shipping (inner) case net weight	7.7 kg
Shipping (inner) case width	29.7 cm
Products per shipping (inner) case	10 pc(s)
