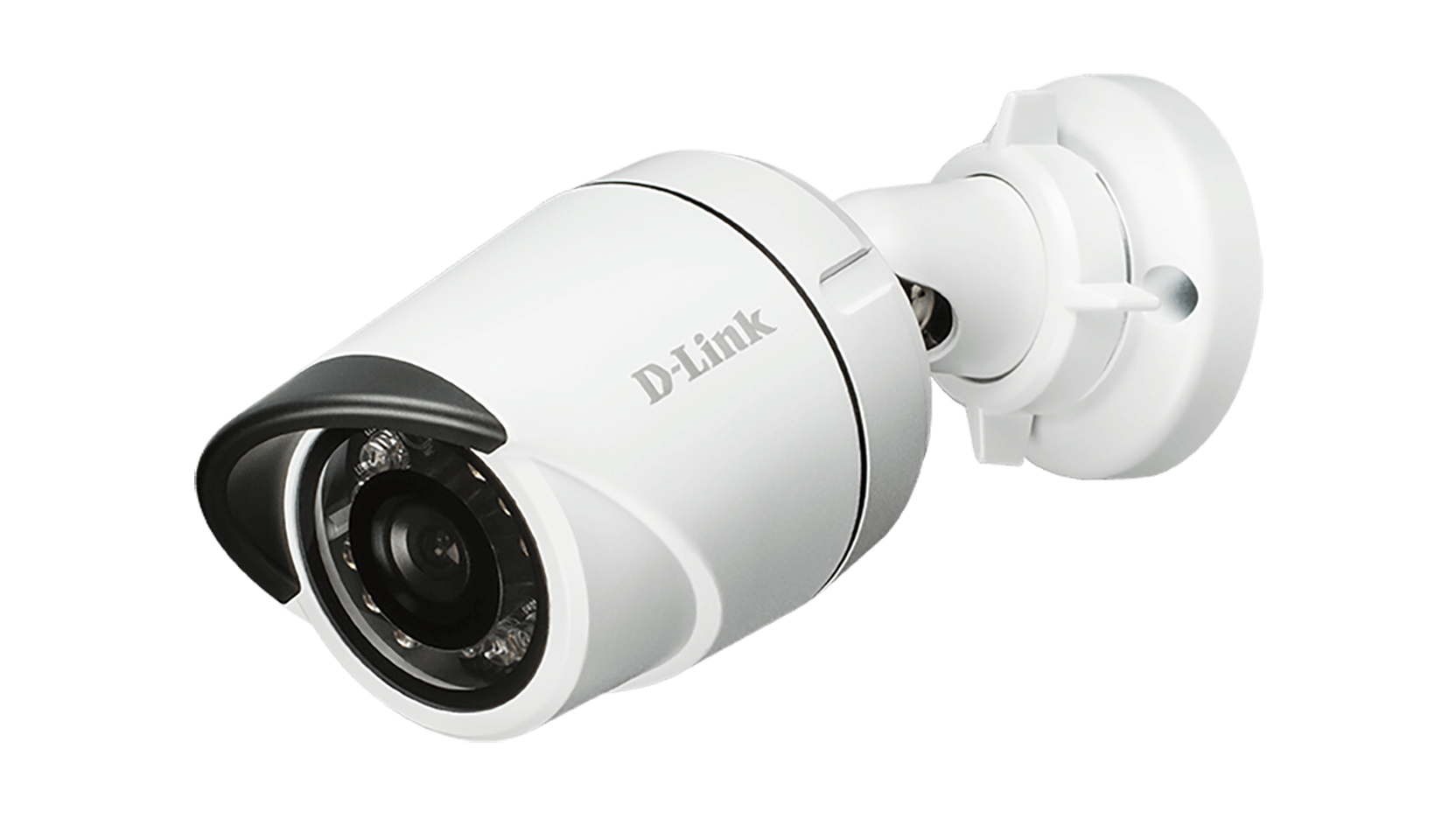

D-Link DCS-4701E security camera Bullet IP security camera Indoor & outdoor

1280 x 720 pixels

Model DCS-4701EEAN 790069417634

72 specifications

ConnectivityWired
TypeIP security camera
Weight445 g
ColourWhite
Form factorBullet
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 445 g
Colour: White
Form factor: Bullet
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-4701E
Part number: DCS-4701E
EAN / UPC: 790069417634, 790069415333, 790069417610, 790069417641 +1 more
Also known as: D-Link DCS-4701E security camera Bullet IP security camera Indoor & outdoor 1280 x 720 pixels

Specifications

72 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE (Class A) CE LVD FCC (Class A) C-Tick

Design

Specification	Value
Form factor	Bullet
Product colour	White
Protection features	Vandal proof
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	96°
Lens viewing angle, vertical	54°
Lens viewing angle, diagonal	108°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")

Lens system

Specification	Value
Digital zoom	10x
Fixed focal length	2.8 mm
Focus adjustment	1.8

Night vision

Specification	Value
Night vision	Yes
Night vision distance	30 m
LED type	IR

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1.3 MP
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	960 x 720, 1280 x 720 (HD 720)
Supported video modes	720p
Frame rate	30 fps
Full HD	No

Network

Specification	Value
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
DC output voltage	+12V
DC output current	1.5 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width	65 mm
Depth	65 mm
Height	98.1 mm
Diameter	6.5 cm
Length	164 mm
Weight	445 g

Packaging data

Specification	Value
Package width	137 mm
Package depth	208 mm
Package height	95 mm
Package weight	766.5 g

Other features

Specification	Value
Compliance industry standards	PoE IEEE 802.3af

Logistics data

Specification	Value
Master (outer) cases per pallet (air)	40 pc(s)
Master (outer) cases per pallet (sea)	56 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	357.8 kg
Pallet gross weight (sea)	490.1 kg
Pallet gross width	120 cm
Pallet height (air)	138.5 cm
Pallet height (sea)	188.5 cm
Products per pallet (air)	400 pc(s)
Products per pallet (sea)	560 pc(s)
Shipping (inner) case gross weight	8.39 kg
Shipping (inner) case height	25 cm
Shipping (inner) case length	50.8 cm
Shipping (inner) case net weight	7.7 kg
Shipping (inner) case width	29.7 cm
Products per shipping (inner) case	10 pc(s)
