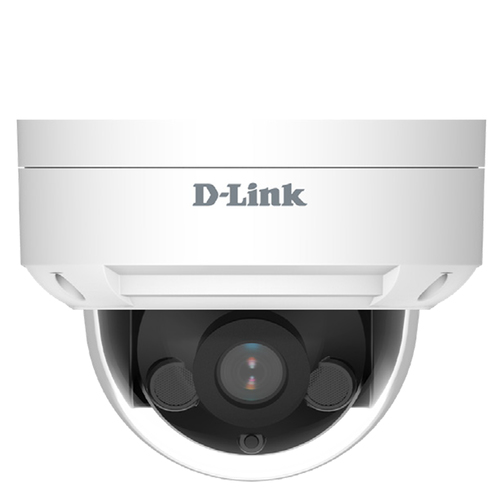

D-Link DCS-4605EV security camera Dome IP security camera Outdoor

2592 x 1440 pixels Ceiling

Model DCS-4605EVEAN 790069439858

83 specifications

ConnectivityWired
TypeIP security camera
Weight365 g
ColourWhite
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 365 g
Colour: White
Form factor: Dome
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-4605EV
Part number: DCS-4605EV
EAN / UPC: 790069439858, 790069441479, 790069446528
Also known as: D-Link DCS-4605EV security camera Dome IP security camera Outdoor 2592 x 1440 pixels Ceiling

Specifications

83 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	CE CE LVD FCC RCM

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White
Protection features	Vandal proof
International Protection (IP) code	IP66
IK code	IK10
Weatherproof	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	87°
Lens viewing angle, vertical	65°
Lens viewing angle, diagonal	110°
White balance	Auto

Image sensor

Specification	Value
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 2.9 mm (1 / 2.9")

Lens system

Specification	Value
Number of lenses	1
Zoom capability	Yes
Digital zoom	10x
Maximum aperture number	2
Closest focusing distance	0.5 m
Fixed focal length	2.8 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	20 m
LED type	IR

Video

Specification	Value
Maximum resolution	2592 x 1440 pixels
Total megapixels	5 MP
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 1080, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1920, 2592 x 1944
Automatic gain control	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3af
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP/HTTPS, PPPoE, UPnP, RTP / RTSP/ RTCP, CoS QoS/DSCP SNMP
Cabling technology	10/100Base-T(X)
Quality of Service (QoS) support	Yes

Storage

Specification	Value
Built-in HDD	No

Ports & interfaces

Specification	Value
Interface	RJ-45

Security

Specification	Value
Password protection	Yes
Alert notification type	E-mail, Snapshot alert message
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	6 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8

Weight & dimensions

Specification	Value
Height	164.7 mm
Diameter	5.9 cm
Weight	365 g

Packaging data

Specification	Value
Package width	137 mm
Package depth	208 mm
Package height	95 mm
Package weight	870 g

Logistics data

Specification	Value
Master (outer) cases per pallet (air)	40 pc(s)
Master (outer) cases per pallet (sea)	56 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	397.4 kg
Pallet gross weight (sea)	538 kg
Pallet gross width	120 cm
Pallet height (air)	138.5 cm
Pallet height (sea)	188.5 cm
Products per pallet (air)	400 pc(s)
Products per pallet (sea)	560 pc(s)
Shipping (inner) case gross weight	9.25 kg
Shipping (inner) case height	25 cm
Shipping (inner) case length	50.2 cm
Shipping (inner) case net weight	8.75 kg
Shipping (inner) case width	29.7 cm
Products per shipping (inner) case	10 pc(s)
