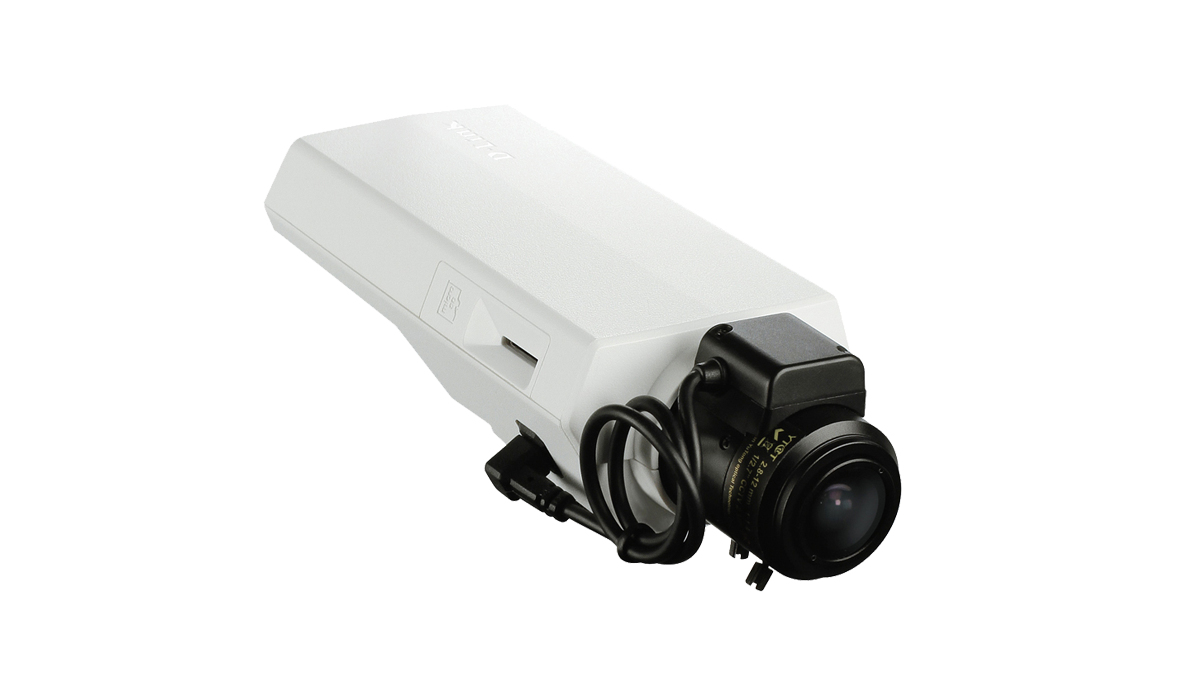

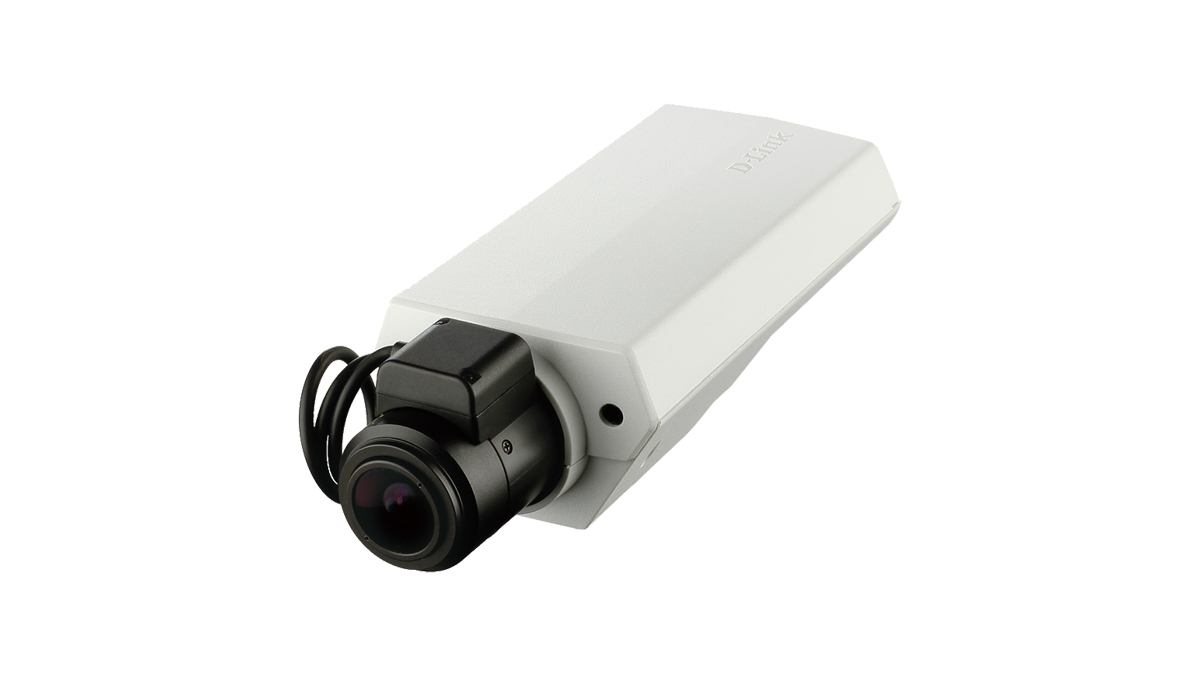

D-Link DCS-3511 security camera Box IP security camera Outdoor

D-Link DCS-3511 security camera Box IP security camera Outdoor

1280 x 800 pixels Wall

Model DCS-3511EAN 790069399268

78 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight150 g
  • ColourWhite
  • Form factorBox
  • Minimum illumination0.05 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
150 g
Colour
White
Form factor
Box
Minimum illumination
0.05 lx
Brand
D-Link
Model
DCS-3511
Part number
DCS-3511
EAN / UPC
790069399268
Also known as
D-Link DCS-3511 security camera Box IP security camera Outdoor 1280 x 800 pixels Wall

Specifications

78 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes
Infrared (IR) cut-off filterYes
Remote viewingYes
CertificationCE, CE LVD, FCC, C-Tick

Design

Form factorBox
Mounting typeWall
Product colourWhite
LED indicatorsPower

Camera

Minimum illumination0.05 lx
Lens viewing angle, horizontal73°
Lens viewing angle, vertical53°
Camera shutter speed1/5 - 1/10000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom4x
Digital zoom10x
Focal length range2.8 - 12 mm
Maximum aperture number2

Night vision

Night visionYes

Video

Maximum resolution1280 x 800 pixels
Total megapixels1 MP
Video formats supportedH.264, M-JPEG, MPEG4
Video compression formatsH.264, M-JPEG, MPEG4
Supported graphics resolutions320 x 176, 320 x 240, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA)
Frame rate30 fps
Full HDNo
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Text caption overlayYes
Time stamp overlayYes

Audio

Audio system2-way
Audio system full duplexYes
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4, IPv6, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP / HTTPS, 802.1x, Samba client, PPPoE, UPnP port forwarding, RTP / RTSP/ RTCP, IP filtering, QoS, CoS, Multicast, IGMP, ONVIF compliant, SNMP v1/v2/v3
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC

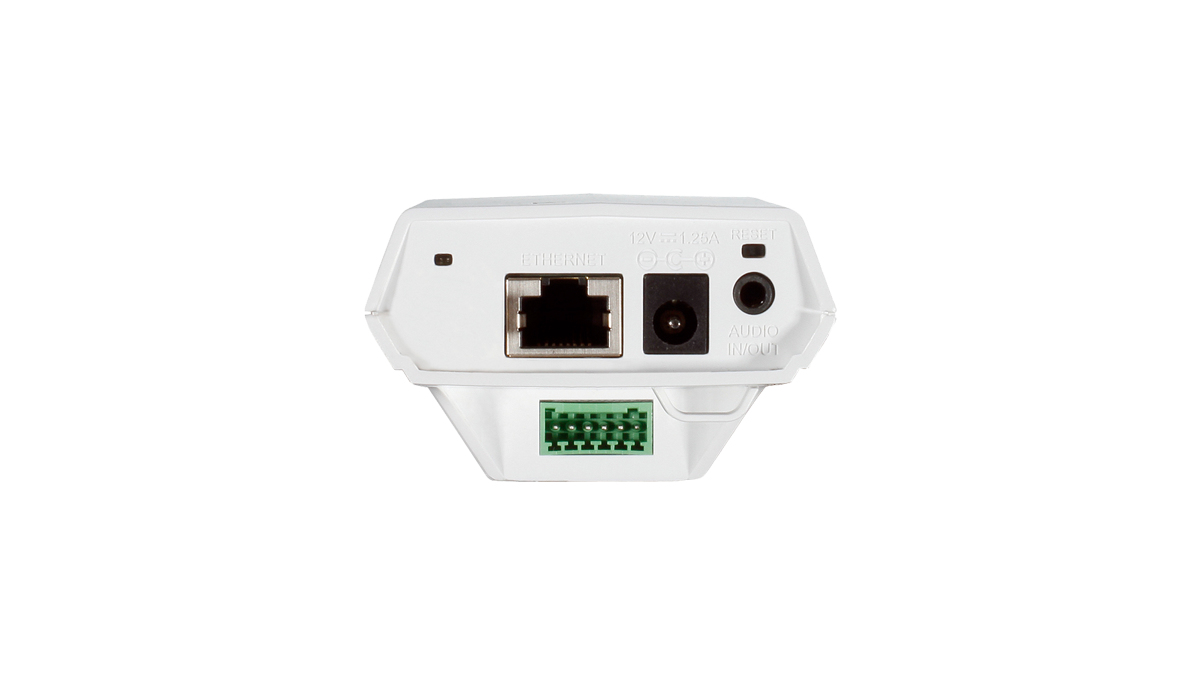

Ports & interfaces

InterfaceRJ-45

Security

Password protection typeSupervisor, User
Alert notification typeE-mail
HTTPS encryptionYes
IP address filteringYes
Motion sensorYes
Security algorithmsHTTPS, SNMP

Management features

Reset buttonYes

Power

Power source typePoE
Power consumption (Power over Ethernet (PoE))2.9 W
DC output voltage12
DC output current1.5 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Weight150 g

Packaging content

Number of cameras1
Cables includedDC, LAN (RJ-45)
Mounting brackets includedYes
ManualYes
Quick installation guideYes
Resource CDYes

Technical details

Audio input1
IrisYes
Video out1

Other features

Audio output1
Browser supportedInternet Explorer, Firefox, Chrome
