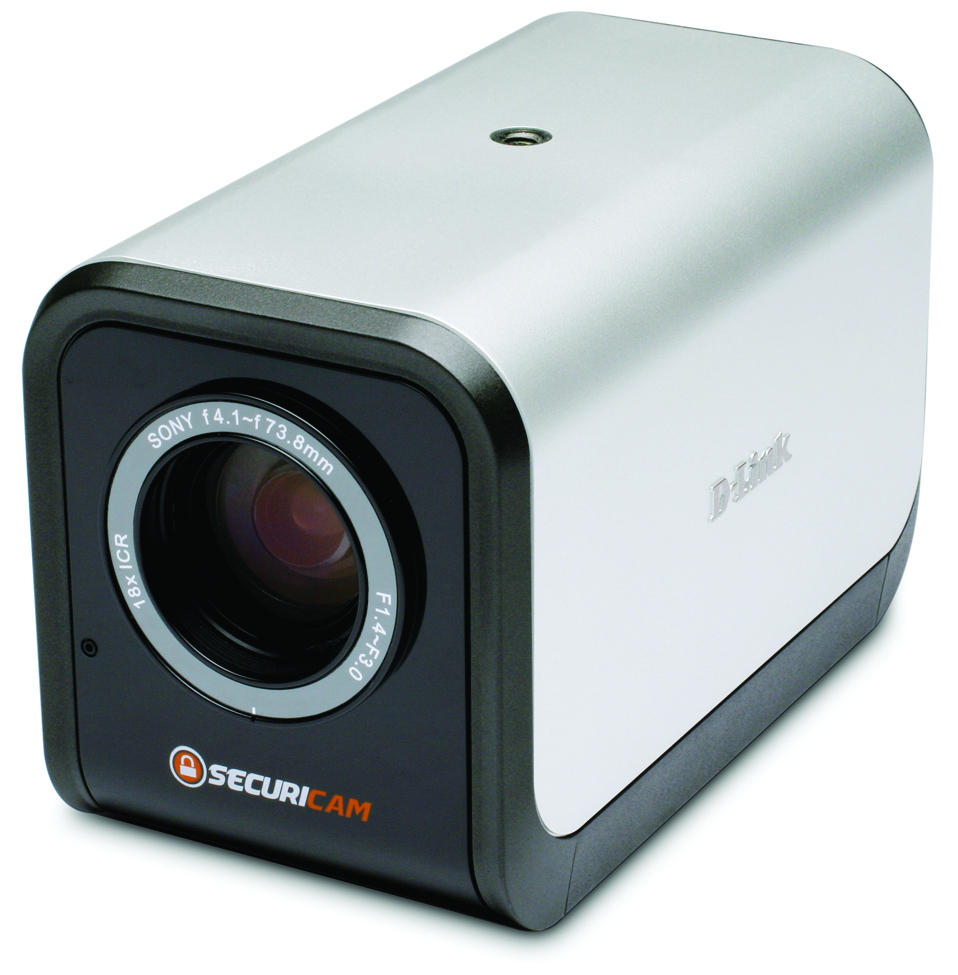

DCS-3415 Network Camera
Model DCS-3415 Network CameraPart no. DCS-3415EAN 751259850112
20 specifications
- Weight1.81 kg
- Minimum illumination0.38 lx
- Sensor typeCCD
- Focal length range4.1 - 73.8 mm
- Maximum resolution640 x 480 pixels
- Built-in microphoneYes
Overview
- Weight
- 1.81 kg
- Minimum illumination
- 0.38 lx
- Sensor type
- CCD
- Focal length range
- 4.1 - 73.8 mm
- Maximum resolution
- 640 x 480 pixels
- Built-in microphone
- Yes
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-3415 Network Camera
- Part number
- DCS-3415
- EAN / UPC
- 751259850112, 790069313752
- Also known as
- D-Link DCS-3415 Network Camera 640 x 480 pixels
Specifications
20 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.38 lx |
| Camera shutter speed | 1/2 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 4.1 - 73.8 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 640 x 480 pixels |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Supported network protocols | IPv4 DHCP ARP DNS DDNS (D-Link) TCP/IP HTTP UPnP Port Forwarding SMTP Samba FTP PPPoE NTP (D-Link) RTP UDP RTSP ICMP RTCP 3GPP IP filtering |
Security
| Specification | Value |
|---|---|
| IP address filtering | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.81 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 78.7 x 144.8 x 91.4 mm |
| I/O ports | 10/100 Mbps Fast Ethernet Auto Negotiation 802.3af Power over Ethernet (PoE)** |
| Resolution description | 640x480 |
