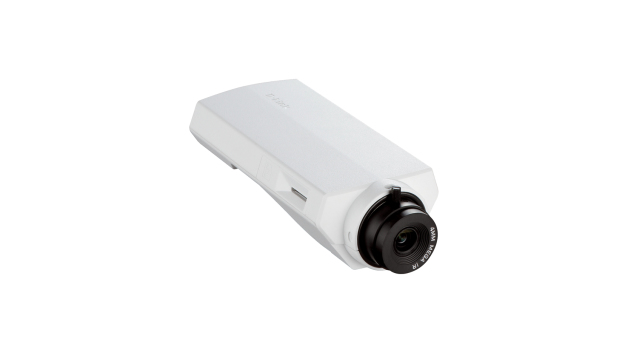

DCS-3010 Box IP security camera Indoor & outdoor
1280 x 800 pixels Ceiling/wall
Model DCS-3010Part no. DCS-3010/BEAN 5050914854669
59 specifications
- Memory256 MB
- ConnectivityWired
- TypeIP security camera
- Weight165 g
- ColourWhite
- Form factorBox
Overview
- Memory
- 256 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 165 g
- Colour
- White
- Form factor
- Box
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-3010
- Part number
- DCS-3010/B
- EAN / UPC
- 5050914854669
- Also known as
- D-Link DCS-3010 Box IP security camera Indoor & outdoor 1280 x 800 pixels Ceiling/wall
Specifications
59 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Alarm input/output | Yes |
| GPS (satellite) | No |
| Certification | CE, CE LVD, FCC, C-Tick |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Ceiling/wall |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 56.9° |
| Lens viewing angle, vertical | 35.9° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 800 pixels |
| Total megapixels | 1 MP |
| Video formats supported | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 1280 x 800 |
| Supported video modes | 720p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Audio system | 1-way |
| Audio formats supported | AAC, AMR |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Flash memory | 32 MB |
| Internal memory | 256 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Motion sensor | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 4.6 W |
| DC output voltage | +12V |
| DC output current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 63.9 mm |
| Depth | 147 mm |
| Height | 39.2 mm |
| Weight | 165 g |
