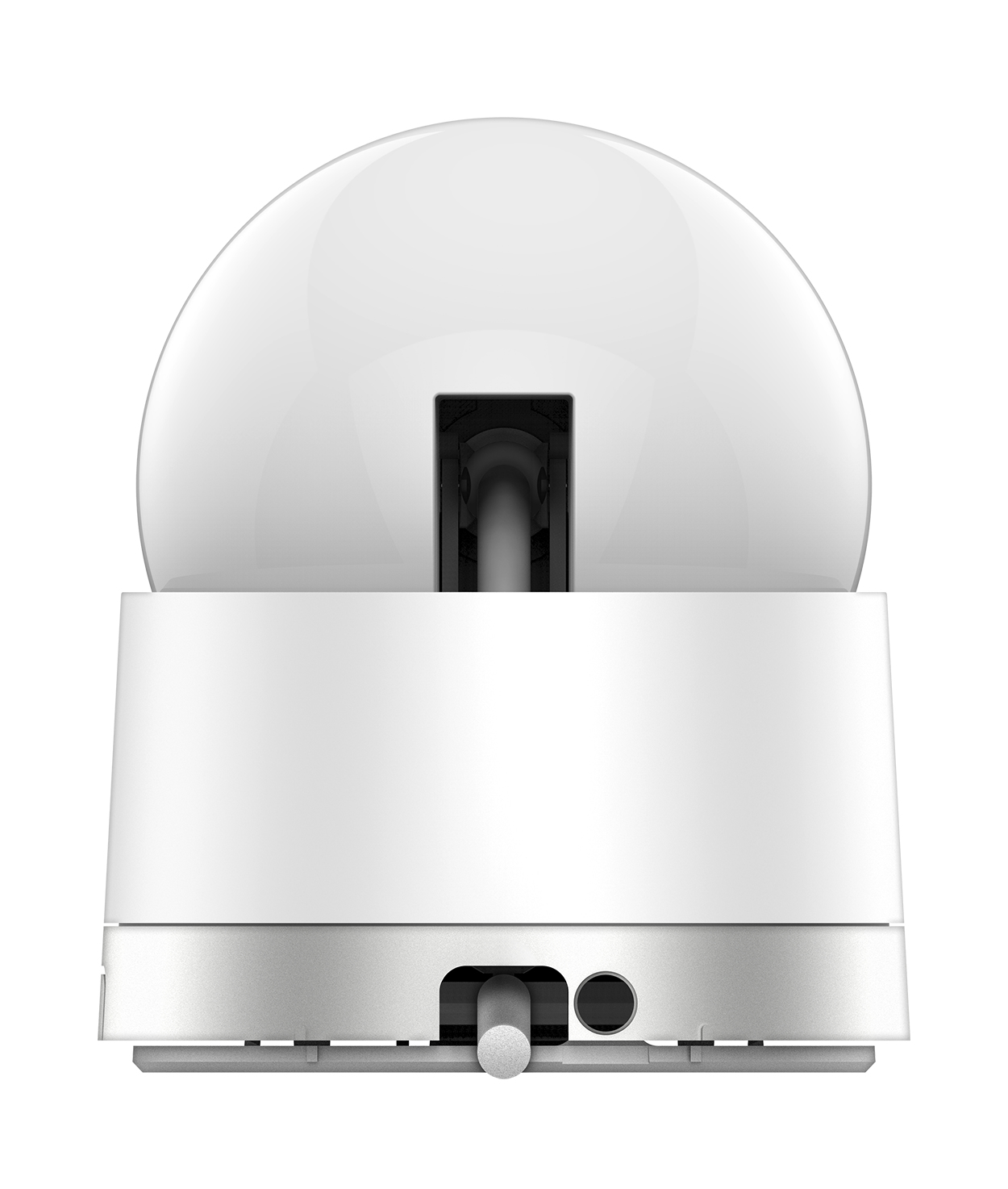

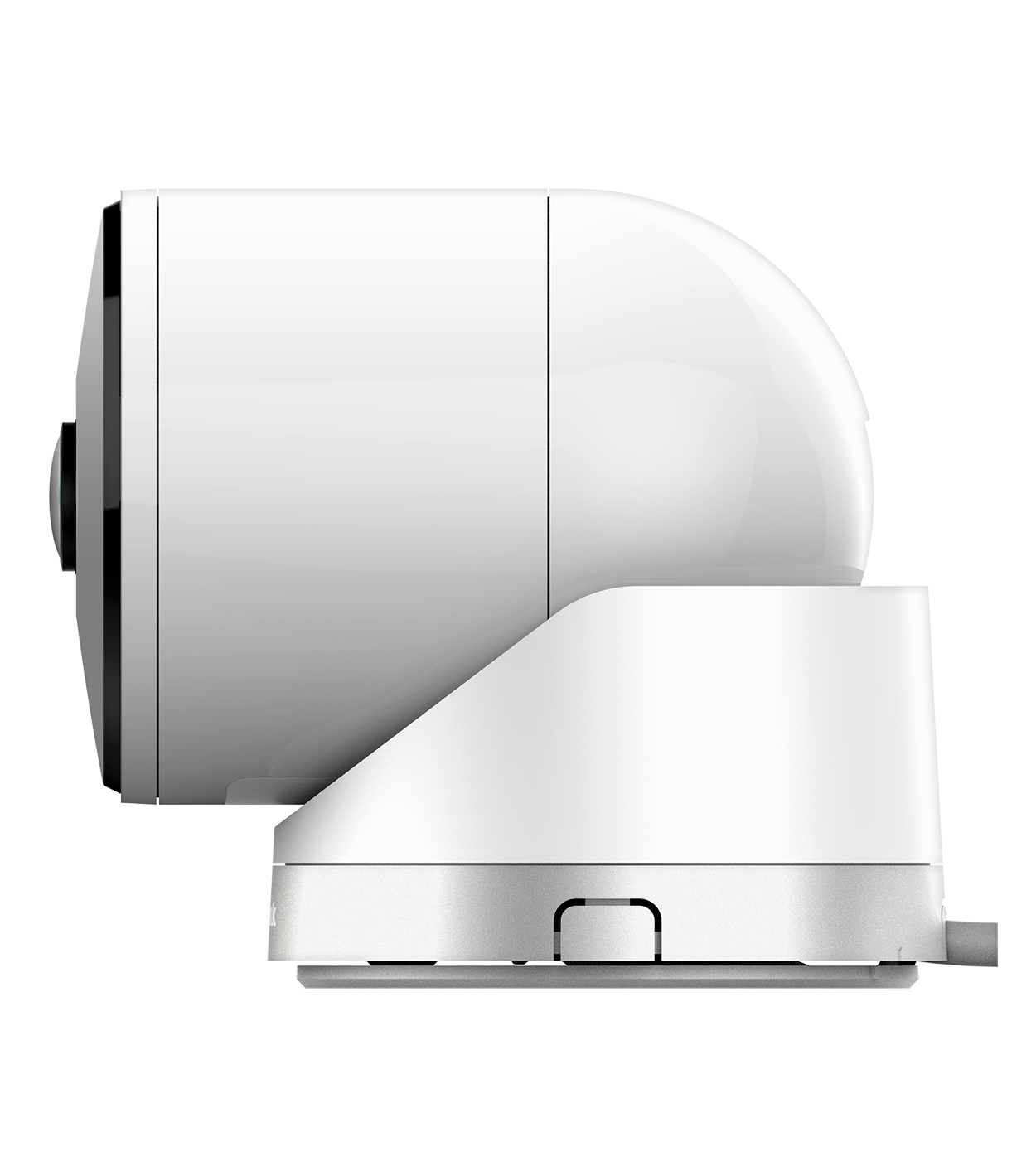

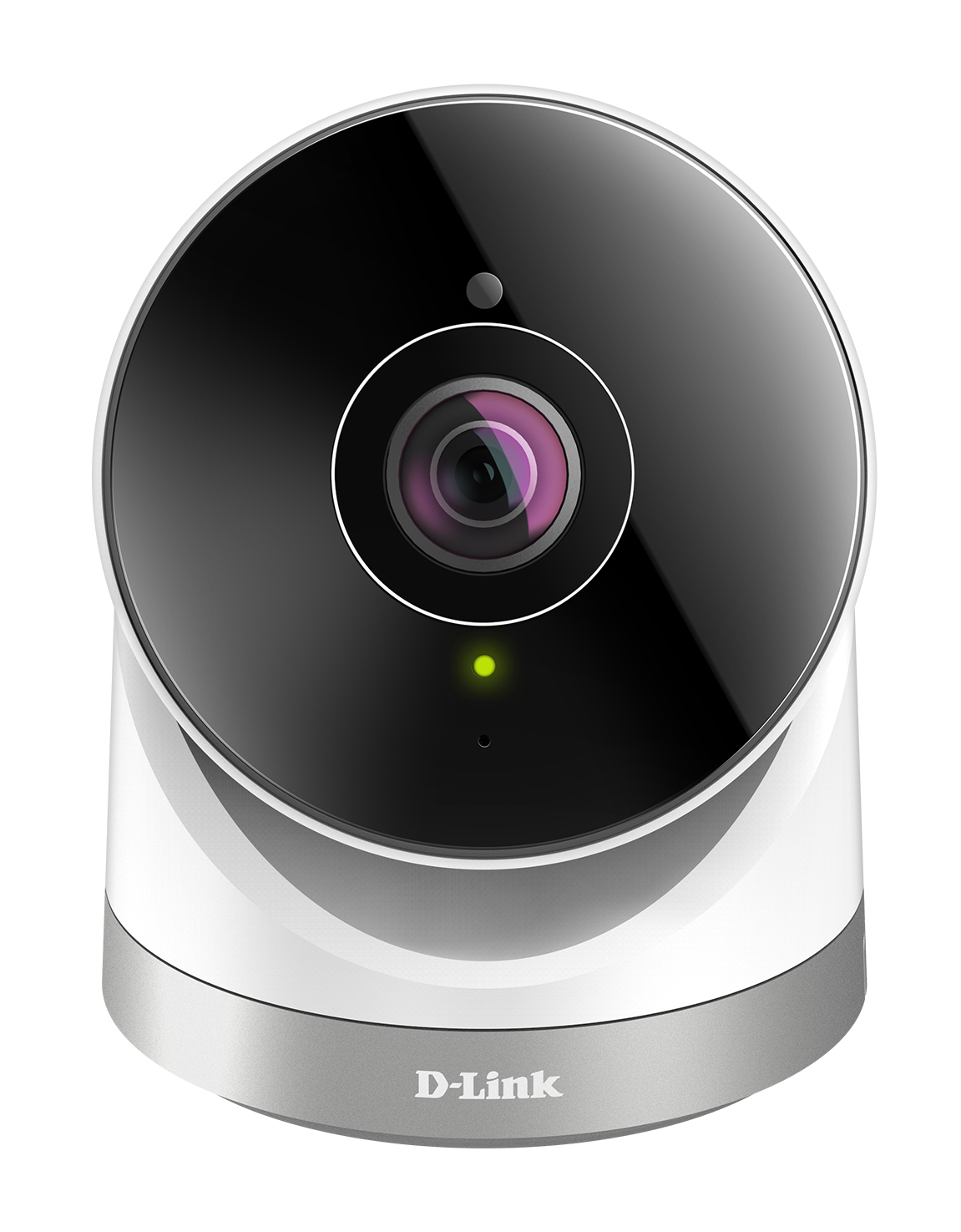

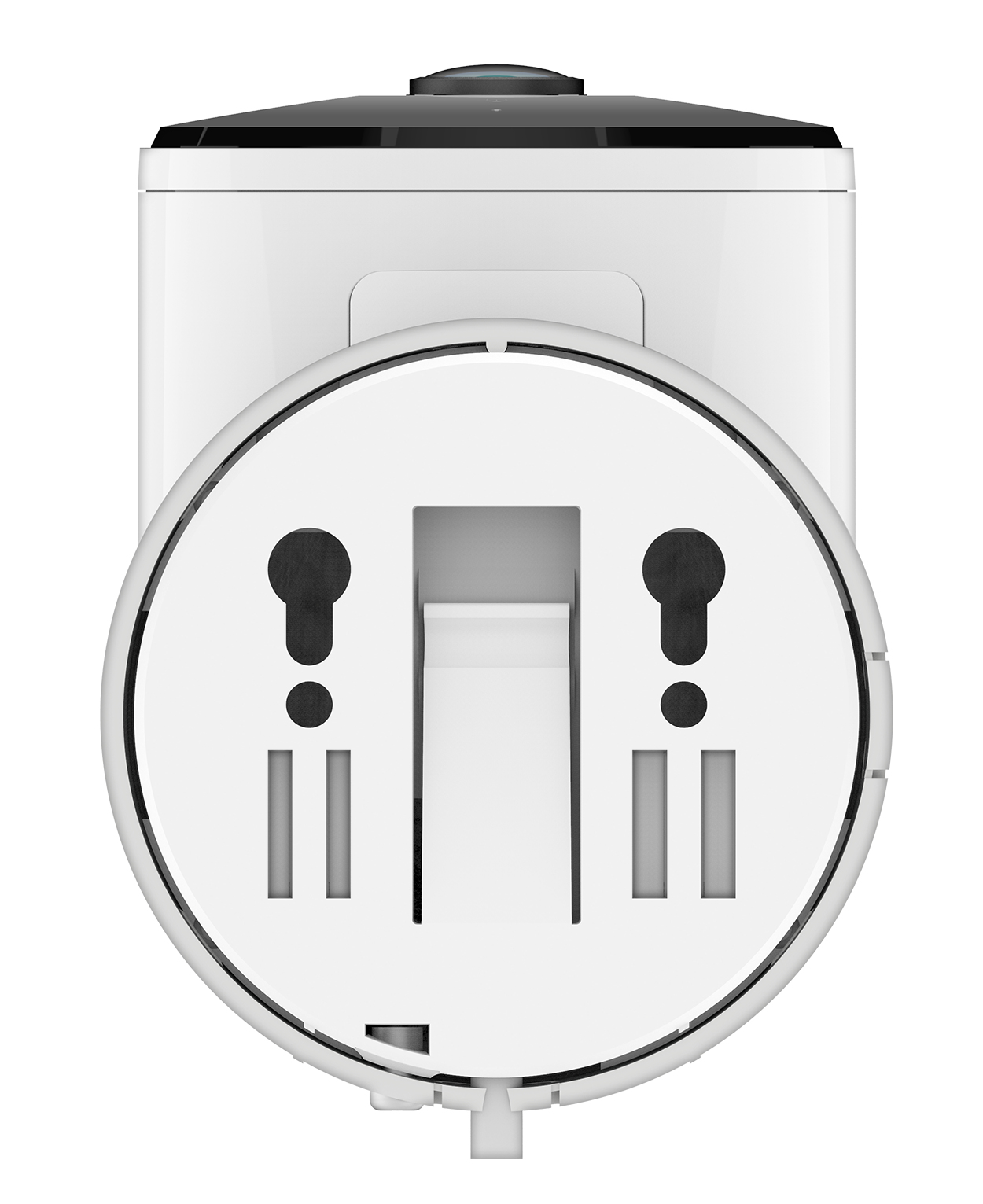

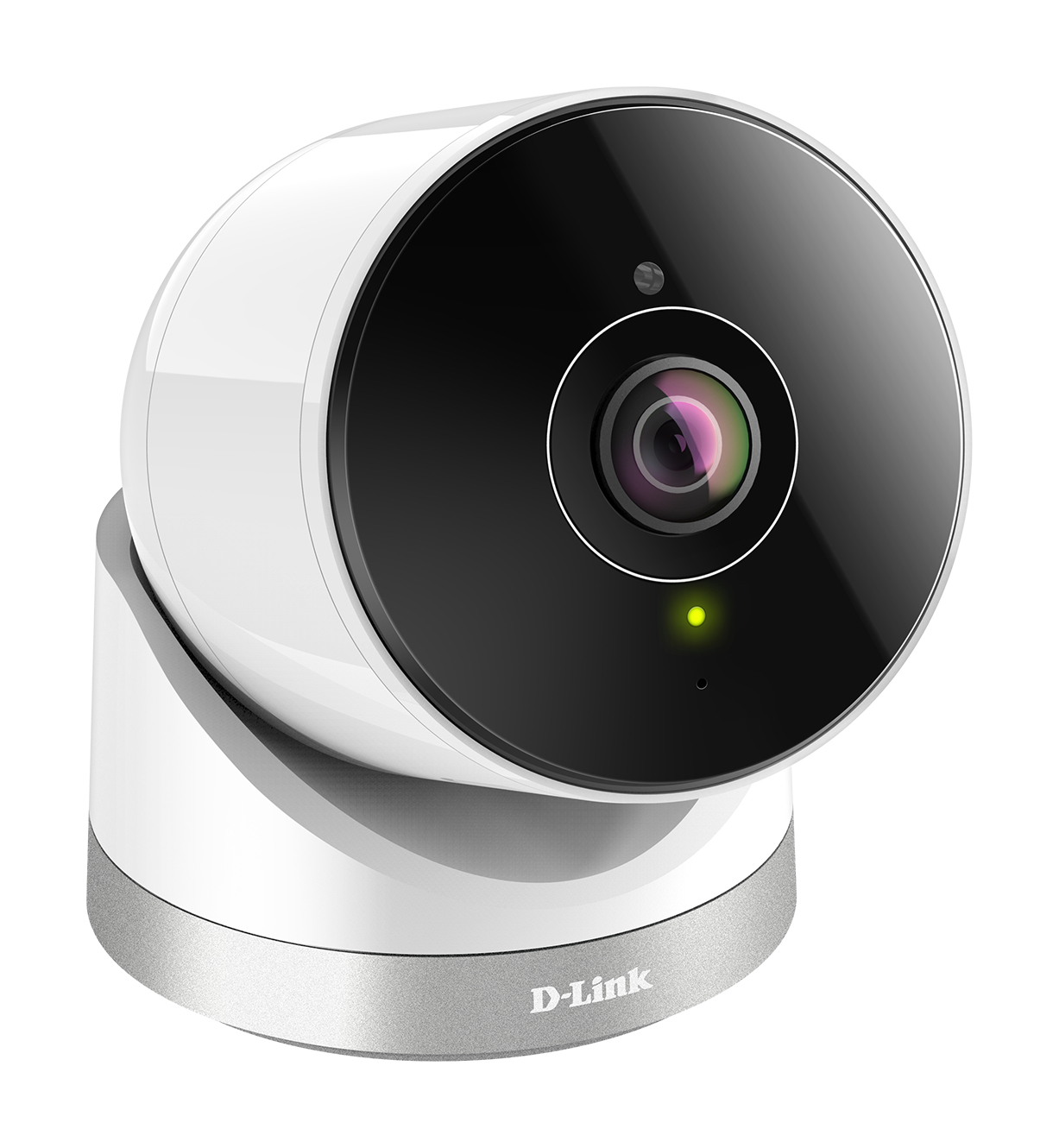

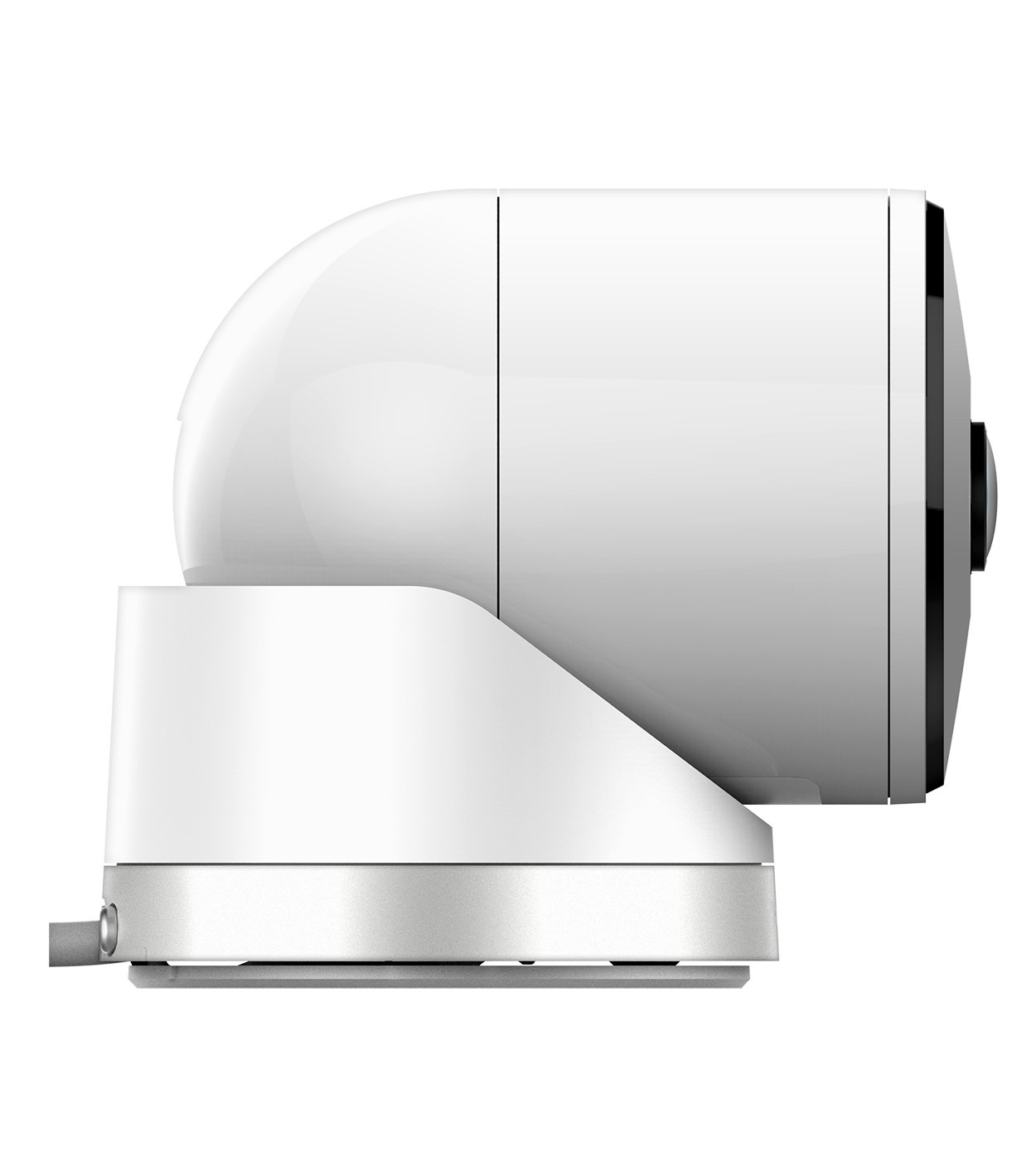

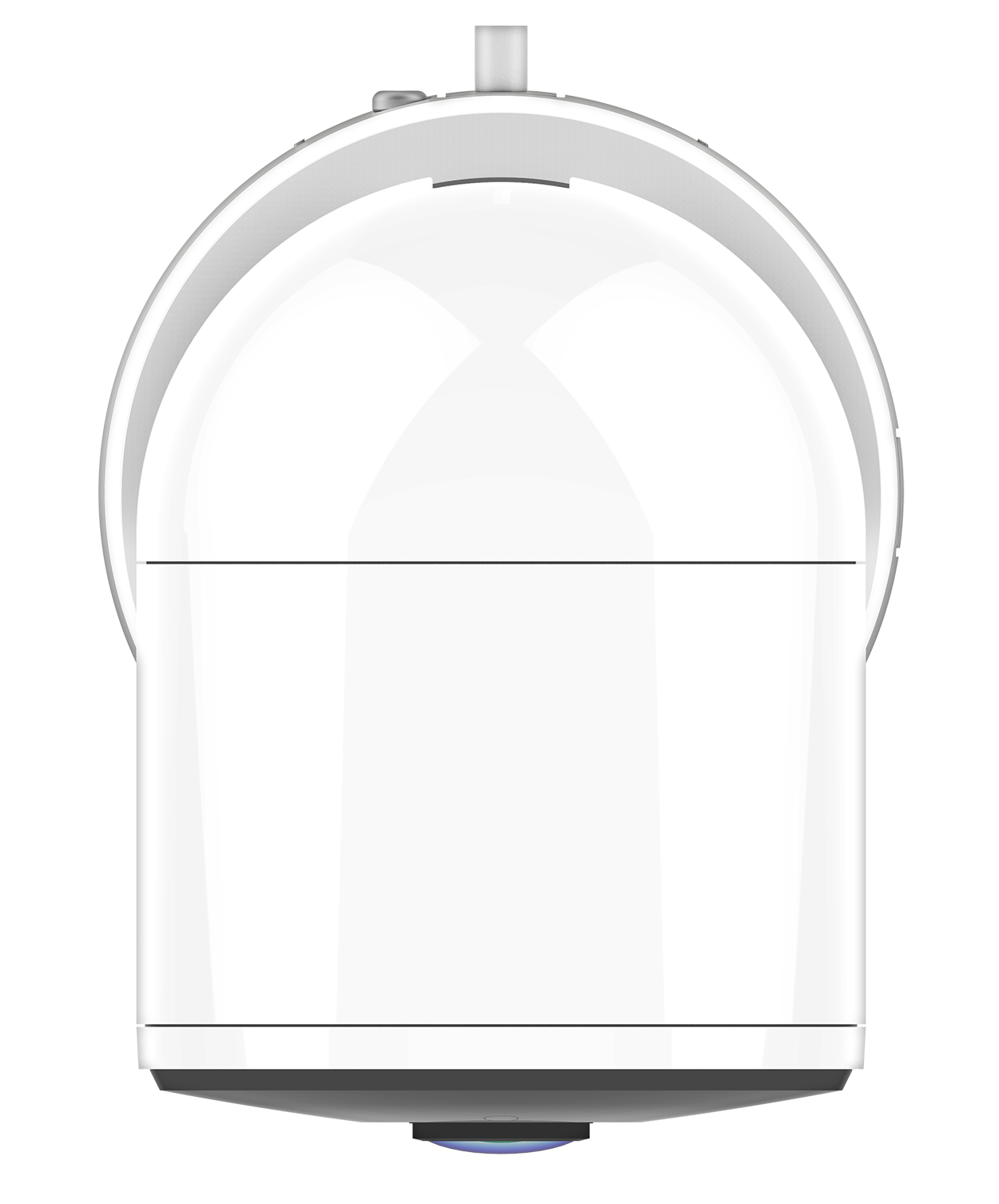

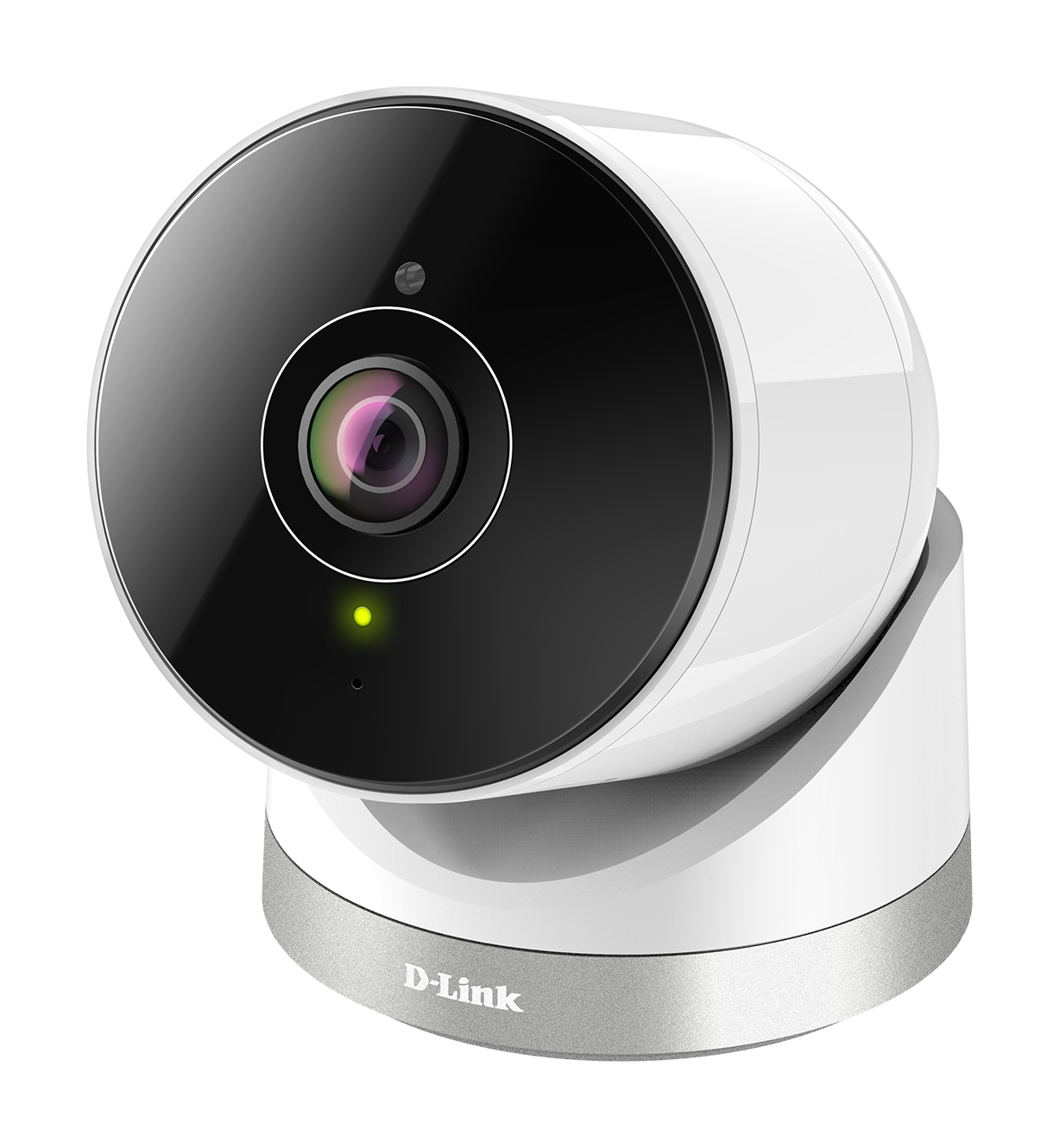

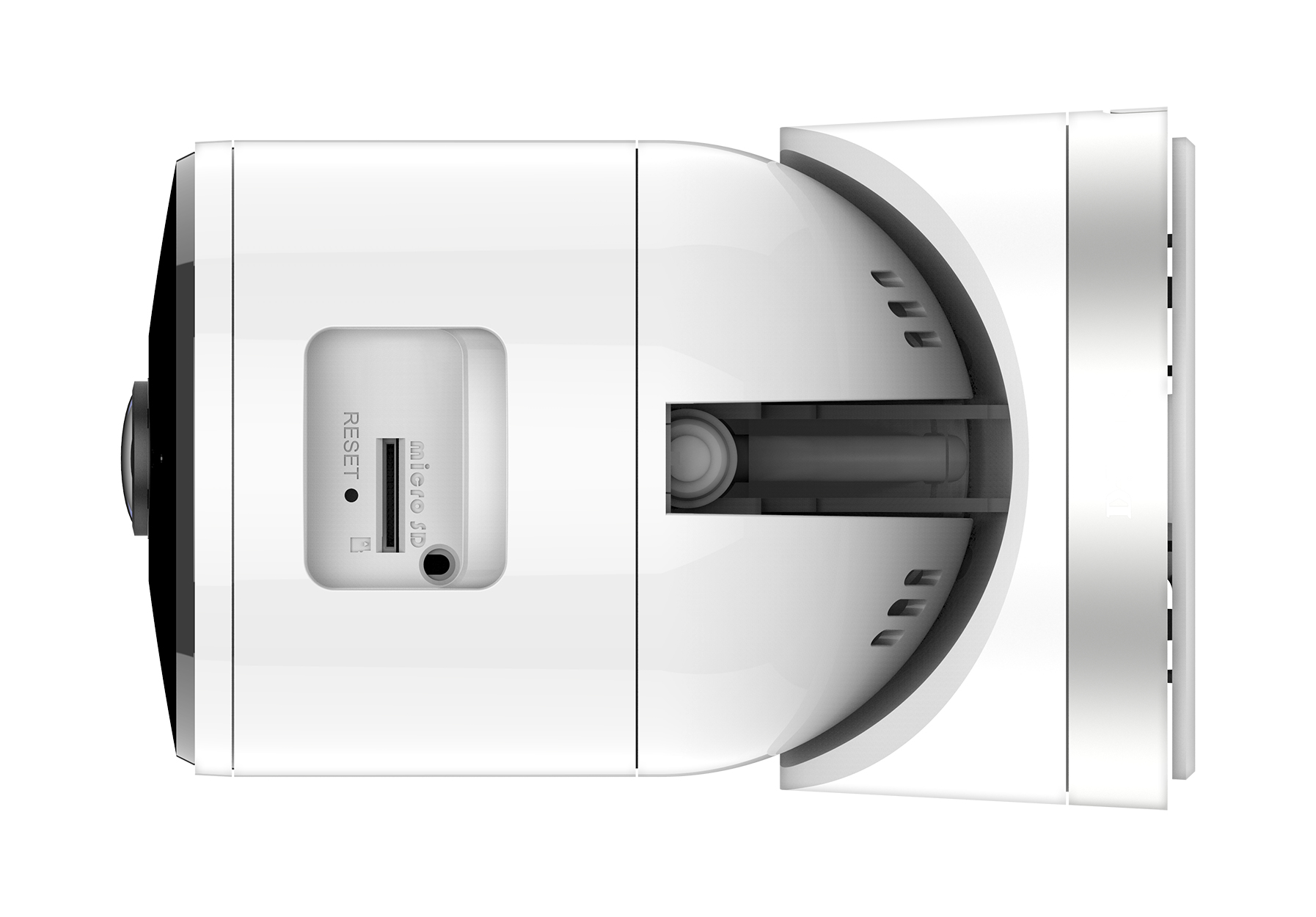

D-Link DCS-2670L security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DCS-2670LEAN 790069434549

97 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight360 g
ColourSilver, White
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 360 g
Colour: Silver, White
Form factor: Dome
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2670L
Part number: DCS-2670L
EAN / UPC: 790069434549
Also known as: D-Link DCS-2670L security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

97 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Remote viewing	Yes
Plug and Play	Yes
Certification	CE, CE LVD, FCC, ICES, RCM

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	Silver, White
LED indicators	Status
Protection features	Waterproof
International Protection (IP) code	IP65
Weatherproof	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	180°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")

Lens system

Specification	Value
Zoom capability	Yes
Maximum aperture number	2
Closest focusing distance	0.3 m
Fixed focal length	1.5 mm
Focus adjustment	2.0

Night vision

Specification	Value
Night vision	Yes
Night vision distance	4.57 m

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264
Supported graphics resolutions	640 x 360, 800 x 448, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate	30 fps
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio formats supported	AAC, G.711
Built-in microphone	Yes
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv6, IPv4, ARP, TCP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client,
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	128 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Interface	RJ-45/WLAN

Security

Specification	Value
Password protection	Yes
HTTPS encryption	Yes
Light sensor	Yes
Security algorithms	WPA, WPA2
Video motion detection	Yes

Management features

Specification	Value
Remotely operated	Yes
Reset button	Yes

Power

Specification	Value
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5 W
DC output voltage	5
DC output current	1.2 A

Operational conditions

Specification	Value
Operating temperature (T-T)	-25 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	75.7 mm
Depth	102.1 mm
Height	89.5 mm
Weight	360 g

Packaging data

Specification	Value
Package width	135 mm
Package depth	208 mm
Package height	115 mm
Package weight	900 g

Packaging content

Specification	Value
Number of cameras	1
Cables included	AC, LAN (RJ-45)
Mounting kit	Yes
Quick start guide	Yes

Logistics data

Specification	Value
Master (outer) cases per pallet (air)	30 pc(s)
Master (outer) cases per pallet (sea)	48 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	316 kg
Pallet gross weight (sea)	492.4 kg
Pallet gross width	120 cm
Pallet height (air)	132.5 cm
Pallet height (sea)	2.04 m
Products per pallet (air)	300 pc(s)
Products per pallet (sea)	480 pc(s)
Shipping (inner) case gross weight	9.8 kg
Shipping (inner) case height	23.8 cm
Shipping (inner) case length	61 cm
Shipping (inner) case net weight	9 kg
Shipping (inner) case width	29.4 cm
Products per shipping (inner) case	10 pc(s)
