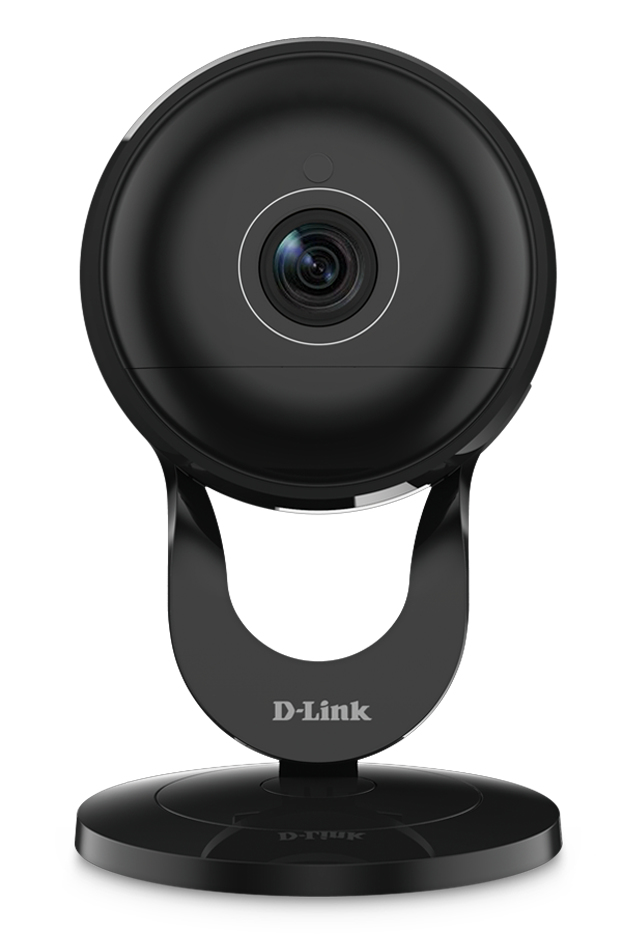

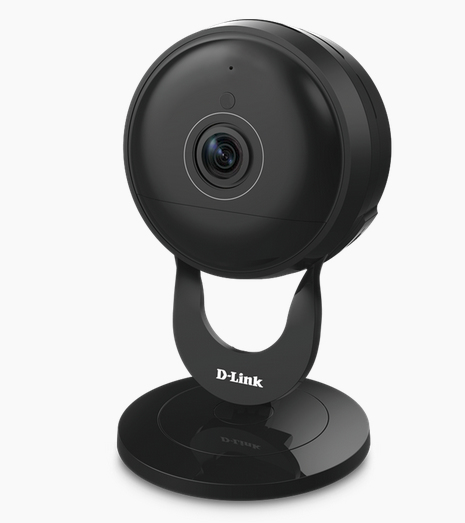

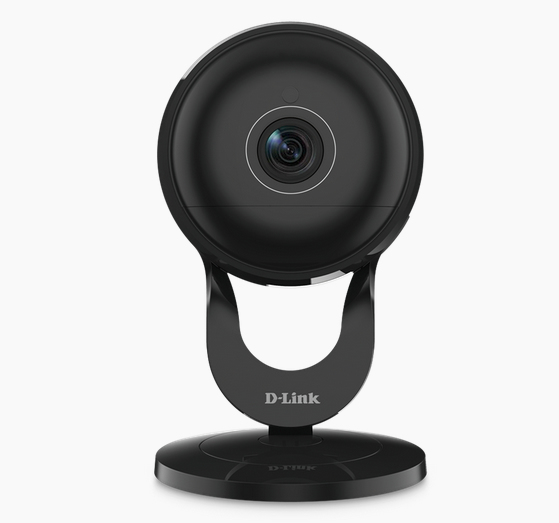

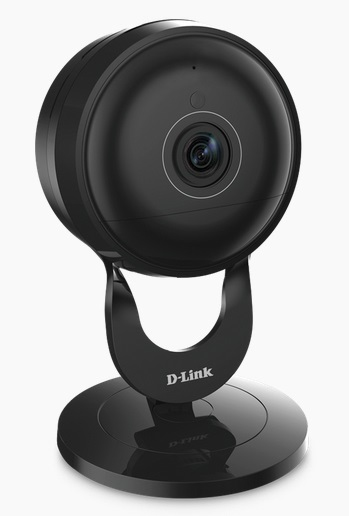

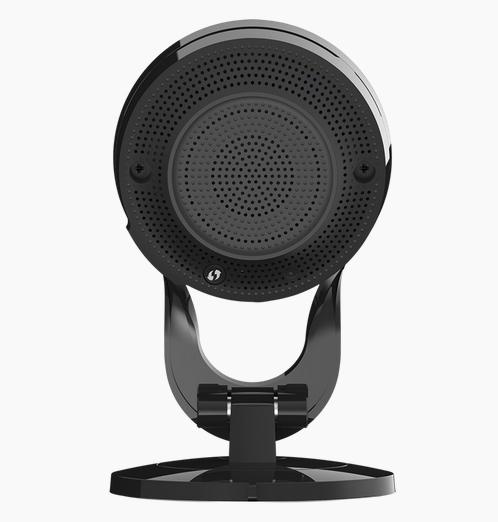

D-Link DCS-2630L security camera Cube IP security camera Indoor

1920 x 1080 pixels Wall

Model DCS-2630LEAN 767872767720

69 specifications

ConnectivityWireless
TypeIP security camera
Weight344.7302 g
ColourBlack
Form factorCube
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wireless
Type: IP security camera
Weight: 344.7302 g
Colour: Black
Form factor: Cube
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2630L
Part number: DCS-2630L
EAN / UPC: 767872767720, 790069418341, 790069422393
Also known as: D-Link DCS-2630L security camera Cube IP security camera Indoor 1920 x 1080 pixels Wall

Specifications

69 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Day/night mode	Yes
Certification	CE, CE LVD, FCC Class B, ICES

Design

Specification	Value
Form factor	Cube
Mounting type	Wall
Product colour	Black
LED indicators	Power, Status

Camera

Specification	Value
Minimum illumination	0 lx
Field of view (FOV) angle	180°
Lens viewing angle, horizontal	182°
Lens viewing angle, vertical	112°
Lens viewing angle, diagonal	182°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	8x
Maximum aperture number	2
Fixed focal length	1.72 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	3.6576 m
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	3 MP
Video formats supported	H.264, M-JPEG
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 176, 640 x 352, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes	720p, 1080p
Frame rate	30 fps
Flip & mirror	Yes
Full HD	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio system	2-way
Audio system full duplex	Yes
Audio formats supported	AAC, ADPCM, PCM
Built-in microphone	Yes
Audio detection	Yes

Network

Specification	Value
Wi-Fi	Yes
Supported network protocols	IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP Server, Samba Client, PPPoE, UPnP port forwarding, LLTD, HTTPs for configuration, Bonjour
Wi-Fi standards	Wi-Fi 5 (802.11ac)

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Security

Specification	Value
Password protection type	Supervisor, User
HTTPS encryption	Yes
Light sensor	Yes
Motion sensor	Yes
Security algorithms	HTTPS

Management features

Specification	Value
Reset button	Yes
WPS push button	Yes

Power

Specification	Value
DC output voltage	5
DC output current	1.5 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Mobile operating systems supported	Android 2.1, Android 2.2, Android 2.3, Android 3.0, Android 3.1, Android 3.2, Android 4.0, Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 6.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3

Weight & dimensions

Specification	Value
Width	85.6 mm
Depth	85.6 mm
Height	140.5 mm
Weight	344.7302 g

Packaging content

Specification	Value
Number of cameras	1
Mounting kit	Yes
Quick installation guide	Yes

Other features

Specification	Value
USB connectivity	Yes
